Engine Control Module (Diesel) Connector End View (C2)

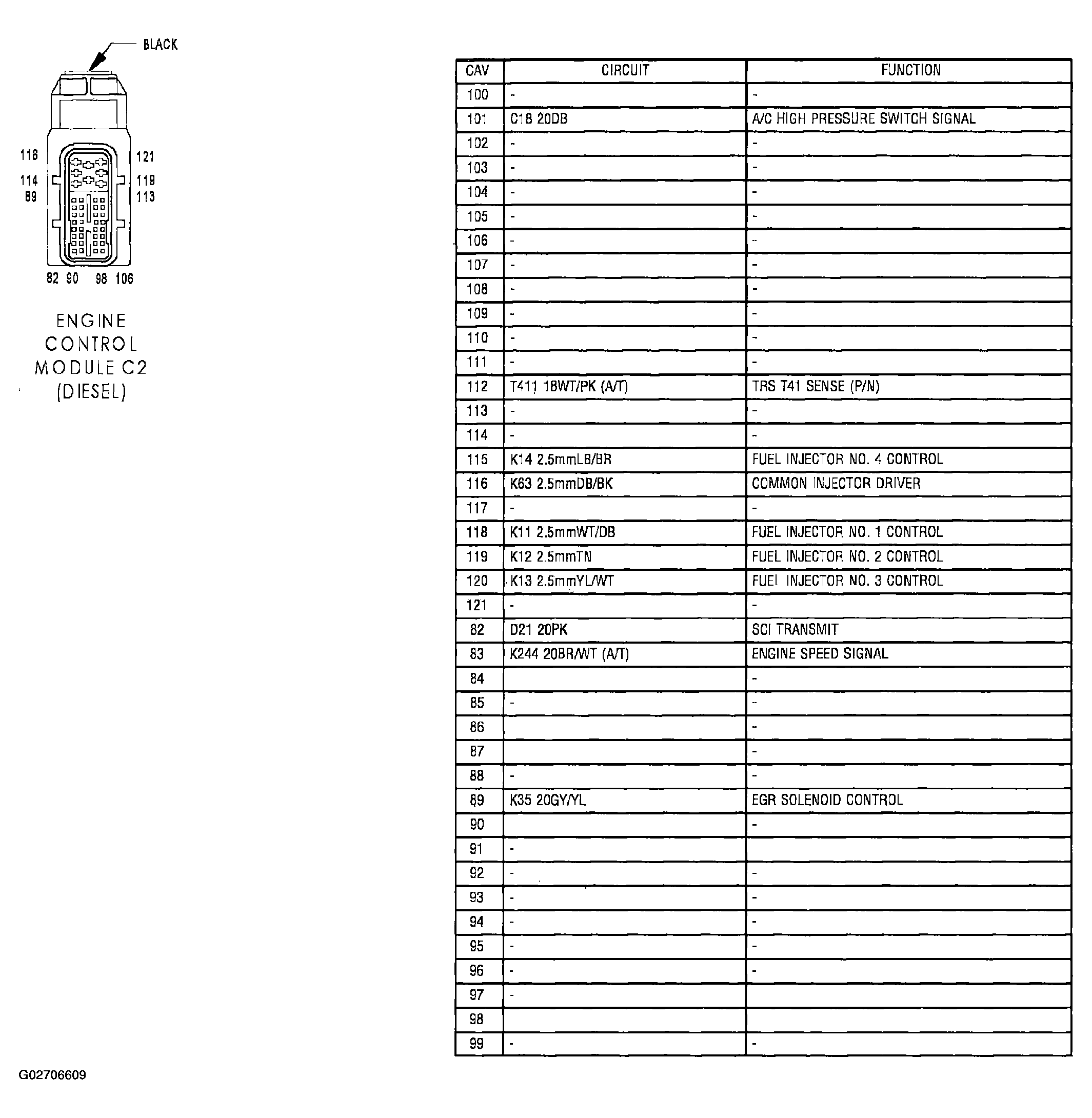

Fig 1: Engine Control Module (Diesel) Connector End View (C2)
G02706609Courtesy of DAIMLERCHRYSLER CORP.
