Liberty Limited, 4WD, Part Time, 42RLE
›
Repair and Diagnosis
›
Electrical
›
Body Electrical
›
Connector End Views
›
Connector Pin-Outs
›
Fuel Pump Module Connector End View
Fuel Pump Module Connector End View

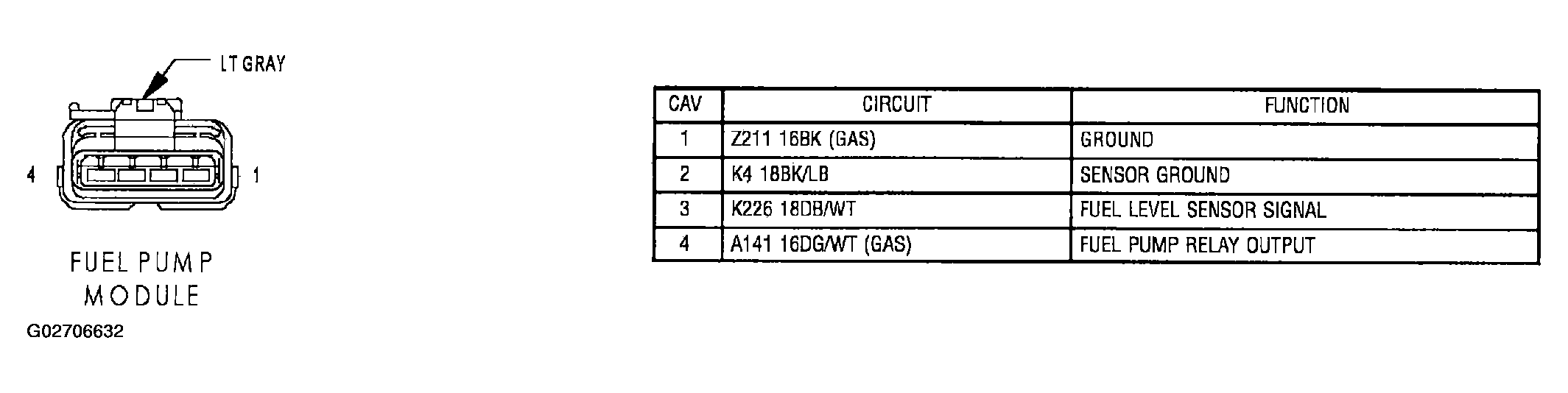

Fig 1: Fuel Pump Module Connector End View
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
