Intrusion Transceiver Module (Export) Connector End View
Intrusion Transceiver Module (Export) Connector End View

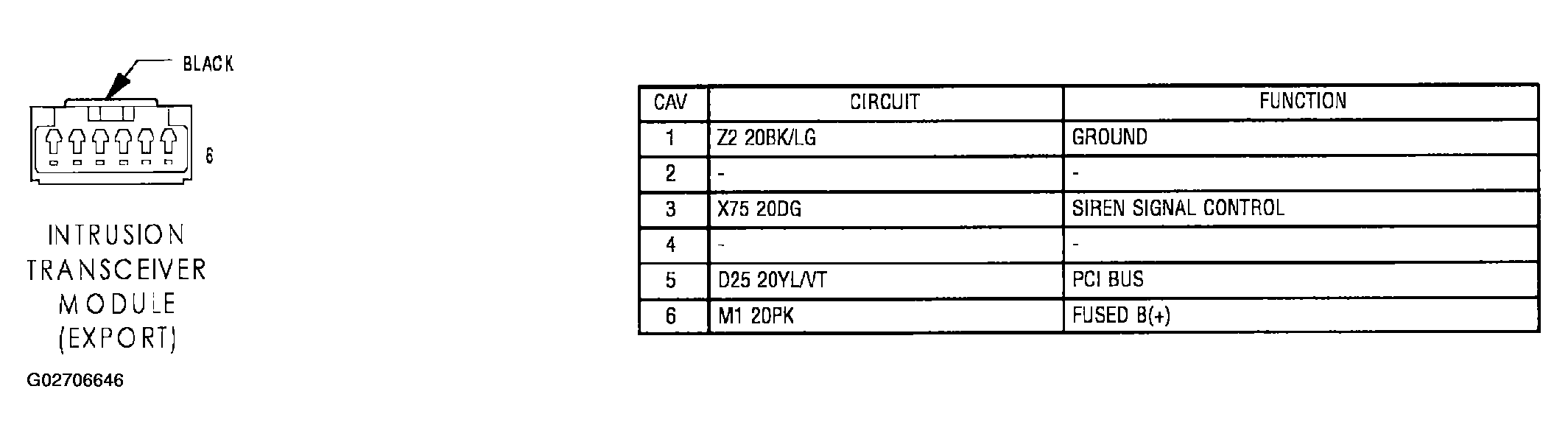

Fig 1: Intrusion Transceiver Module (Export) Connector End View
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
