Left Side Impact Airbag Control Module Connector End View
Left Side Impact Airbag Control Module Connector End View

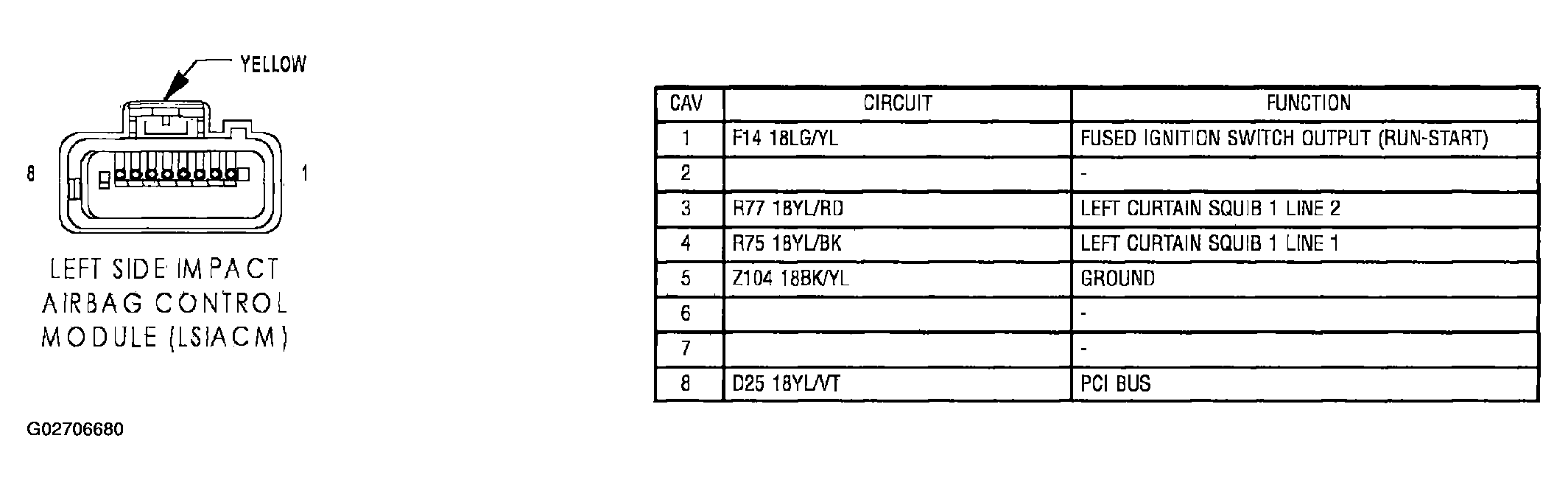

Fig 1: Left Side Impact Airbag Control Module Connector End View
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
