ORC Airbag Control Module Connector End View (C2)

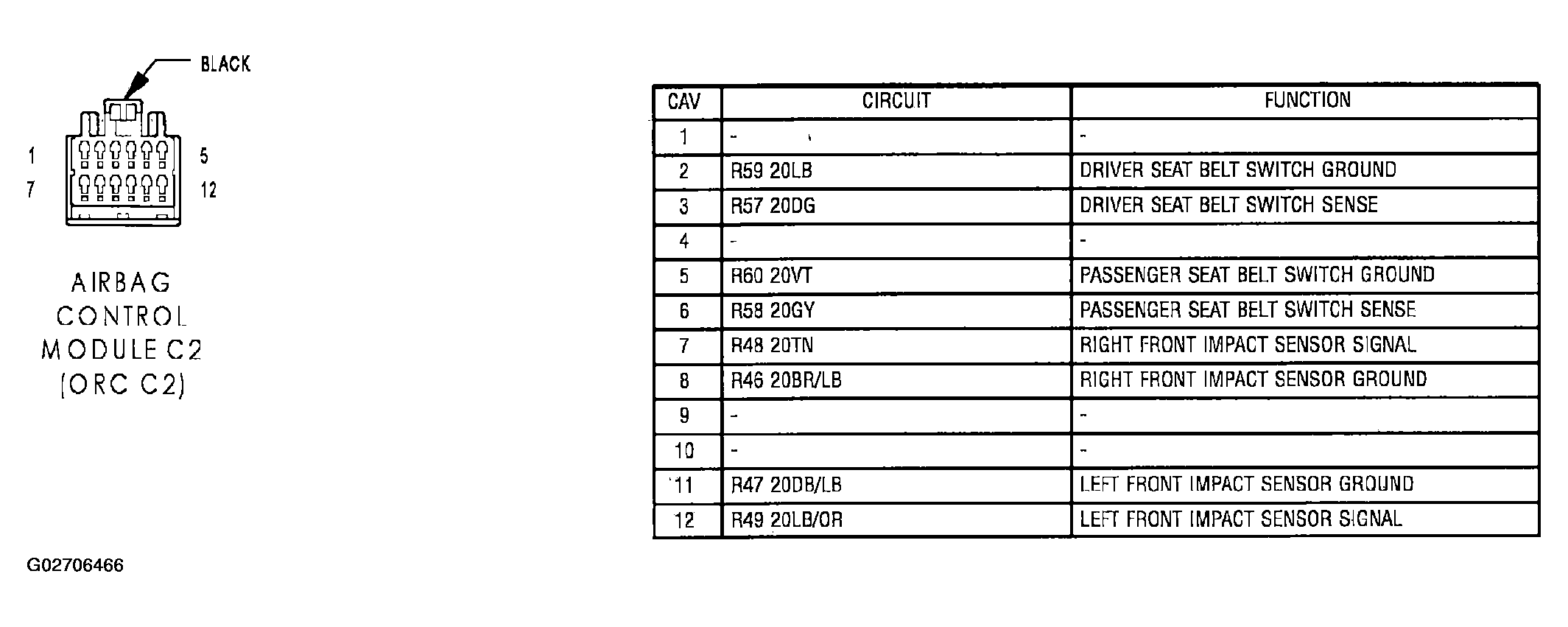

Fig 1: ORC Airbag Control Module Connector End View (C2)
G02706466Courtesy of DAIMLERCHRYSLER CORP.
