Powertrain Control Module (2.4L) Connector End View (C1)

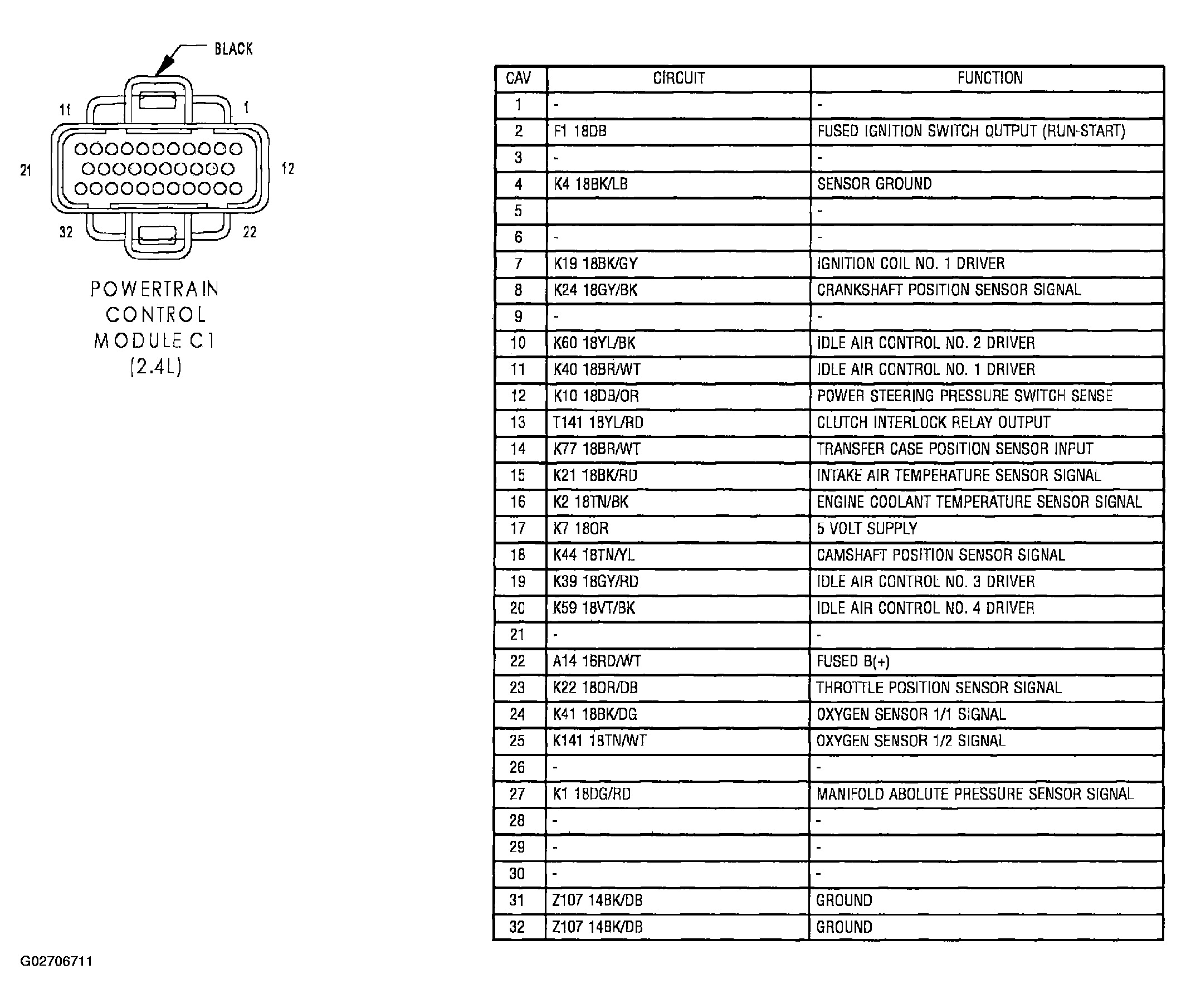

Fig 1: Powertrain Control Module (2.4L) Connector End View (C1)
G02706711Courtesy of DAIMLERCHRYSLER CORP.
