Powertrain Control Module (3.7L) Connector End View (C1)

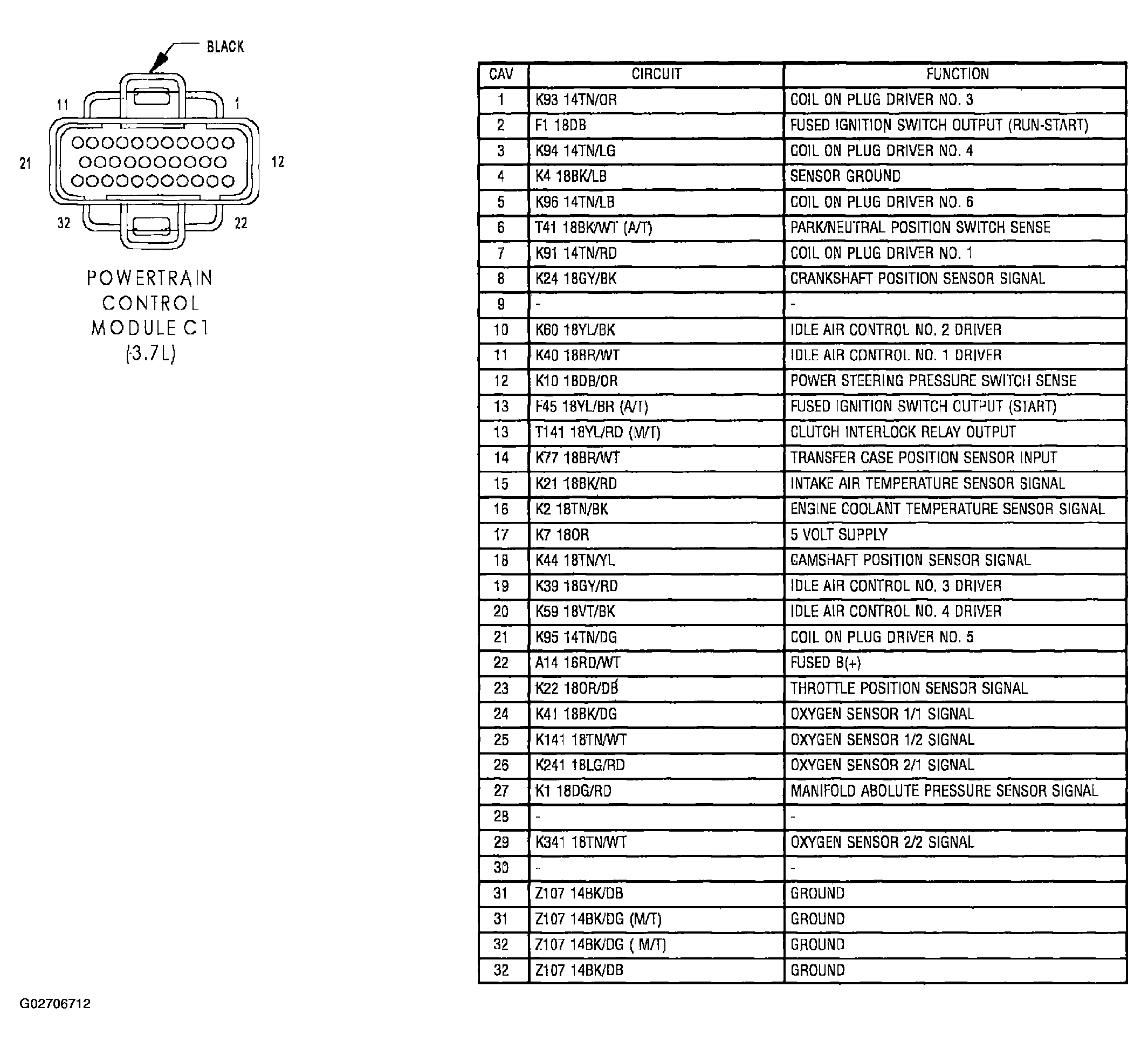

Fig 1: Powertrain Control Module (3.7L) Connector End View (C1)
G02706712Courtesy of DAIMLERCHRYSLER CORP.
