Powertrain Control Module (Gas) Connector End View (C2)

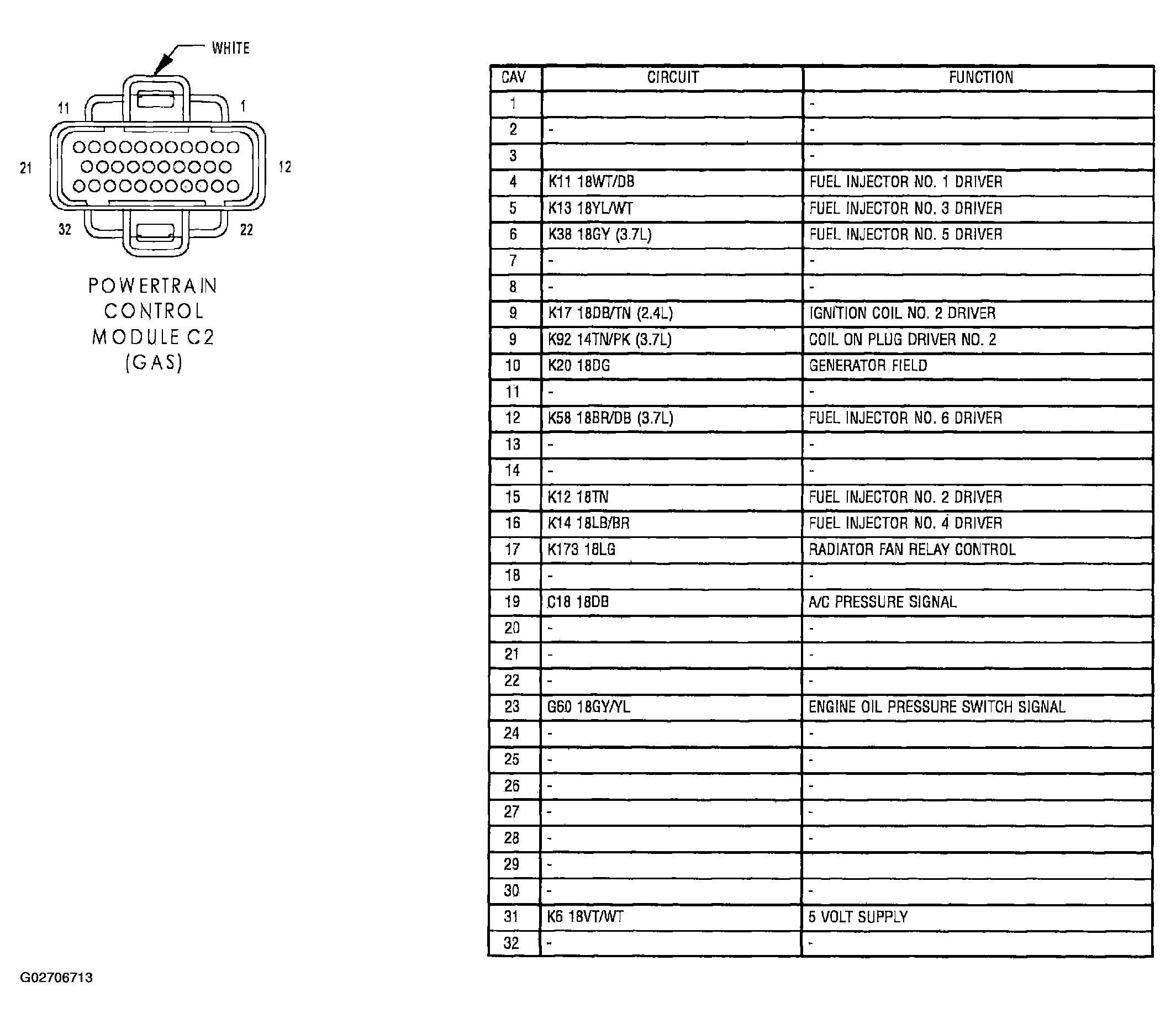

Fig 1: Powertrain Control Module (Gas) Connector End View (C2)
G02706713Courtesy of DAIMLERCHRYSLER CORP.
