Powertrain Control Module (Gas) Connector End View (C3)

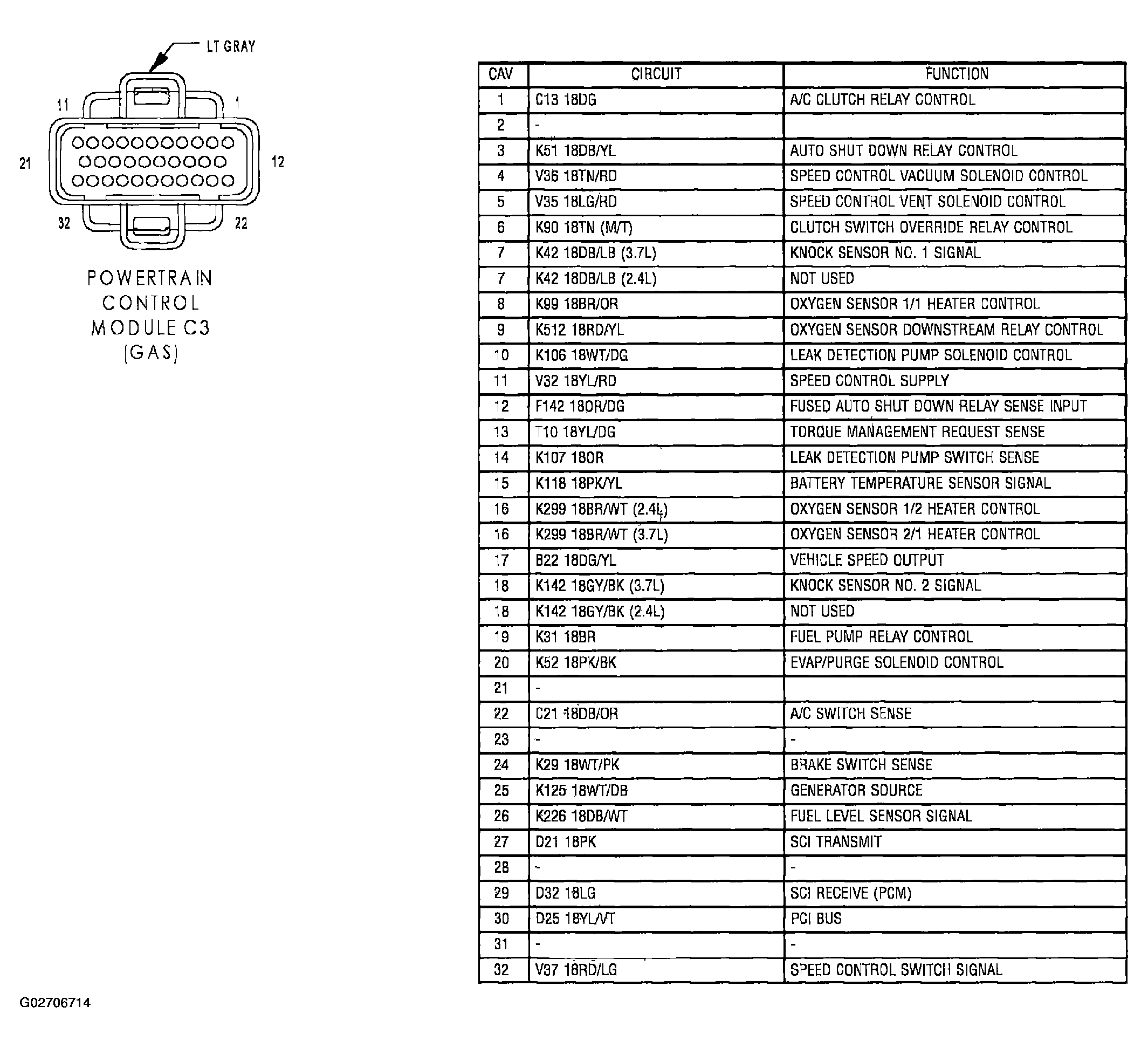

Fig 1: Powertrain Control Module (Gas) Connector End View (C3)
G02706714Courtesy of DAIMLERCHRYSLER CORP.
