Sentry Key Immobilizer Module (Except Base) Connector End View

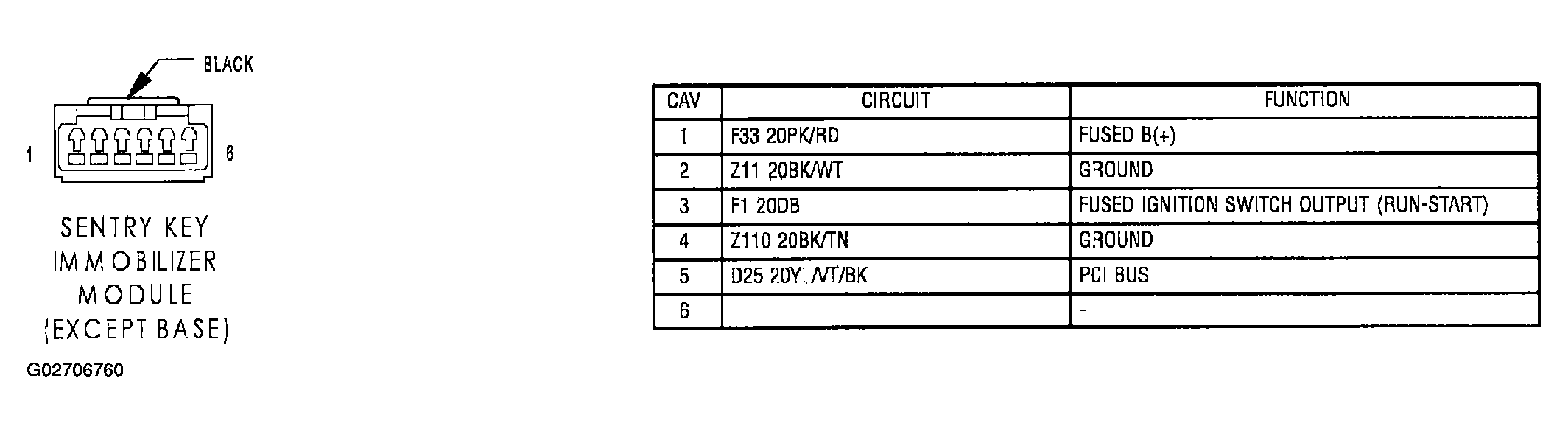

Fig 1: Sentry Key Immobilizer Module (Except Base) Connector End View
G02706760Courtesy of DAIMLERCHRYSLER CORP.
