Speed Control Servo Connector End View
Speed Control Servo Connector End View

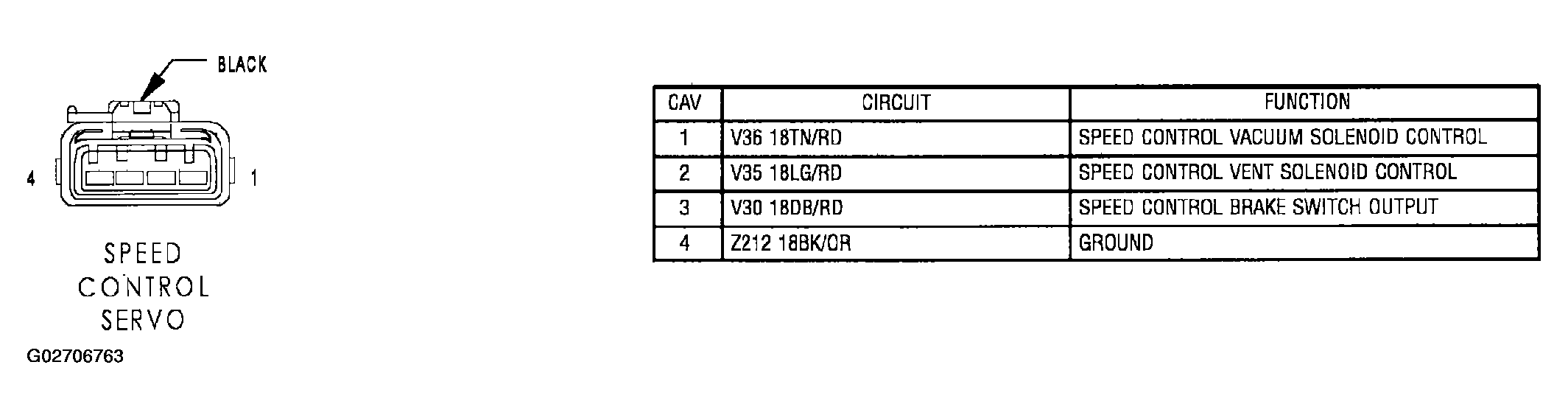

Fig 1: Speed Control Servo Connector End View
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
