BCM Harness Connector End View

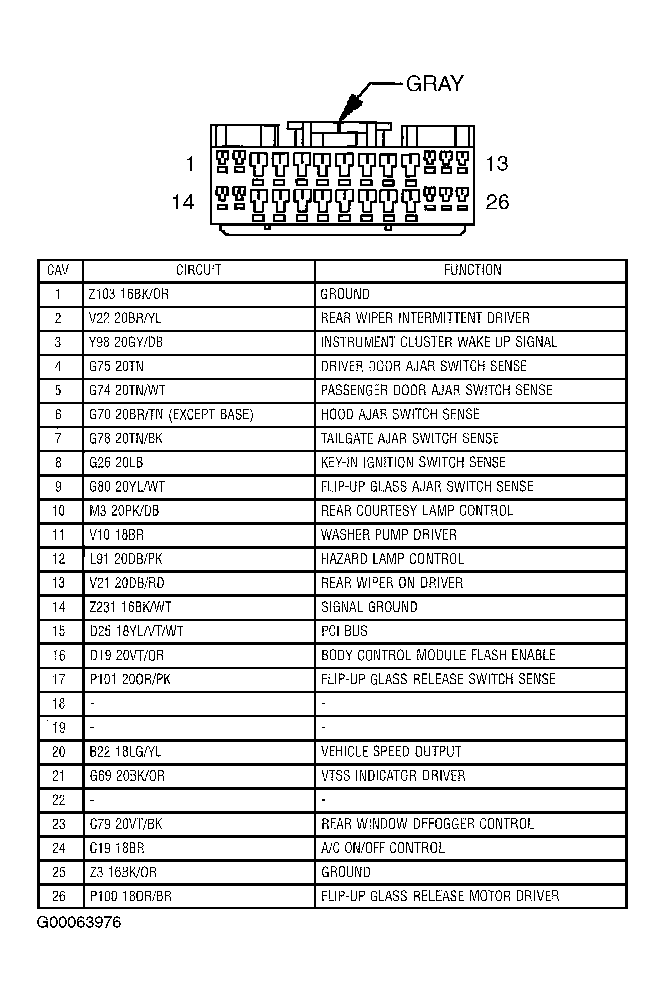

Fig 1: Identifying BCM C1 Harness Connector
G00063976Courtesy of DAIMLERCHRYSLER CORPORATION
