Connector Identification
›
Brake Lamp Switch Harness Connector End View
Brake Lamp Switch Harness Connector End View

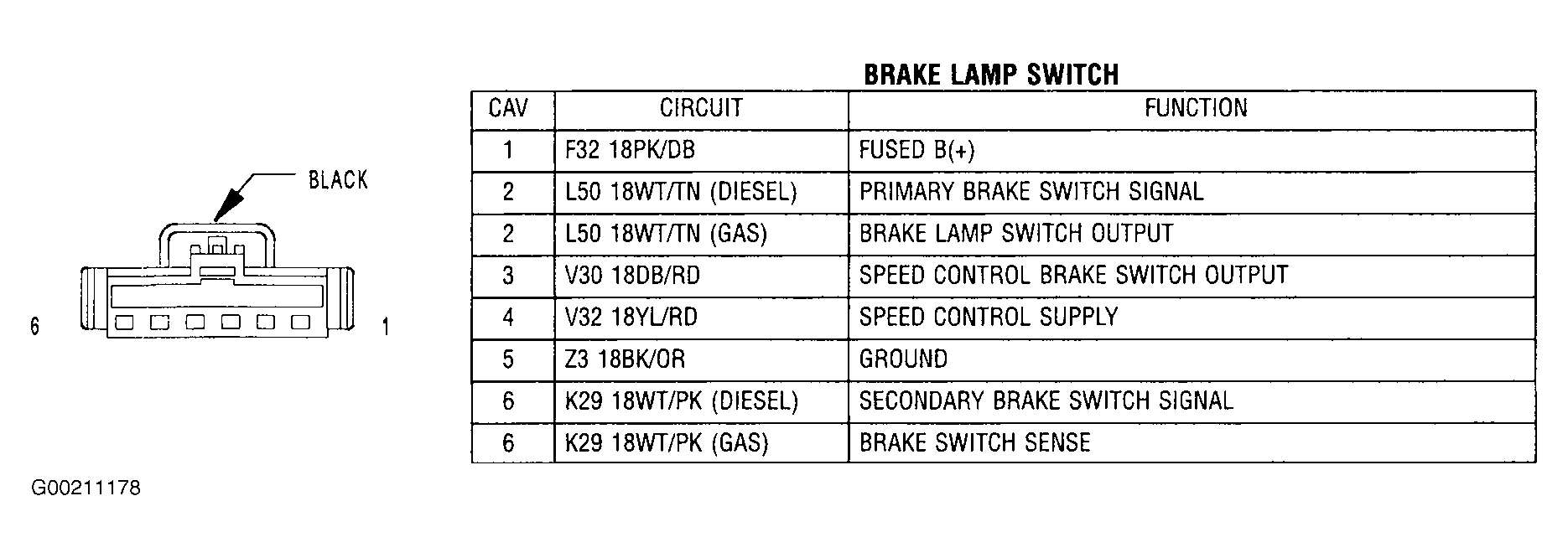

Fig 1: Identifying Brake Lamp Switch Harness Connector
Courtesy of CHRYSLER CORP.
Courtesy of CHRYSLER CORP.
