Jeep
›
2003
›
Liberty Limited, 4WD, Part Time, 42RLE
›
Repair and Diagnosis
›
Engine Performance
›
System
›
Engine Controls - Self-Diagnostics
›
Connector Identification
›
Pcm Harness Connector End View
Pcm Harness Connector End View

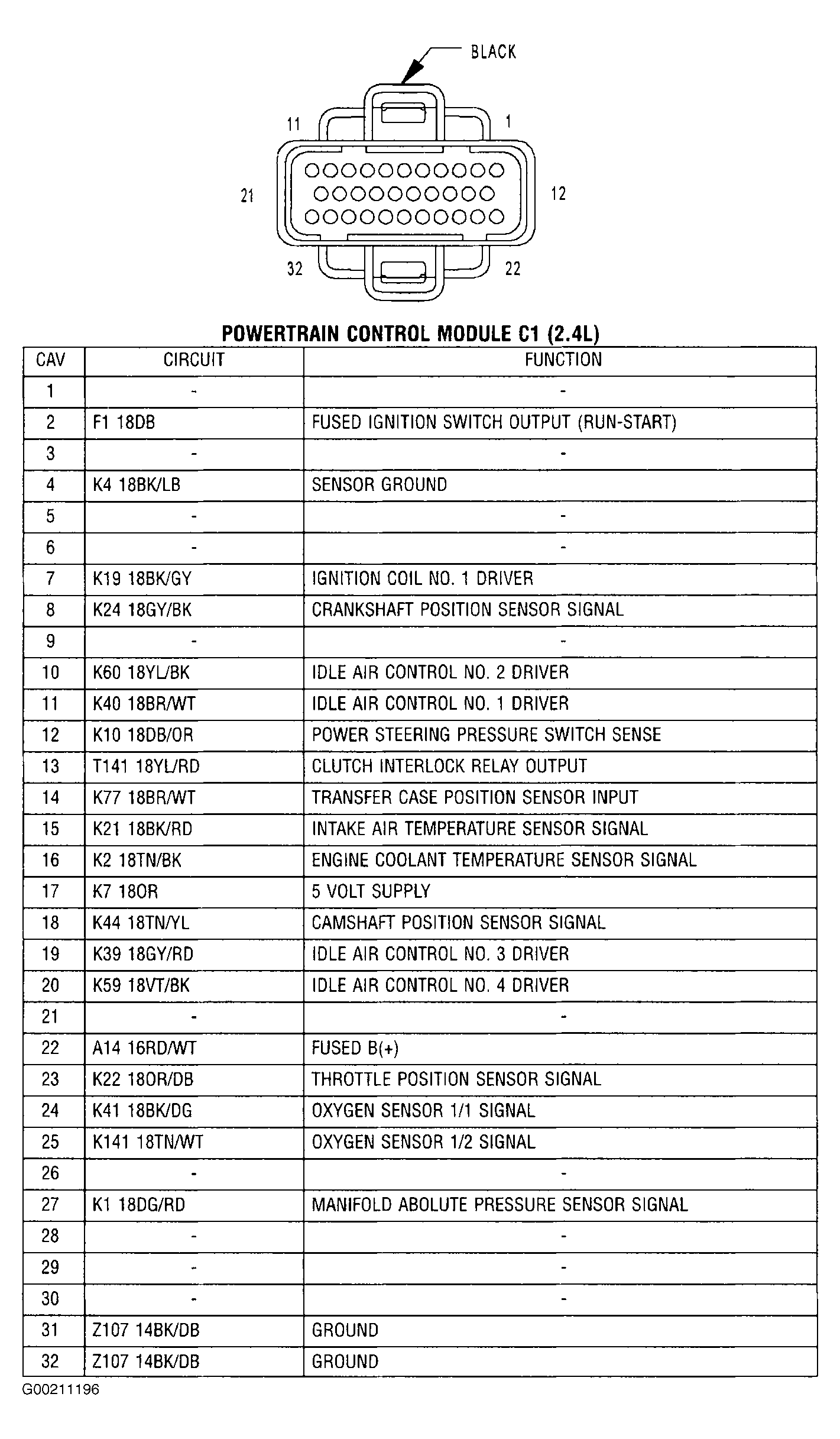

Fig 1: Identifying PCM C1 (2.4L) Harness Connector
Courtesy of CHRYSLER CORP.

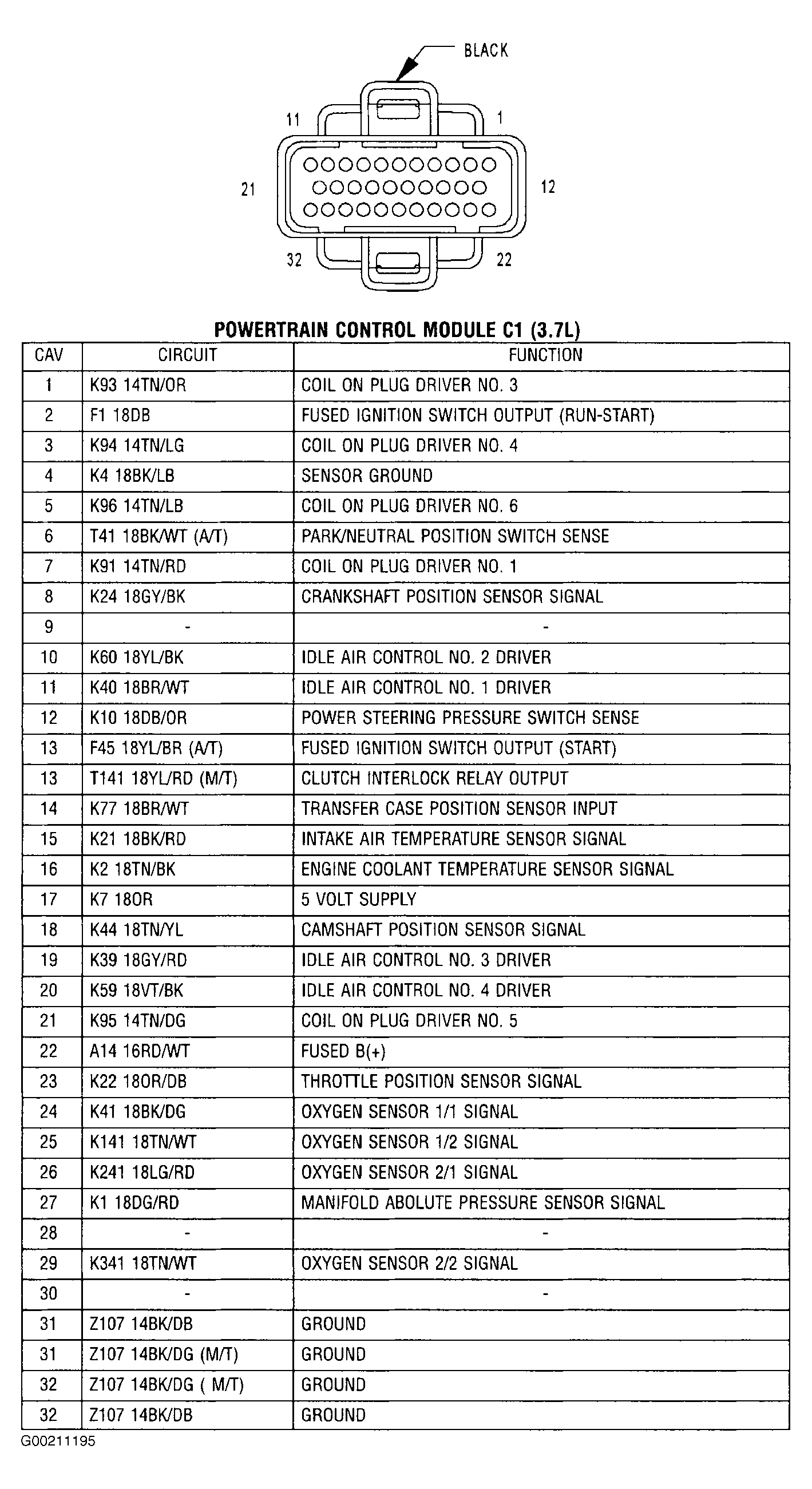

Fig 2: Identifying PCM C1 (3.7L) Harness Connector
Courtesy of CHRYSLER CORP.
Fig 3: Identifying PCM C2 Harness Connector
Courtesy of DAIMLERCHRYSLER CORPORATION

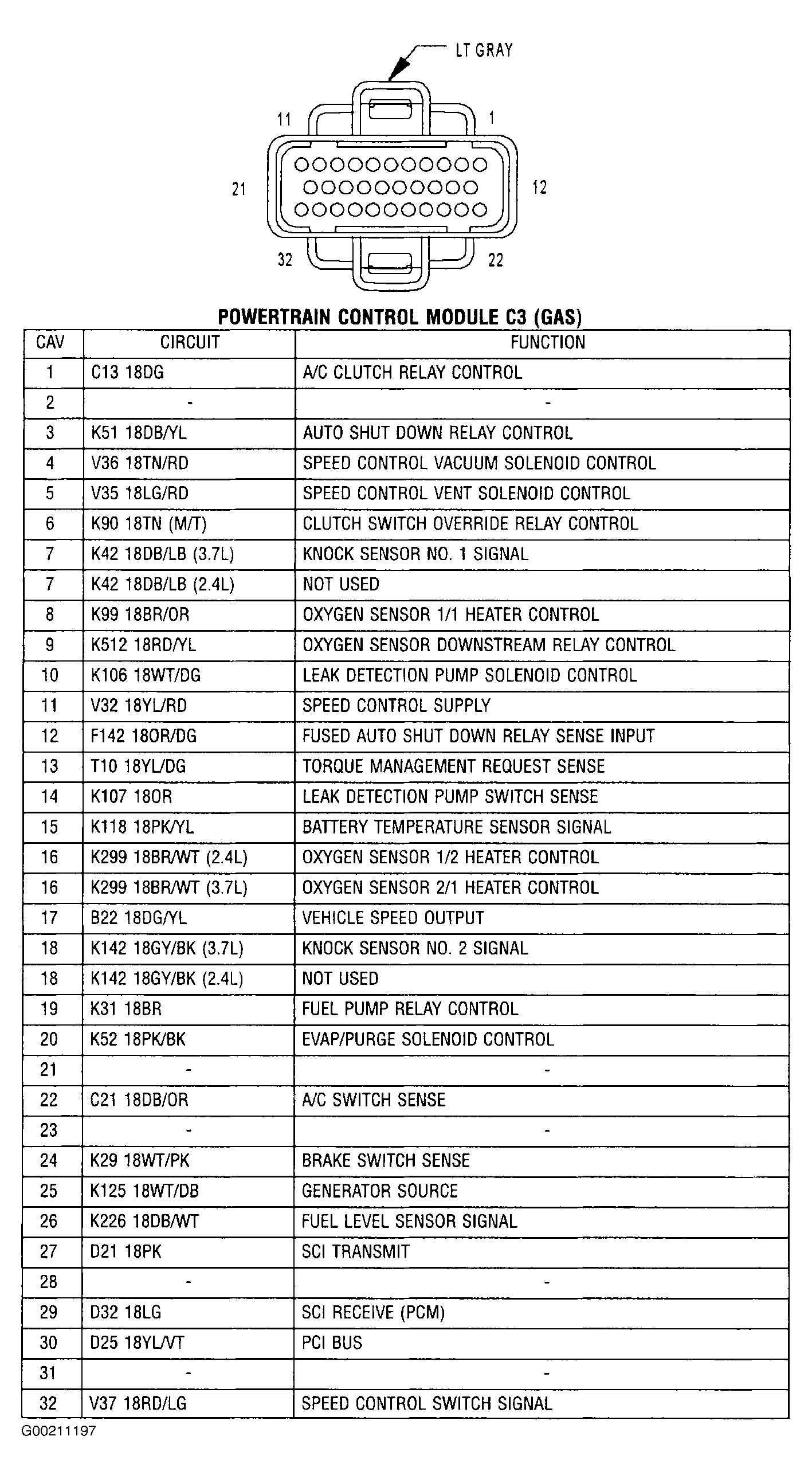

Fig 4: Identifying PCM C3 Harness Connector
Courtesy of CHRYSLER CORP.
Courtesy of CHRYSLER CORP.
Courtesy of CHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORPORATION
Courtesy of CHRYSLER CORP.
