Jeep
›
2003
›
Liberty Limited, 4WD, Part Time, 42RLE
›
Repair and Diagnosis
›
Engine Performance
›
System
›
Engine Controls - Self-Diagnostics
›
Connector Identification
›
Rear Wheel Speed Sensor Harness Connector End View
Rear Wheel Speed Sensor Harness Connector End View

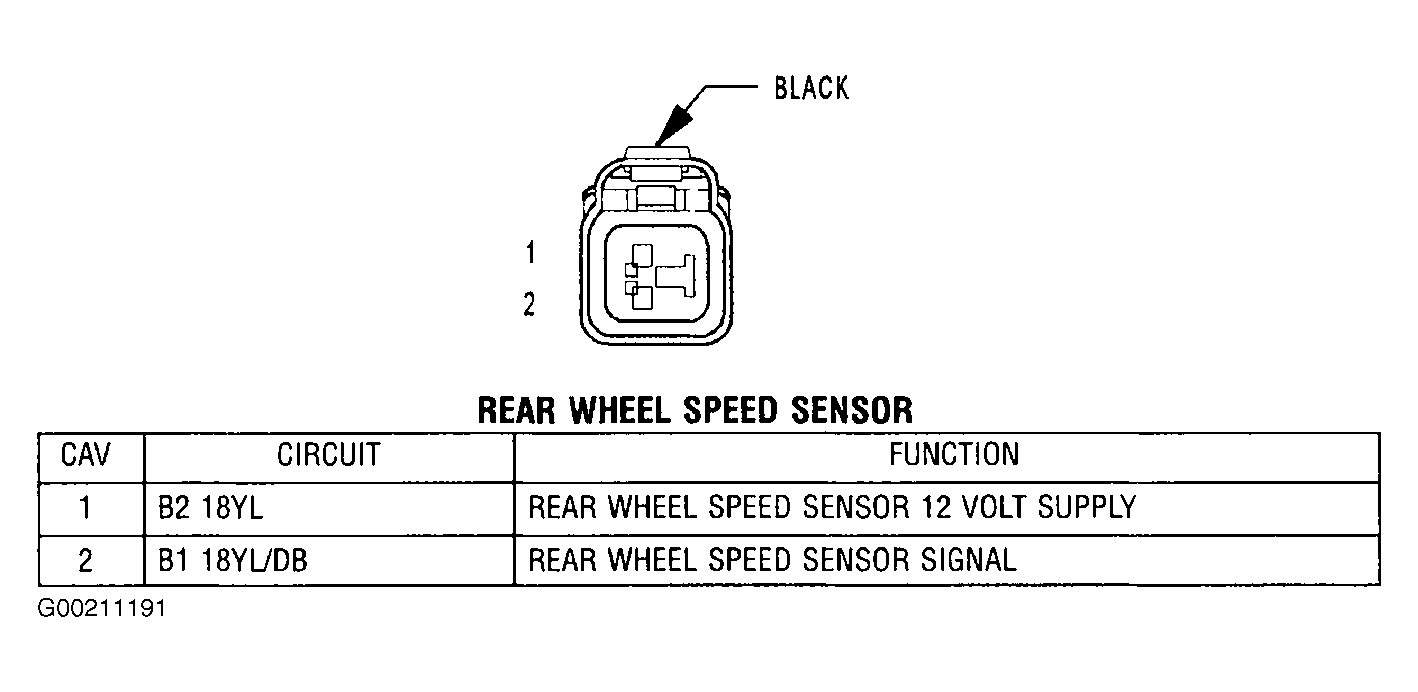

Fig 1: Identifying Rear Wheel Speed Sensor Harness Connector
Courtesy of CHRYSLER CORP.
Courtesy of CHRYSLER CORP.
