Trailer Tow Brake Lamp Relay Connector End View
Trailer Tow Brake Lamp Relay Connector End View

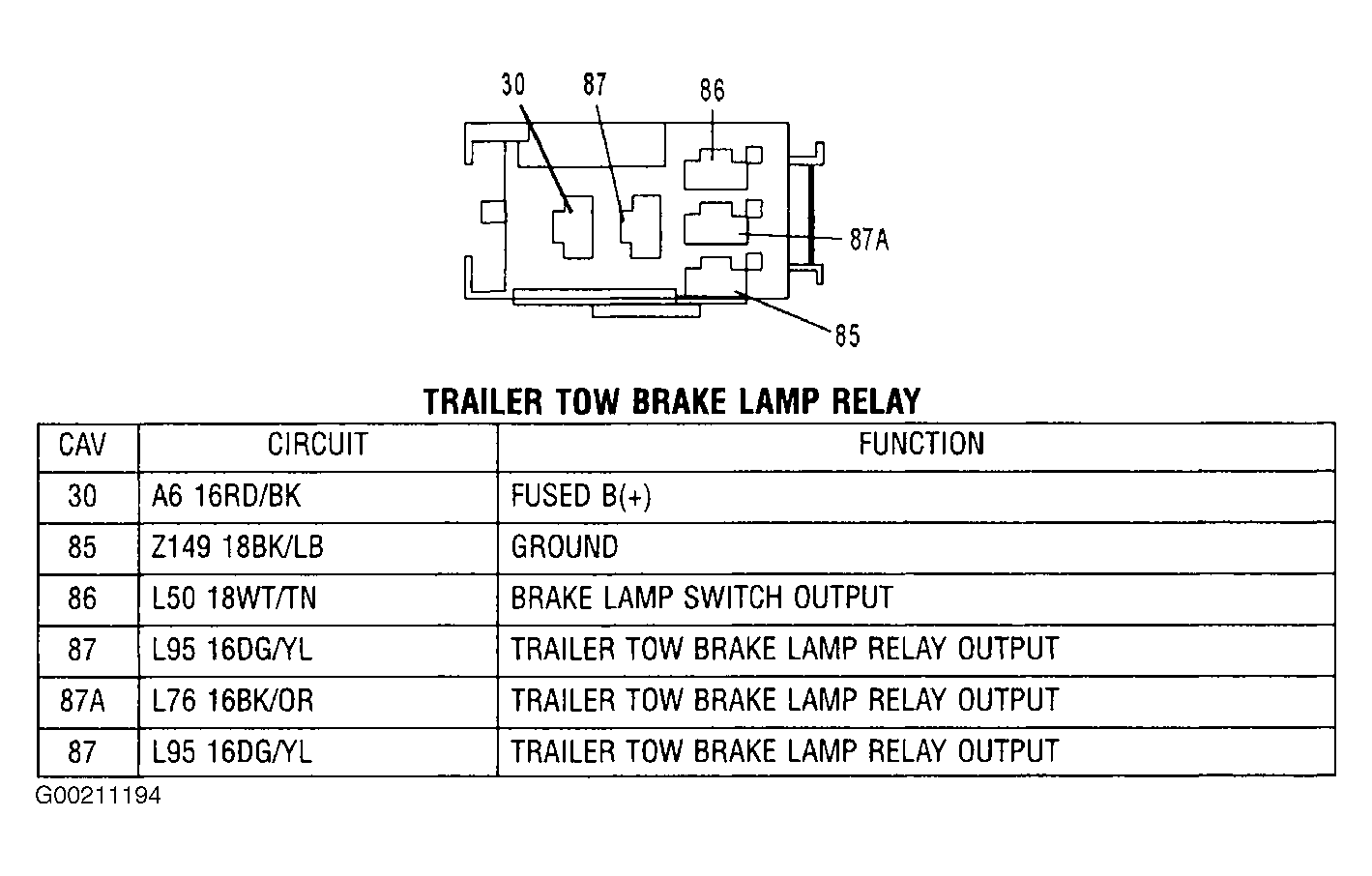

Fig 1: Identifying Trailer Tow Brake Lamp Relay
Courtesy of CHRYSLER CORP.
Courtesy of CHRYSLER CORP.
