ORC Airbag Control Module Connector End View (C1)

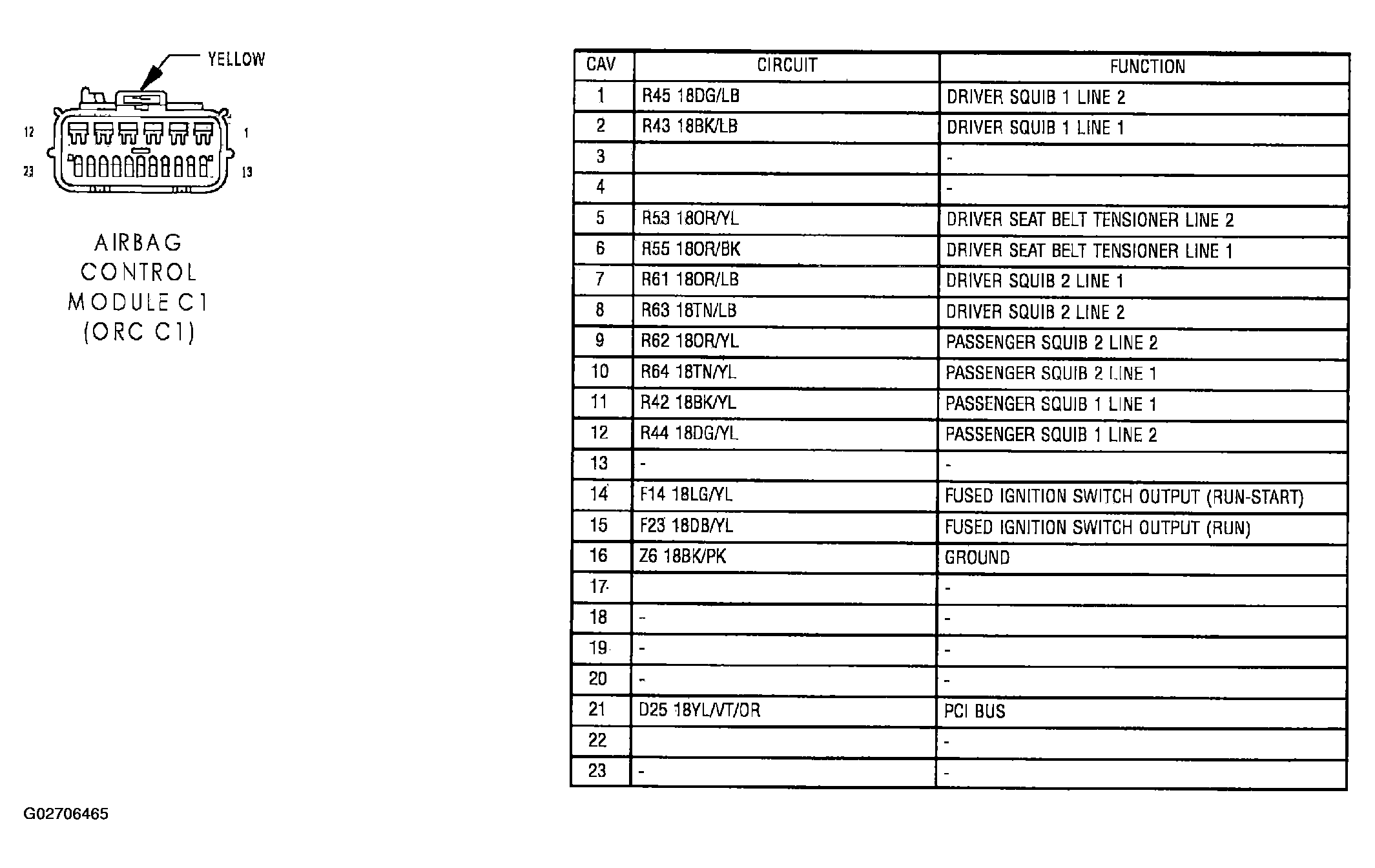

Fig 1: ORC Airbag Control Module Connector End View (C1)
G02706465Courtesy of DAIMLERCHRYSLER CORP.
