Window Switch: Removal: Front
Disconnect and isolate the battery negative cable.
Using a trim stick, gently pry the switch from the console (
Fig 1
).
Disconnect electrical harness connector.

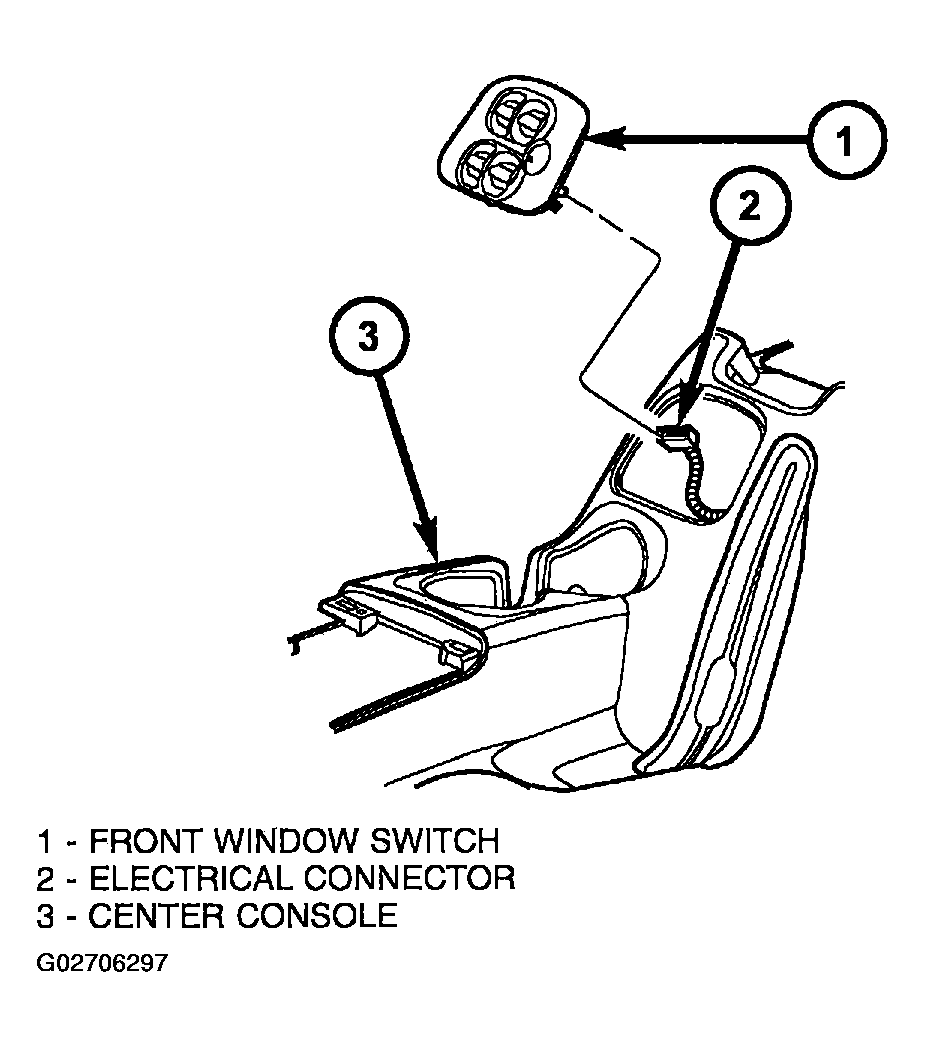

Fig 1: Identifying Front Window Switch
Courtesy of DAIMLERCHRYSLER CORP.
