Engine Controls - Self-Diagnostics
›
Component Locations
›
Ignition Coil Assembly Location (4.0L)
Ignition Coil Assembly Location (4.0L)

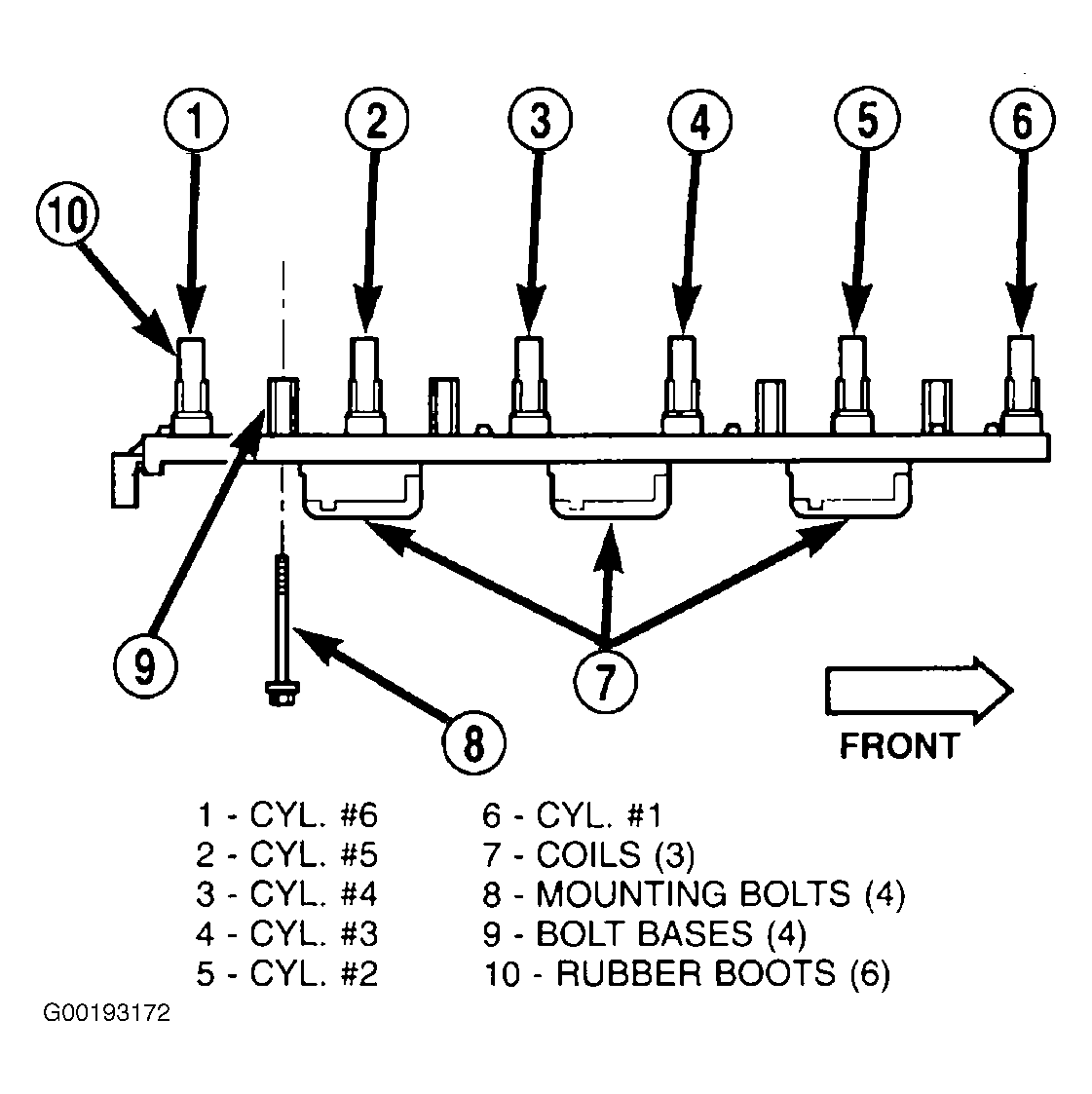

Fig 1: Identifying Ignition Coil Assembly (4.0L)
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
