Connector Identification
›
Power Distribution Center Fuses & Fuse Circuit Identification
Power Distribution Center Fuses & Fuse Circuit Identification

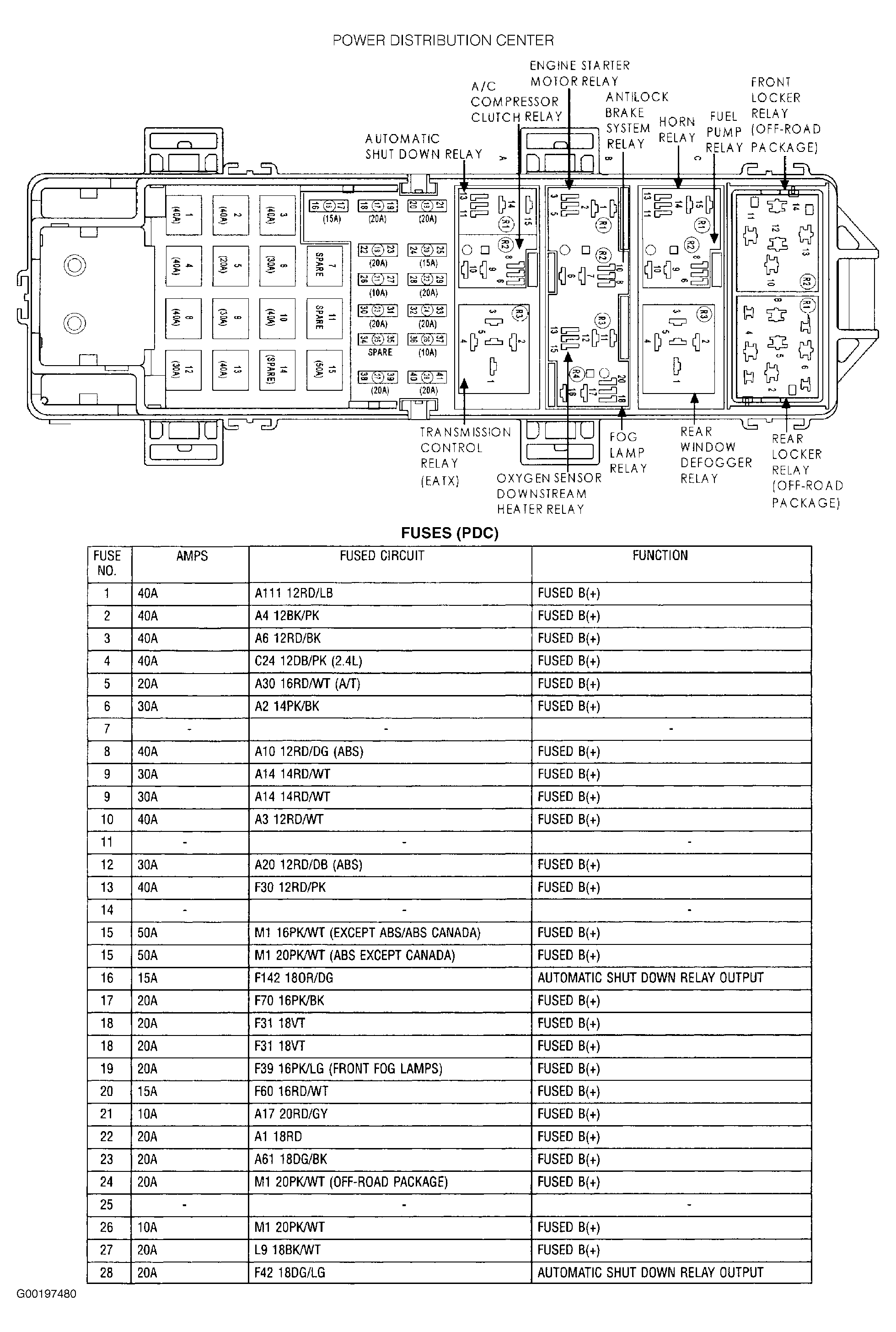

Fig 1: Identifying Power Distribution Center Fuses & Fuse Circuits
Courtesy of CHRYSLER CORP.
Courtesy of CHRYSLER CORP.
