Overdrive Off Switch Connector End View
Overdrive Off Switch Connector End View

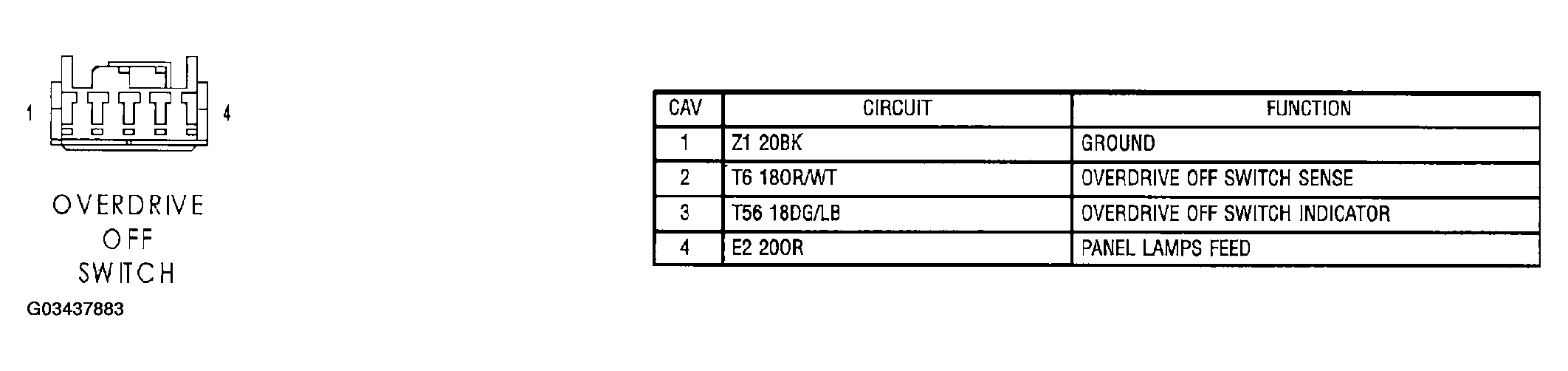

Fig 1: Overdrive Off Switch Connector End View
Courtesy of DAIMLERCHRYSLER CORP.
