Wrangler SE, Automatic
›
Repair and Diagnosis
›
Engine Performance
›
System
›
Engine Controls - Self-Diagnostics
›
Connector Identification
›
Powertrain Control Module CONNECTOR END VIEW
Powertrain Control Module CONNECTOR END VIEW

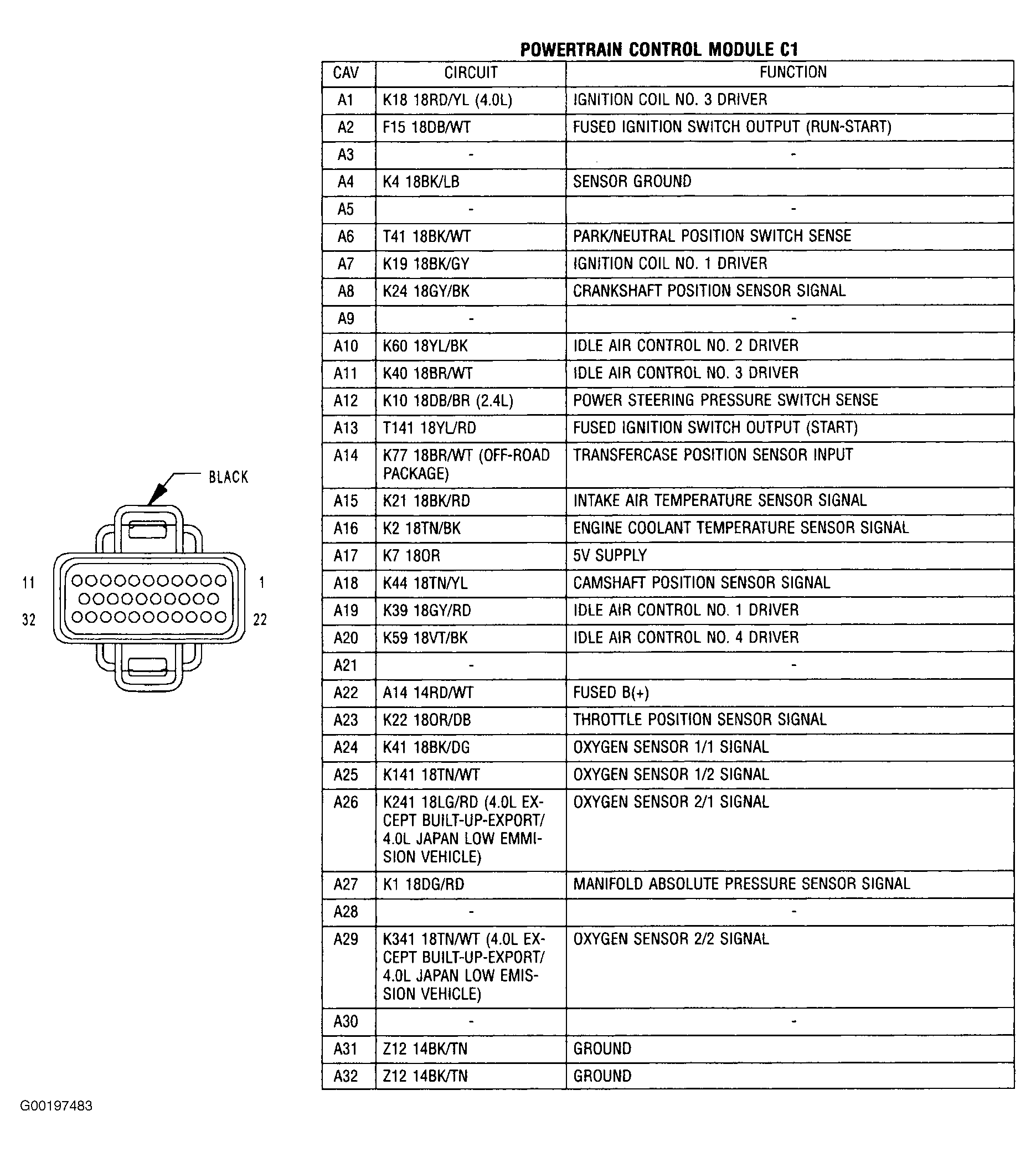

Fig 1: Identifying Powertrain Control Module C1 Harness Connector
Courtesy of CHRYSLER CORP.

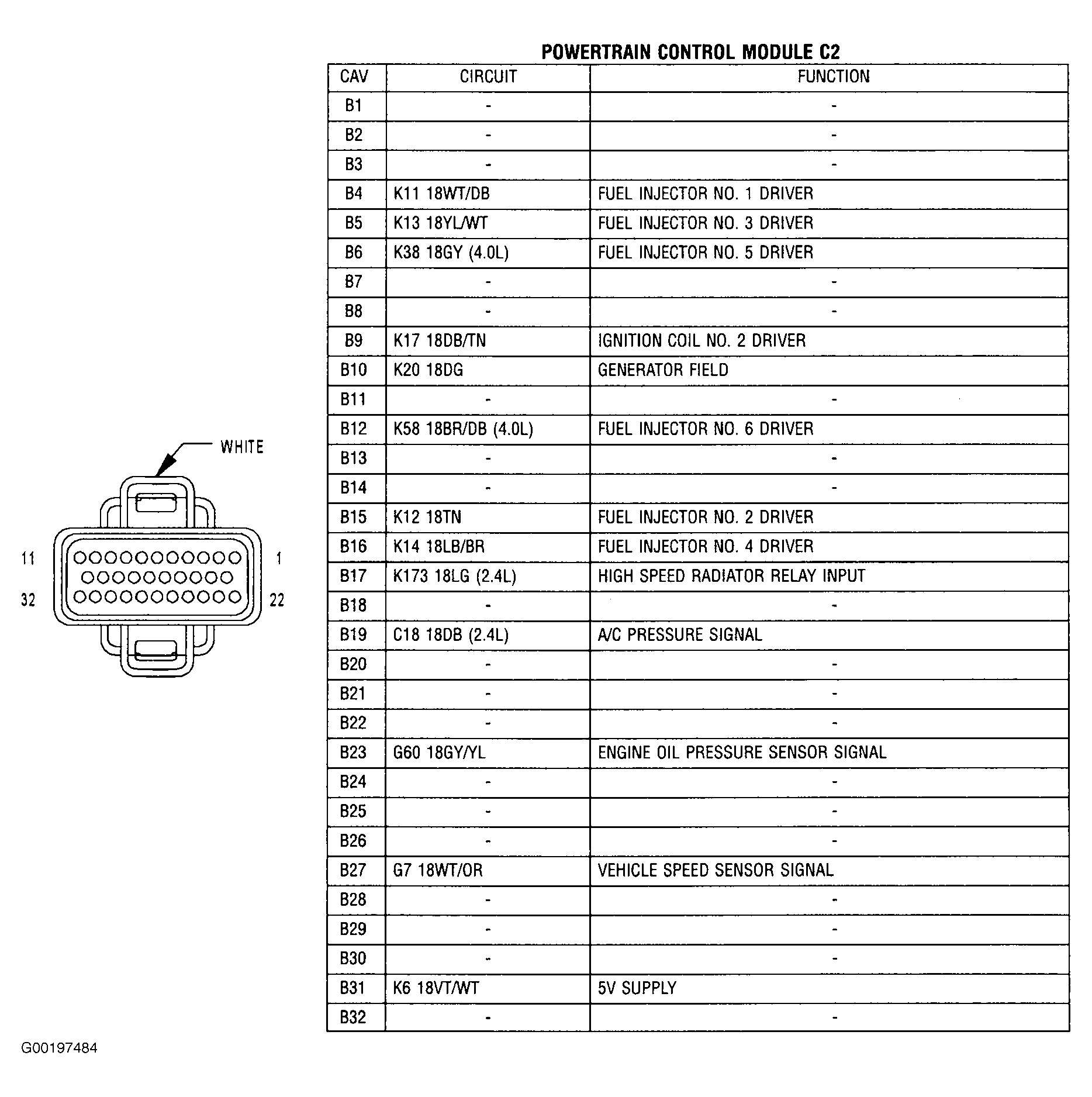

Fig 2: Identifying Powertrain Control Module C2 Harness Connector
Courtesy of CHRYSLER CORP.

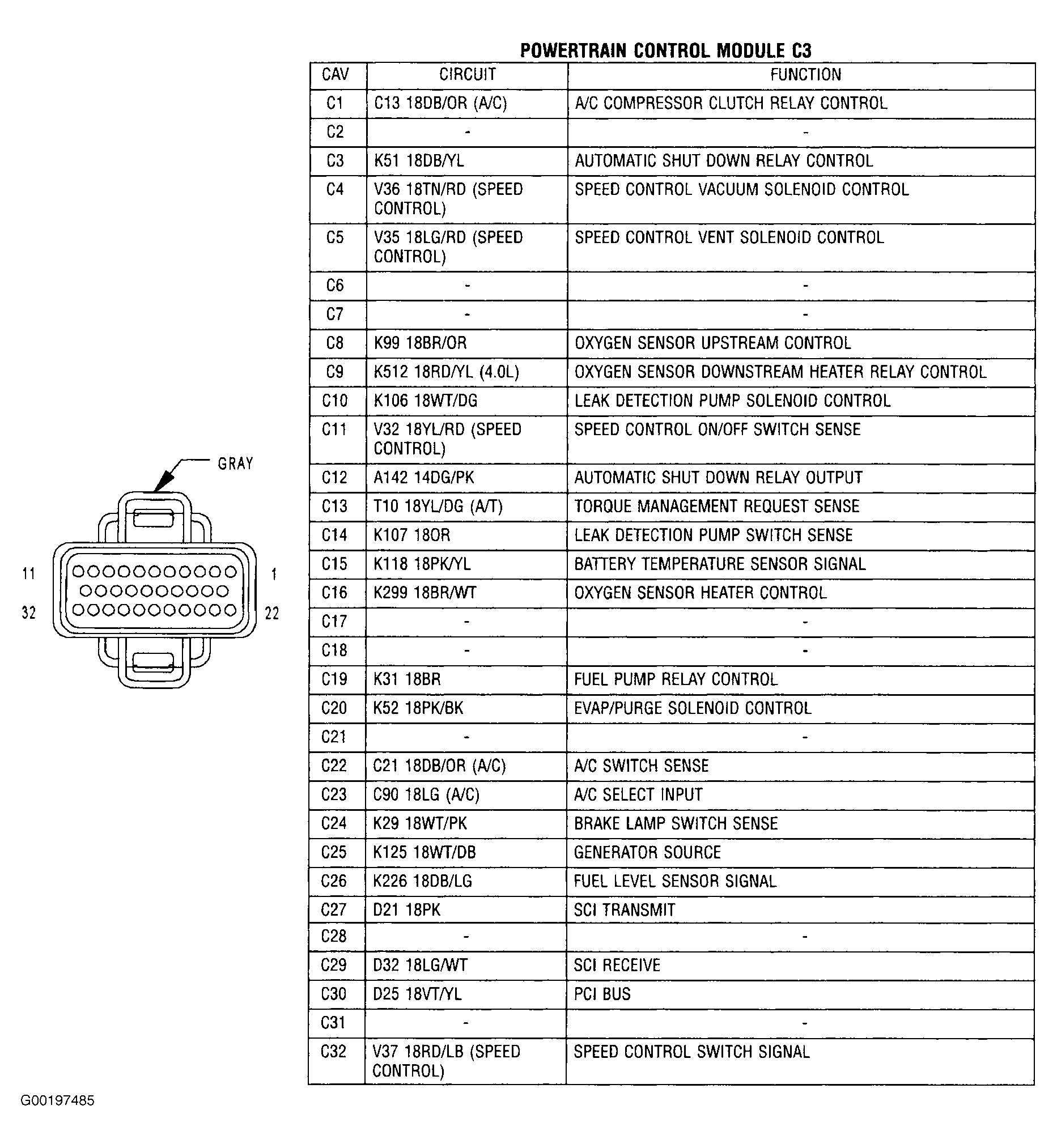

Fig 3: Identifying Powertrain Control Module C3 Harness Connector
Courtesy of CHRYSLER CORP.
Courtesy of CHRYSLER CORP.
Courtesy of CHRYSLER CORP.
Courtesy of CHRYSLER CORP.
