A/C Compressor Clutch Harness Connector End View
A/C Compressor Clutch Harness Connector End View

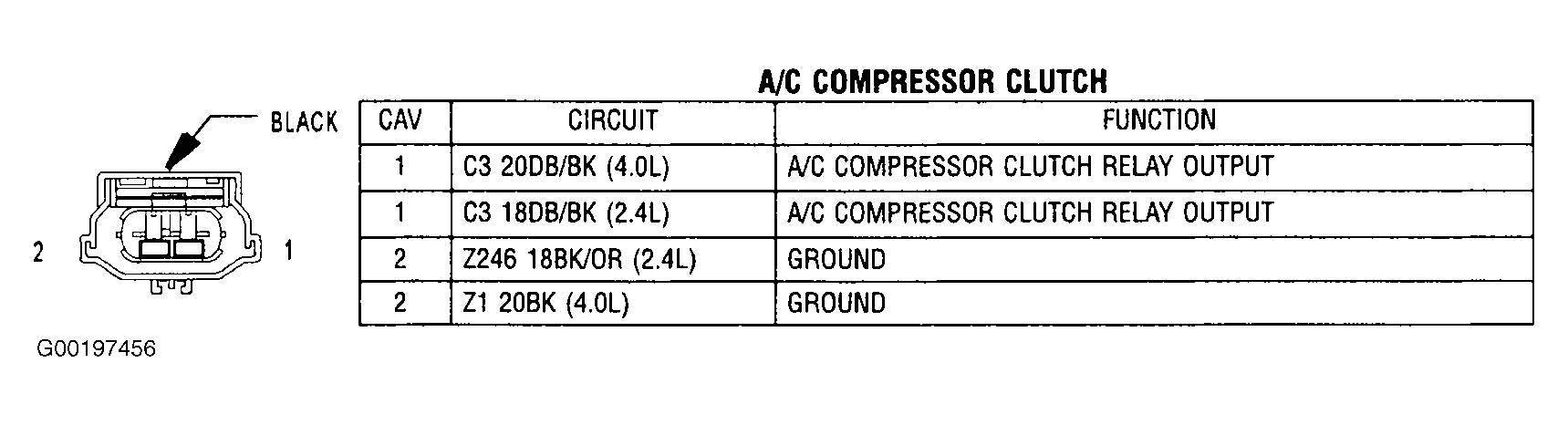

Fig 1: Identifying A/C Compressor Clutch Harness Connector
Courtesy of CHRYSLER CORP.
Courtesy of CHRYSLER CORP.
