Engine Controls - Self-Diagnostics
›
Connector Identification
›
Leak Detection Pump Harness Connector End View
Leak Detection Pump Harness Connector End View

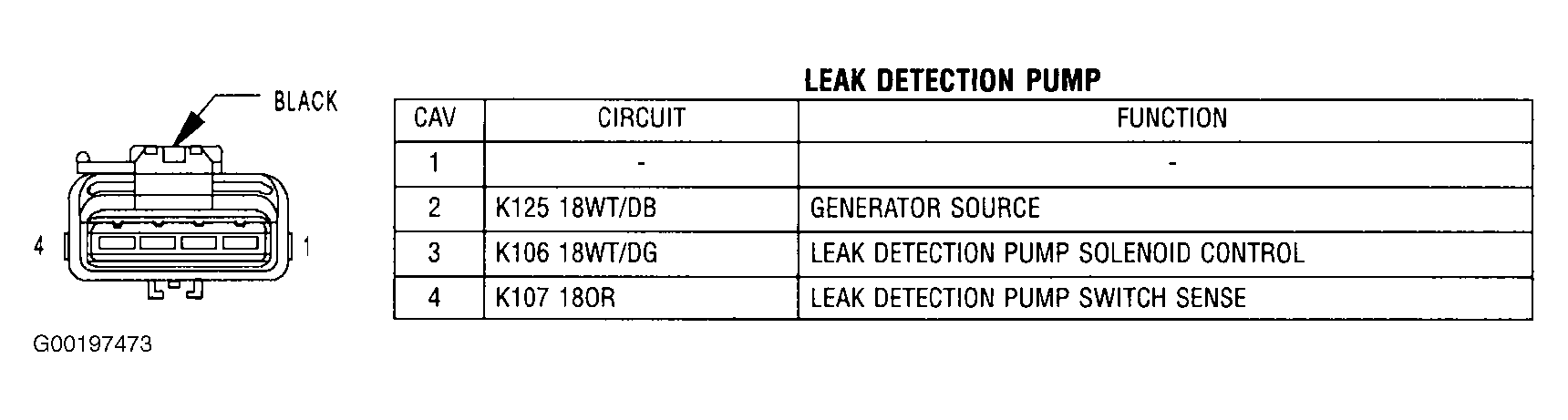

Fig 1: Identifying Leak Detection Pump Harness Connector
Courtesy of CHRYSLER CORP.
Courtesy of CHRYSLER CORP.
