Connector Identification
›
Power Distribution Center Relay Cavities & Circuit Identification
Power Distribution Center Relay Cavities & Circuit Identification

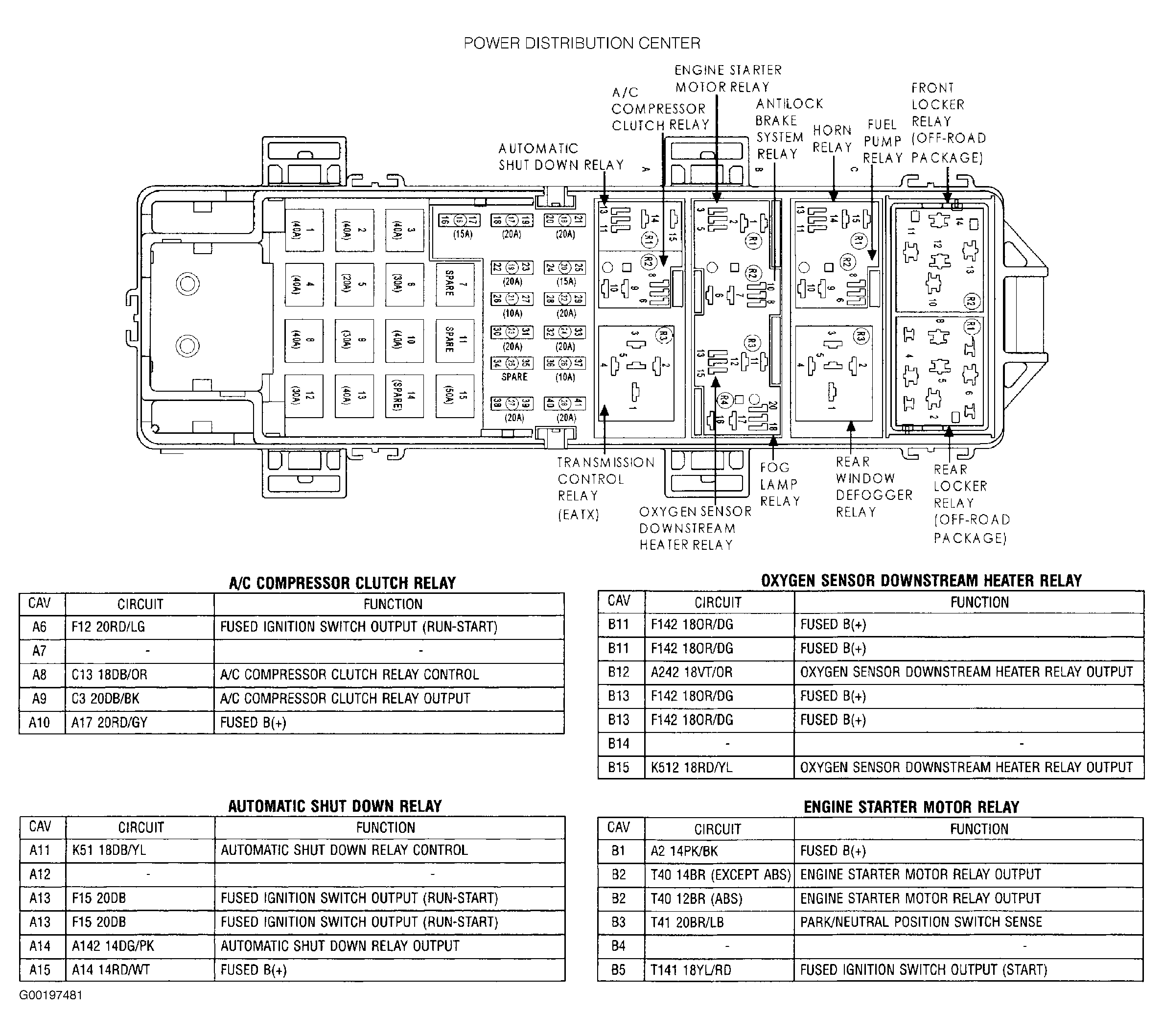

Fig 1: Identifying Power Distribution Center Relay Cavities & Circuits
Courtesy of CHRYSLER CORP.
Courtesy of CHRYSLER CORP.
