Connector End Views
›
Radio Connector End View
Radio Connector End View

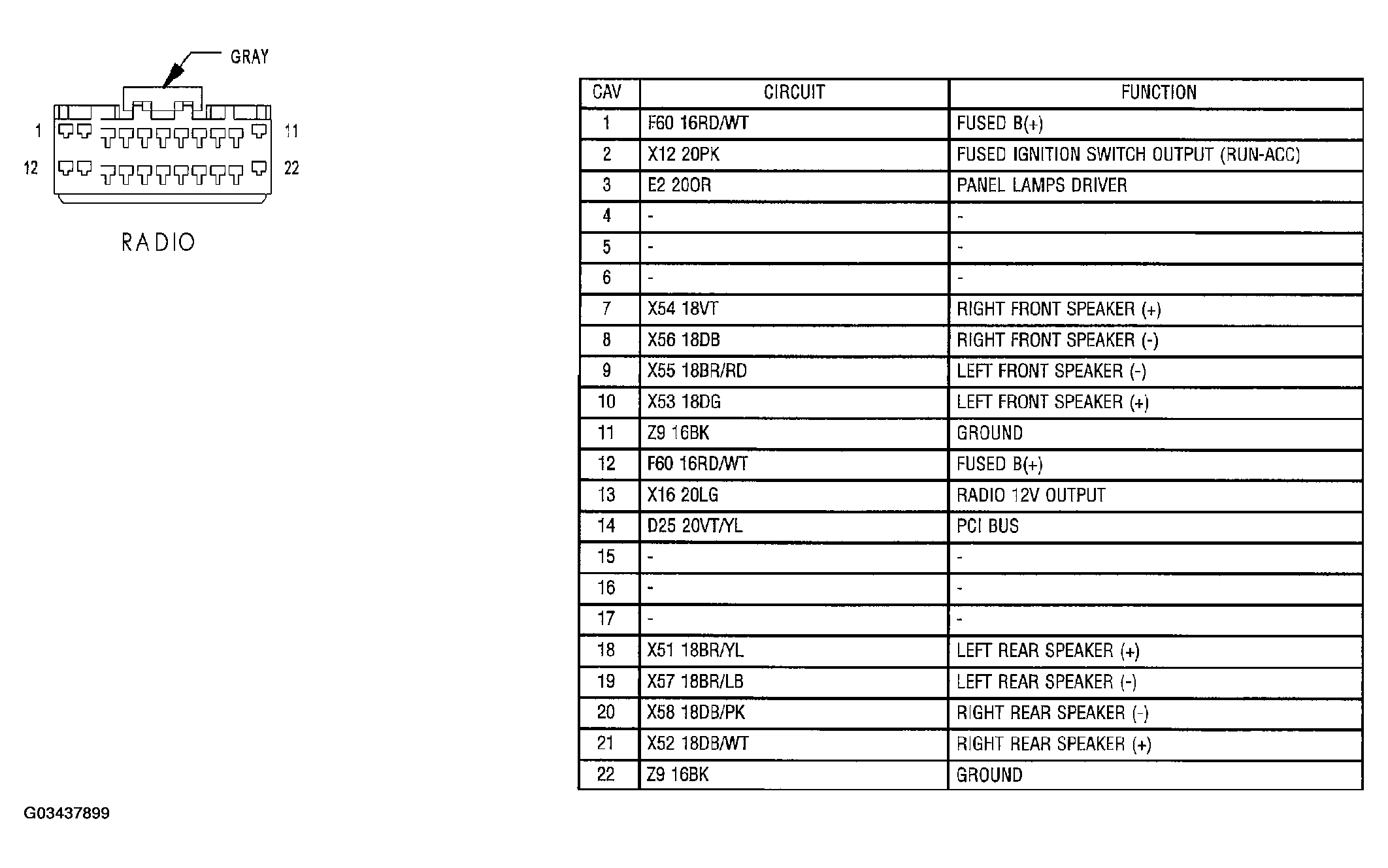

Fig 1: Radio Connector End View
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
