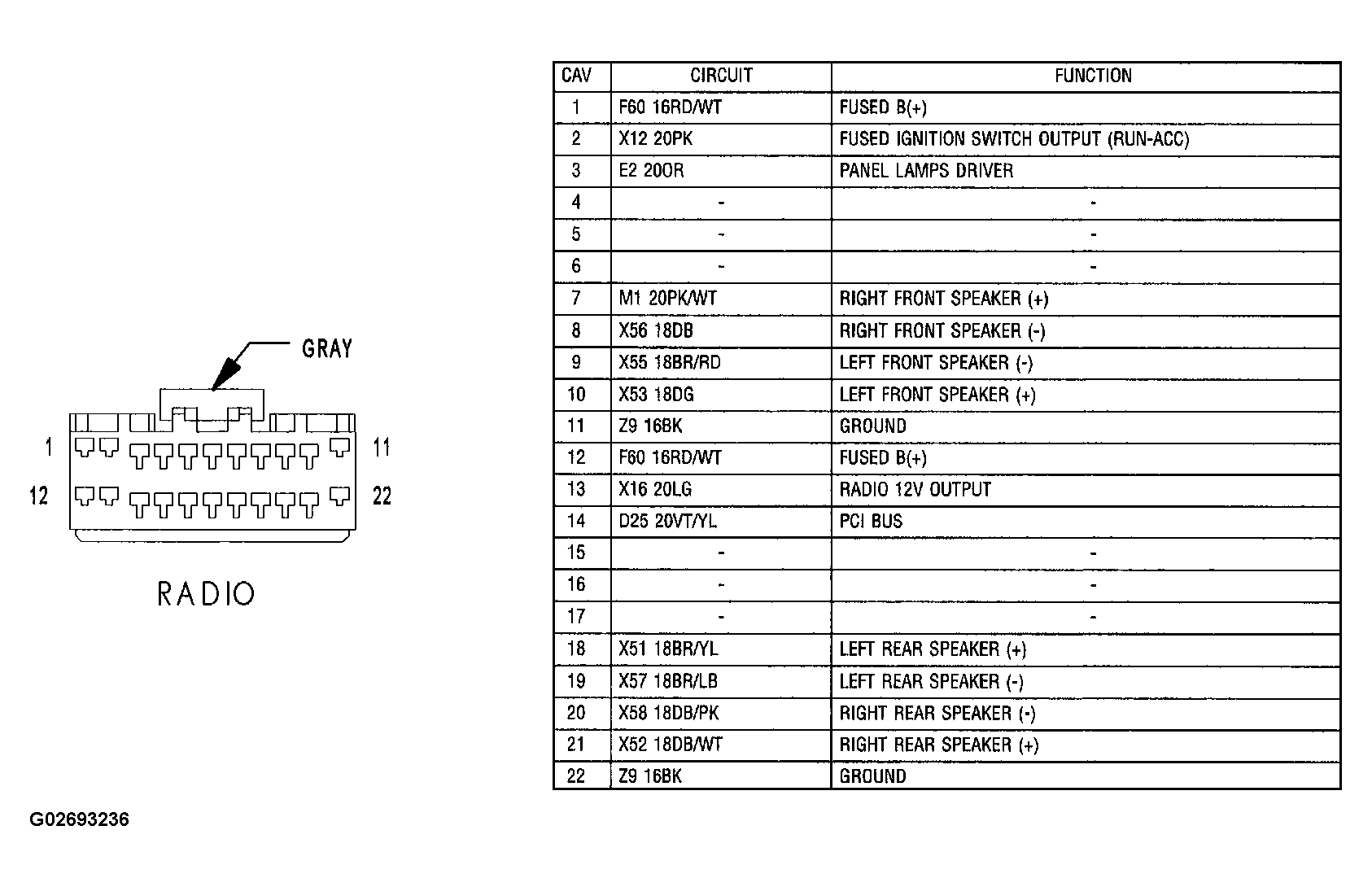

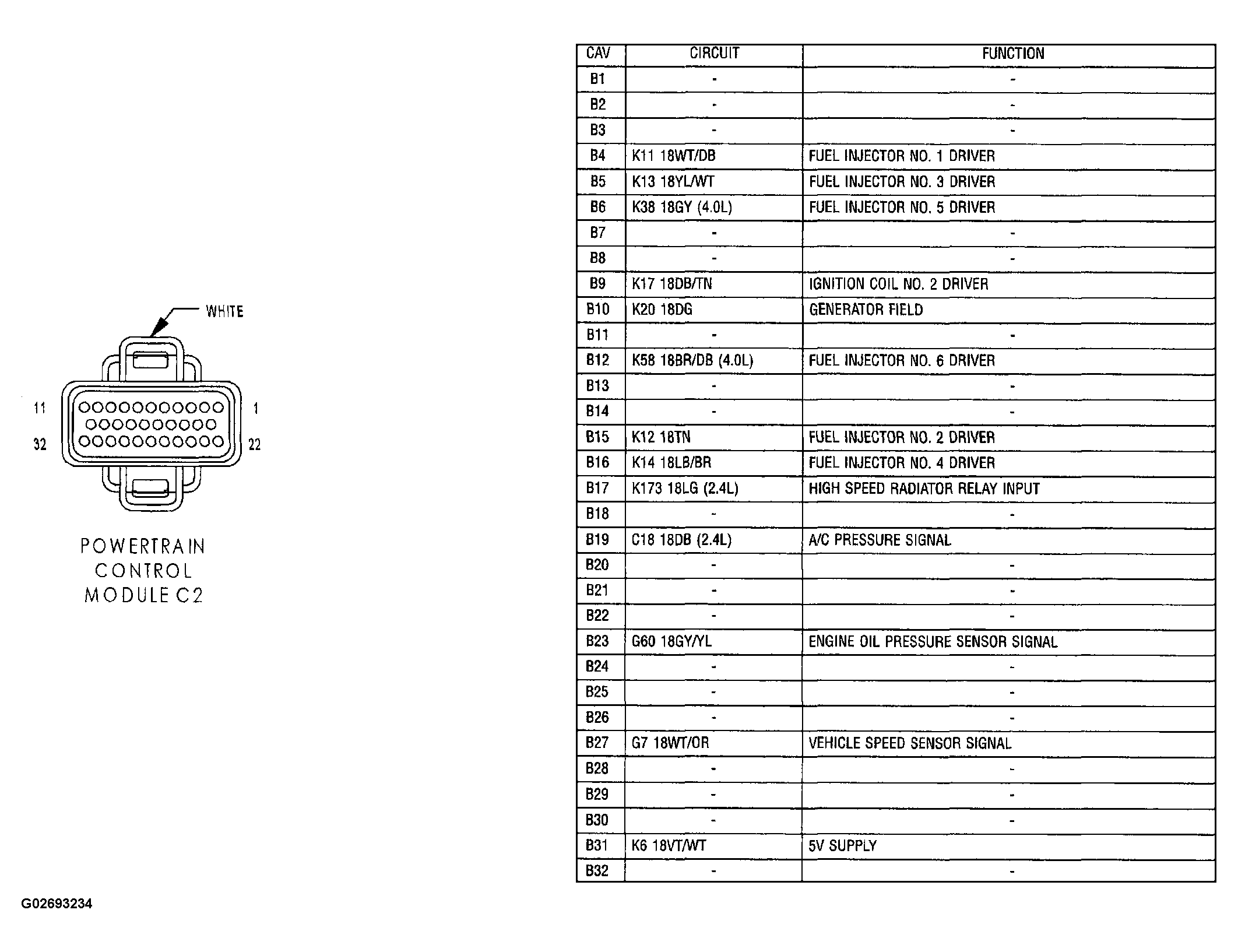

Connector PINOUTS

Fig 1: Identifying Connector Pinouts Of Airbag Control Module

Courtesy of DAIMLERCHRYSLER CORP.

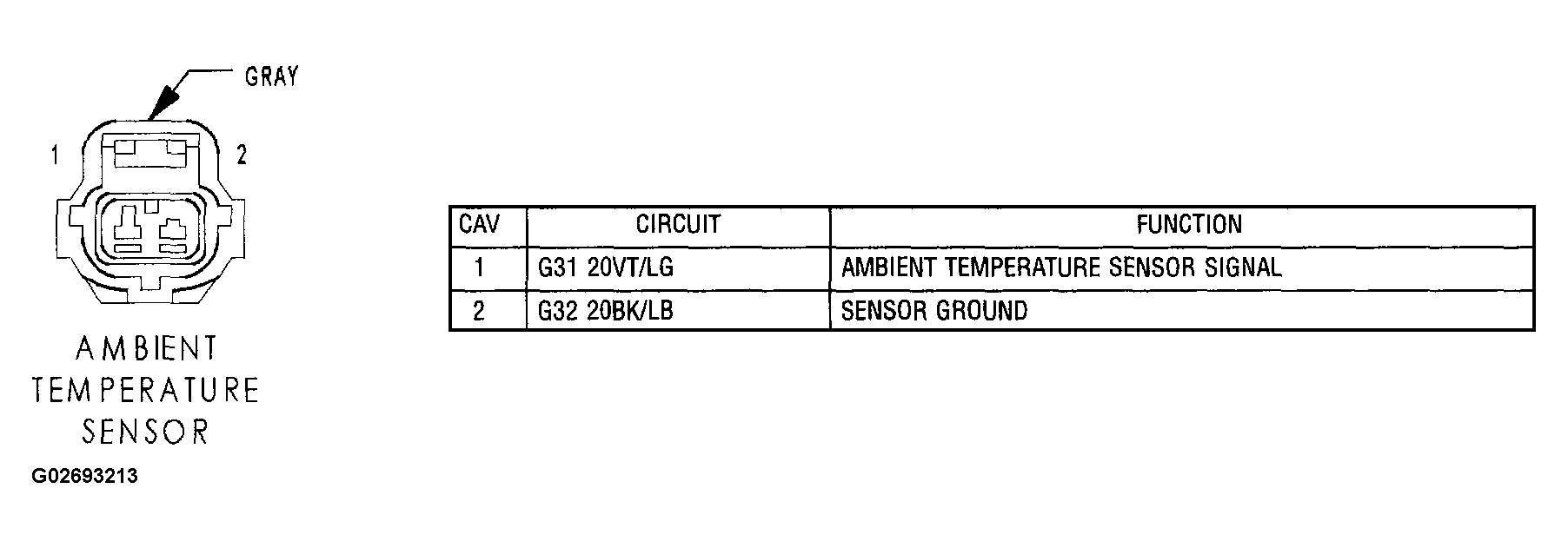

Fig 2: Identifying Connector Pinouts Of Ambient Temperature Sensor

Courtesy of DAIMLERCHRYSLER CORP.

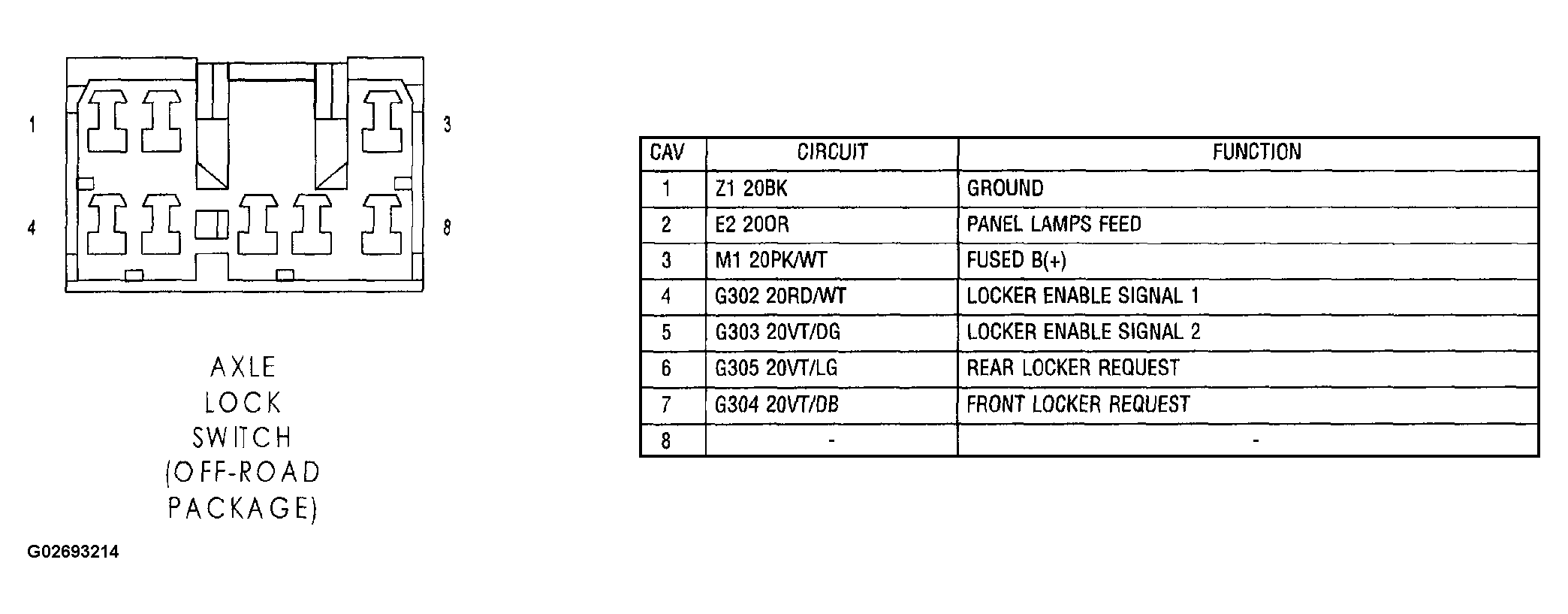

Fig 3: Identifying Connector Pinouts Of Axle Lock Switch (Off-Road Package)

Courtesy of DAIMLERCHRYSLER CORP.

Fig 4: Identifying Connector Pinouts Of Brake Warning Indicator Switch

Courtesy of DAIMLERCHRYSLER CORP.

Fig 5: Identifying Connector Pinouts Of Clockspring C2

Courtesy of DAIMLERCHRYSLER CORP.

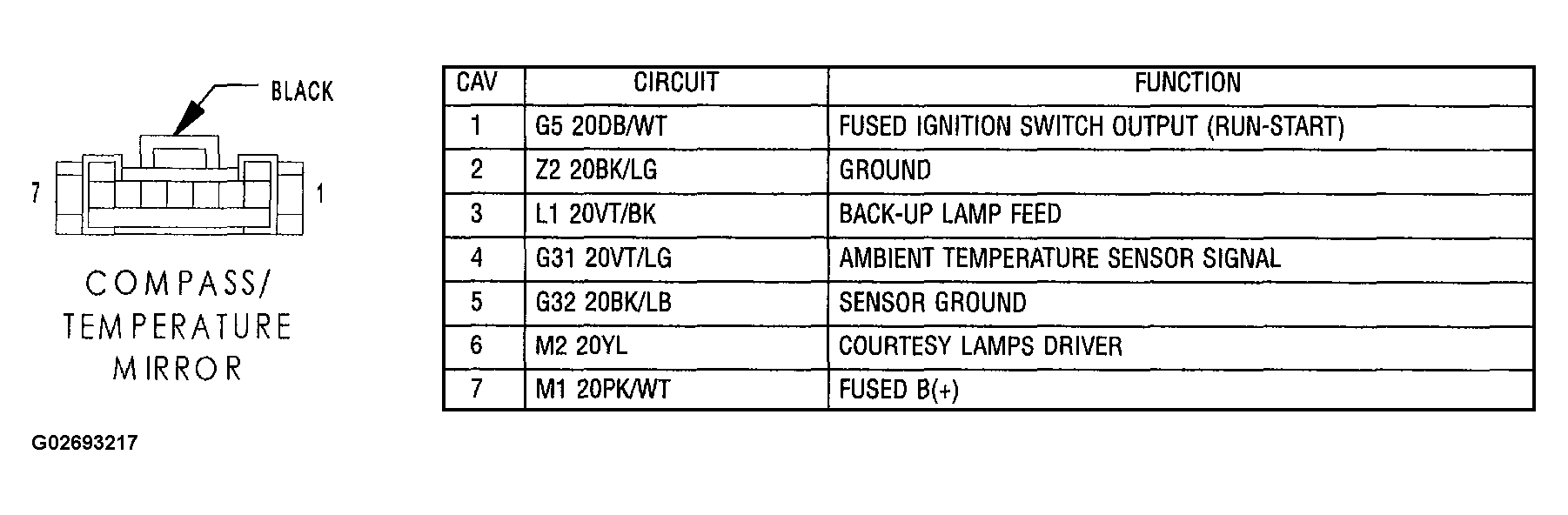

Fig 6: Identifying Connector Pinouts Of Compass/Temperature Mirror

Courtesy of DAIMLERCHRYSLER CORP.

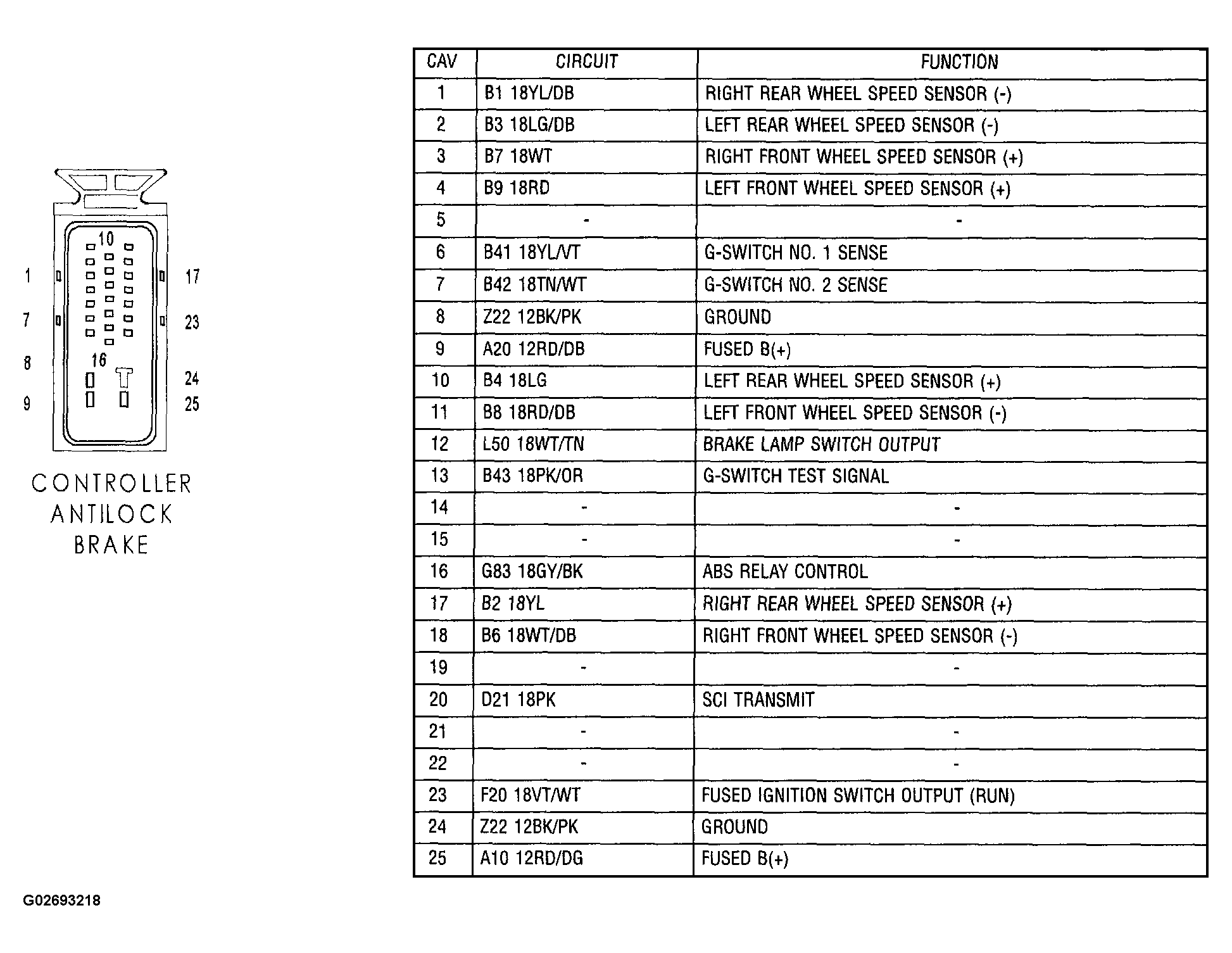

Fig 7: Identifying Connector Pinouts Of Controller Antilock Brake

Courtesy of DAIMLERCHRYSLER CORP.

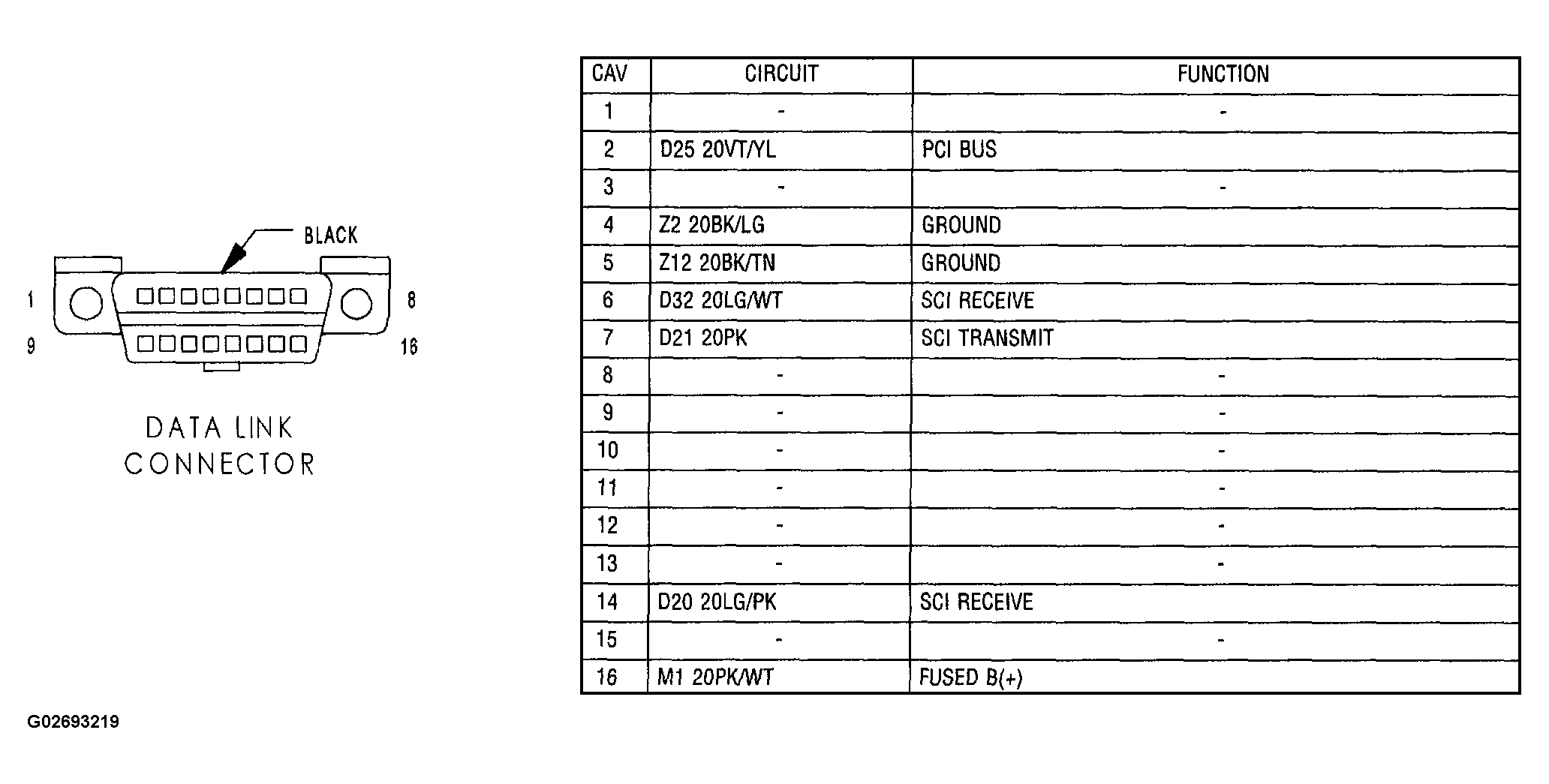

Fig 8: Identifying Connector Pinouts Of Data Link Connector

Courtesy of DAIMLERCHRYSLER CORP.

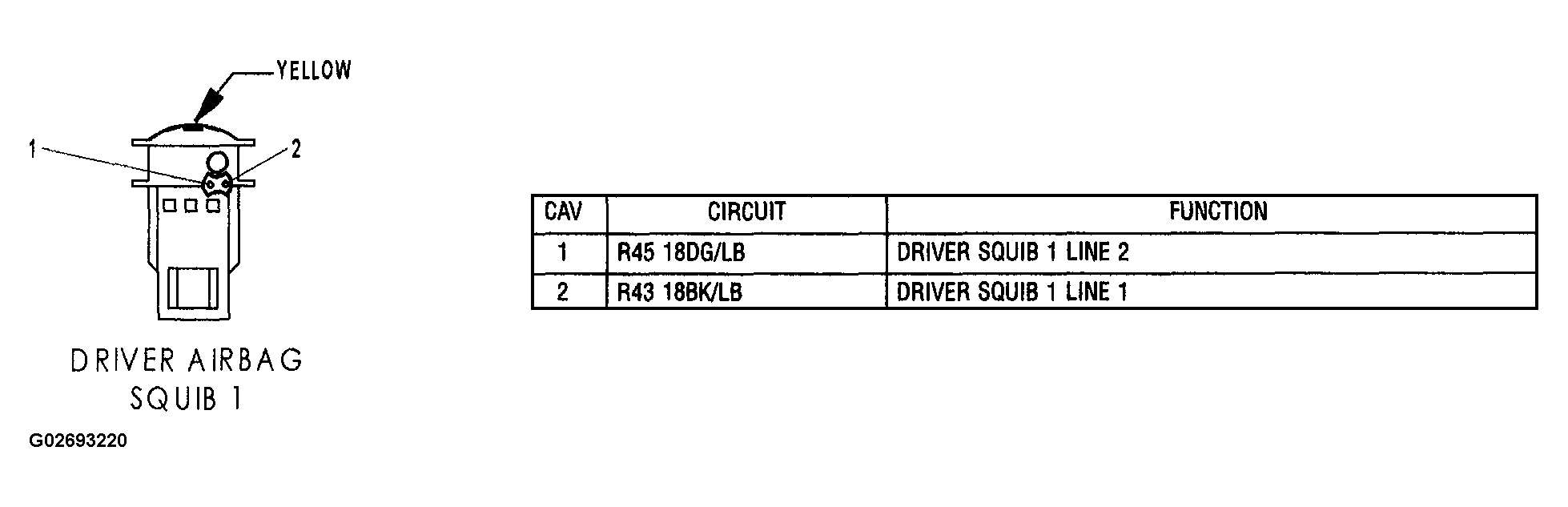

Fig 9: Identifying Connector Pinouts Of Driver Airbag Squib 1

Courtesy of DAIMLERCHRYSLER CORP.

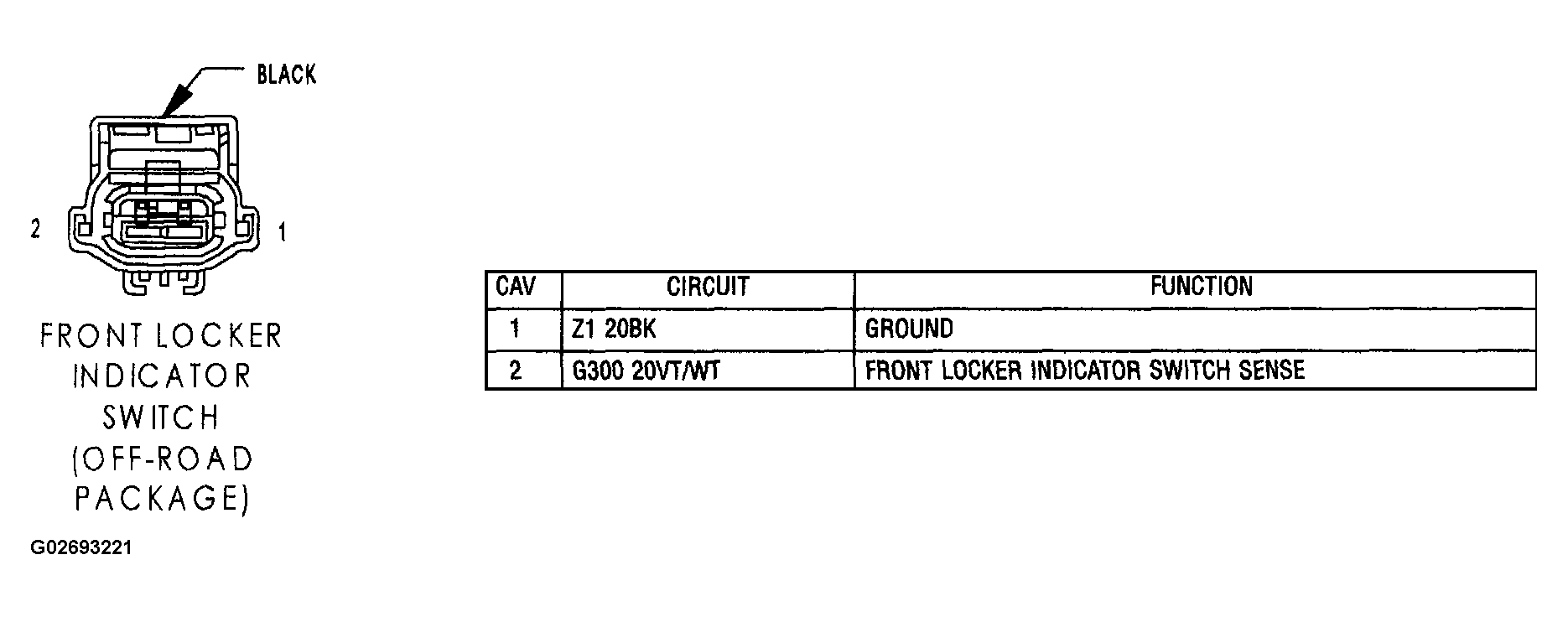

Fig 10: Identifying Connector Pinouts Of Front Locker Indicator Switch (Off-Road Package)

Courtesy of DAIMLERCHRYSLER CORP.

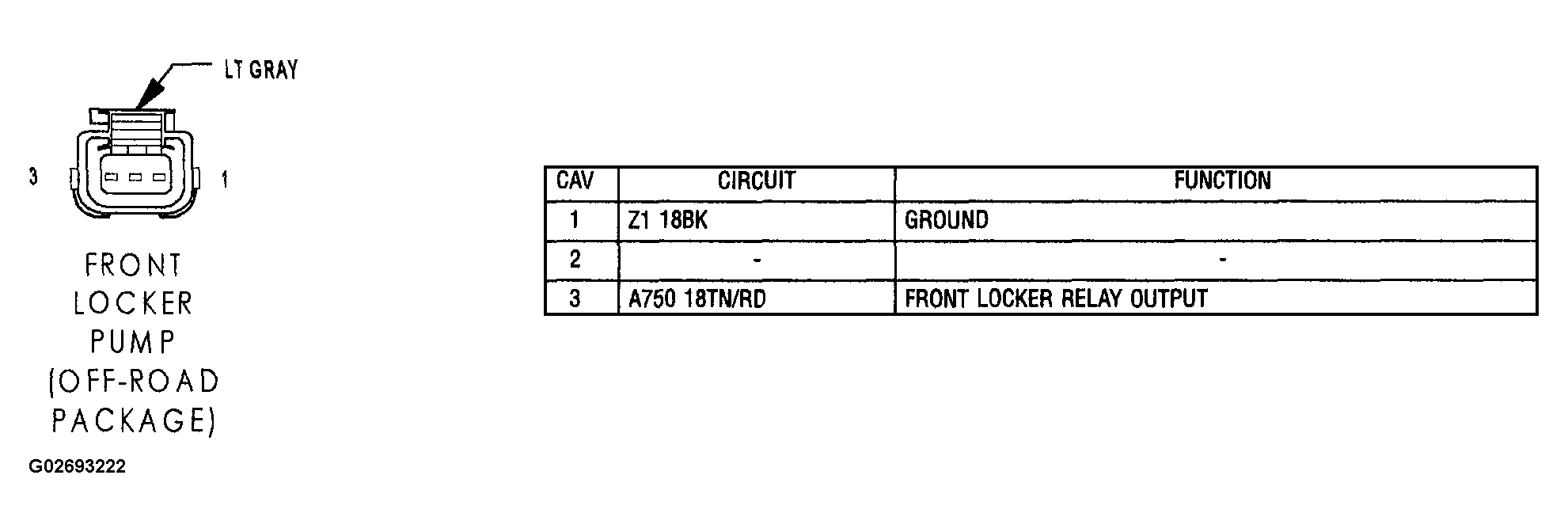

Fig 11: Identifying Connector Pinouts Of Front Locker Pump (Off-Road Package)

Courtesy of DAIMLERCHRYSLER CORP.

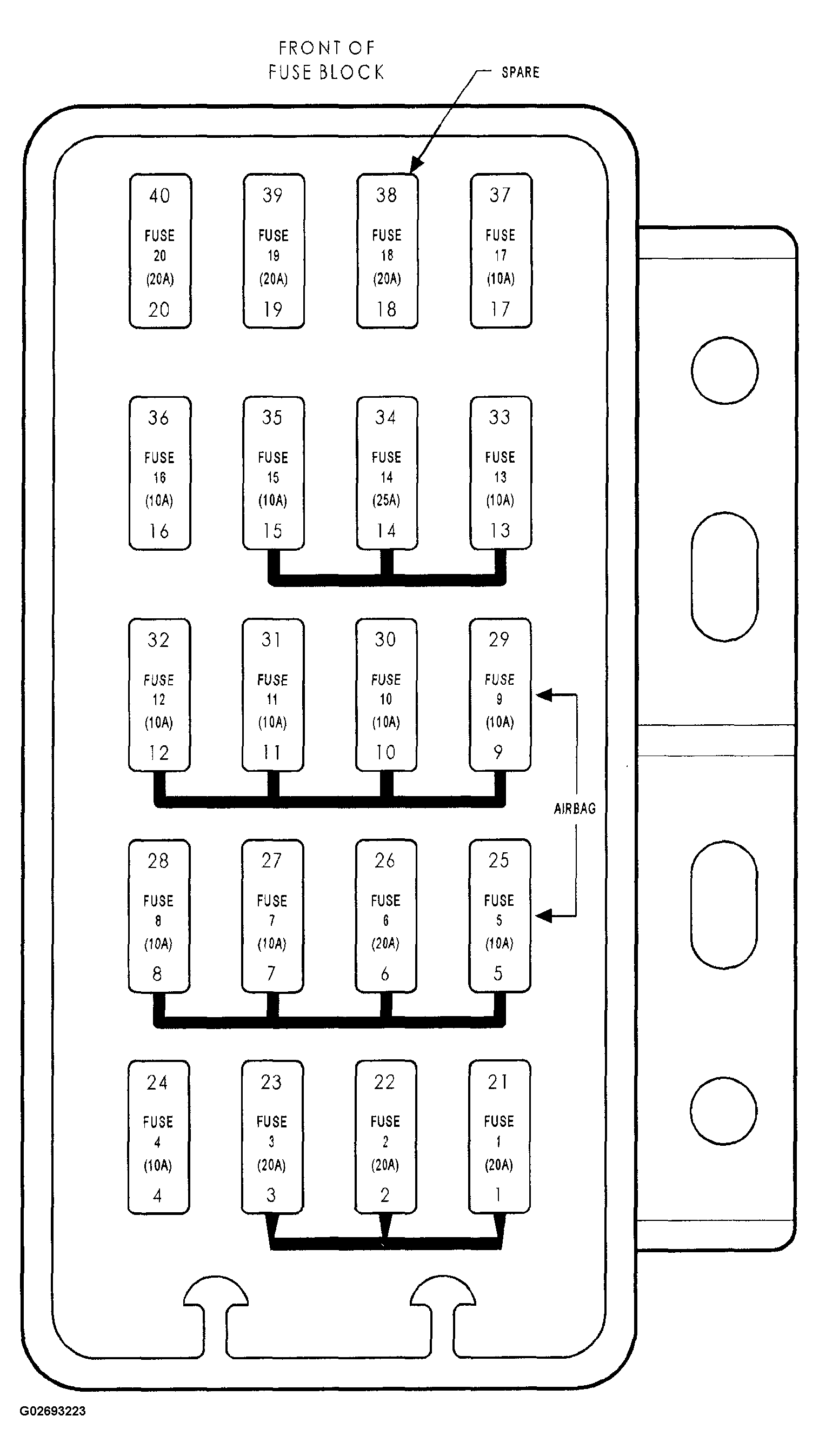

Fig 12: Identifying Front Of Fuse Block

Courtesy of DAIMLERCHRYSLER CORP.

FUSES (FUSE/RELAY BLOCK) FUNCTION

FUSE NO.	AMPS	FUSED CIRCUIT	FUNCTION
1	20A	F33 18PK/RD	FUSED B(+)
1	20A	F33 20PK/RD	FUSED B(+)
2	20A	F32 18PK/DB	FUSED B(+)
3	20A	X13 16BK/RD (SUBWOOFER)	FUSED B(+)
4	10A	Z1 20BK	DOOR AJAR SWITCH OUTPUT
5	10A	F23 18DB/YL	FUSED IGNITION SWITCH OUTPUT (RUN)
6	20A	V23 18BR/PK (HARD TOP)	FUSED IGNITION SWITCH OUTPUT (RUN)
7	10A	F20 20VT/WT	FUSED IGNITION SWITCH OUTPUT (RUN)
8	10A	F24 20RD/DG	FUSED IGNITION SWITCH OUTPUT (RUN)
9	10A	F14 18LG/YL	FUSED IGNITION SWITCH OUTPUT (RUN-START)
9	10A	F14 18LG/YL	FUSED IGNITION SWITCH OUTPUT (RUN-START)
10	10A	G5 20DB/WT	FUSED IGNITION SWITCH OUTPUT (RUN-START)
10	10A	G5 20DB/WT	FUSED IGNITION SWITCH OUTPUT (RUN-START)
11	10A	F12 20RD/LG	FUSED IGNITION SWITCH OUTPUT (RUN-START)
12	10A	F15 20DB	FUSED IGNITION SWITCH OUTPUT (RUN-START)
12	10A	F15 20DB	FUSED IGNITION SWITCH OUTPUT (RUN-START)
13	10A	L5 20BK/GY	FUSED IGNITION SWITCH OUTPUT (RUN-START)
14	10A	X12 20PK	FUSED IGNITION SWITCH OUTPUT (RUN-START)
15	10A	F81 20DB/RD (HARD TOP)	FUSED REAR WINDOW DEFOGGER RELAY OUTPUT
16	10A	L22 20LG/DG (BUILT-UP-EXPORT)	DIMMER SWITCH LOW BEAM OUTPUT
16	10A	L22 20LG/DG (BUILT-UP-EXPORT)	FUSED IGNITION SWITCH OUTPUT (RUN-START)
17	25A	V6 16PK/BK	FUSED IGNITION SWITCH OUTPUT (RUN-START)
17	25A	V6 16PK/BK	FUSED IGNITION SWITCH OUTPUT (RUN-START)
18	15A	F38 16LB	FUSED IGNITION SWITCH OUTPUT (RUN)
19	20A	-	-
20	20A	T141 18YL/RD	FUSED IGNITION SWITCH OUTPUT (START)
20	20A	T141 18YL/RD	FUSED IGNITION SWITCH OUTPUT (START)

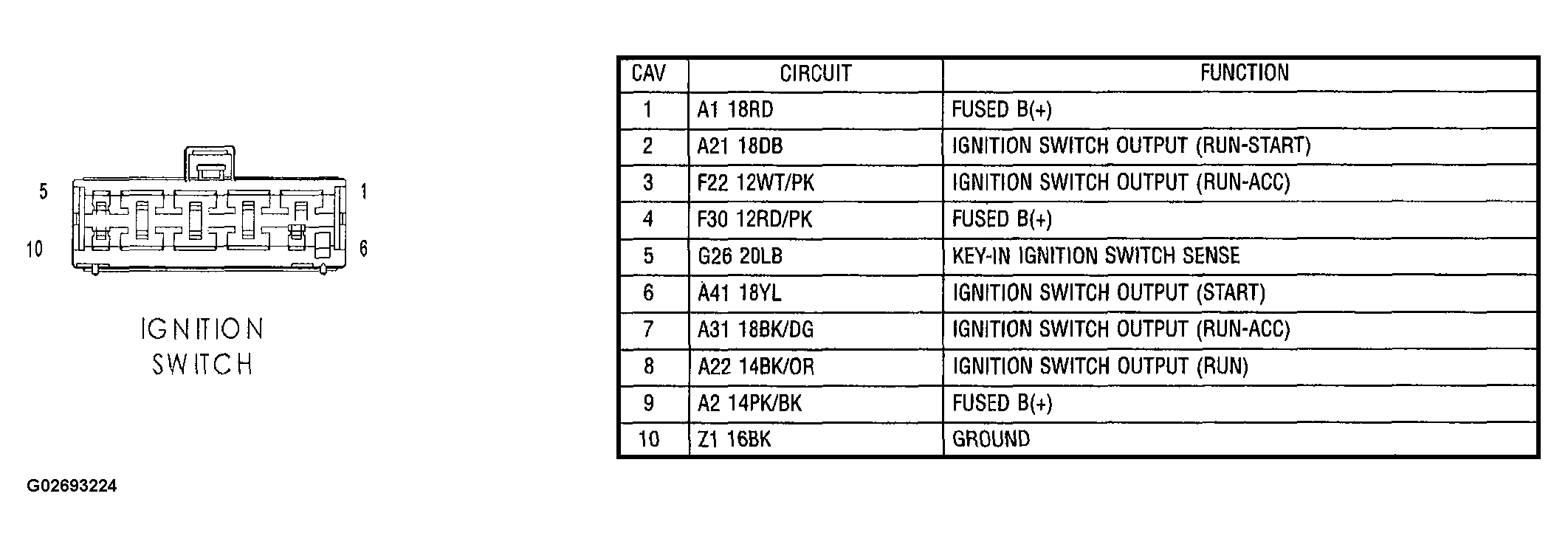

Fig 13: Identifying Connector Pinouts Of Ignition Switch

Courtesy of DAIMLERCHRYSLER CORP.

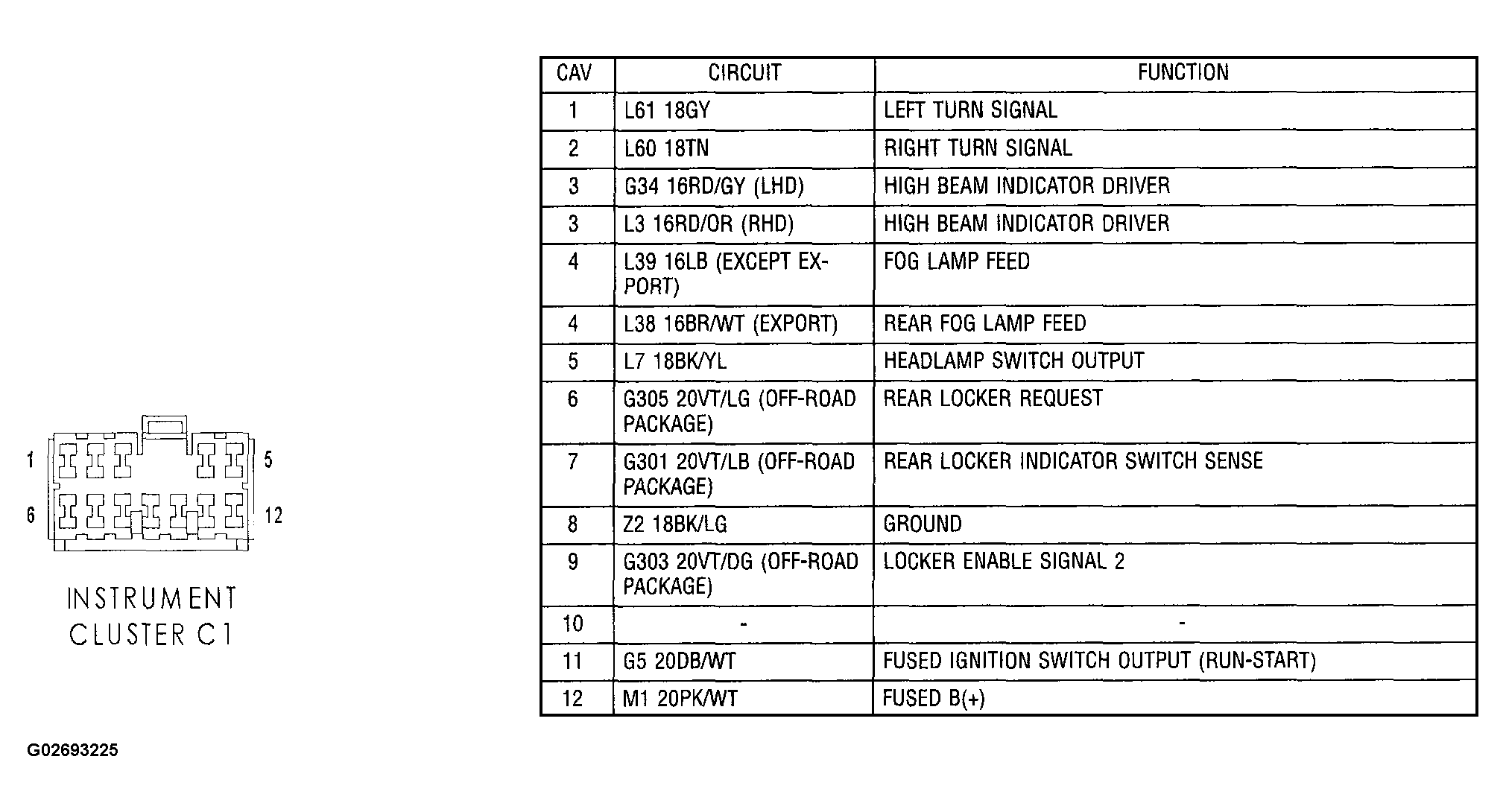

Fig 14: Identifying Connector Pinouts Of Instrument Cluster C1

Courtesy of DAIMLERCHRYSLER CORP.

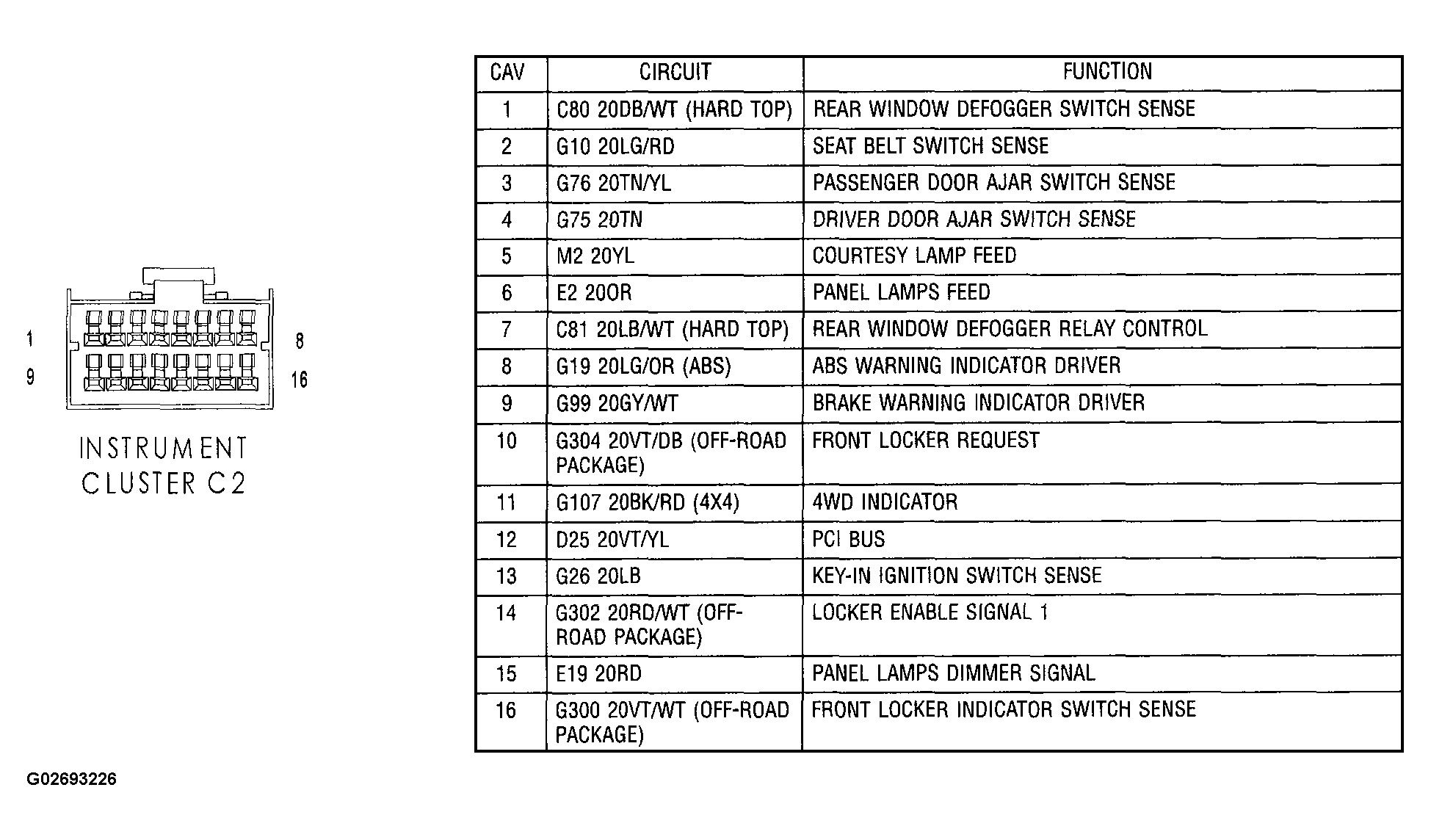

Fig 15: Identifying Connector Pinouts Of Instrument Cluster C2

Courtesy of DAIMLERCHRYSLER CORP.

Fig 16: Identifying Connector Pinouts Of Left Front Speaker

Courtesy of DAIMLERCHRYSLER CORP.

Fig 17: Identifying Connector Pinouts Of Left Rear Speaker

Courtesy of DAIMLERCHRYSLER CORP.

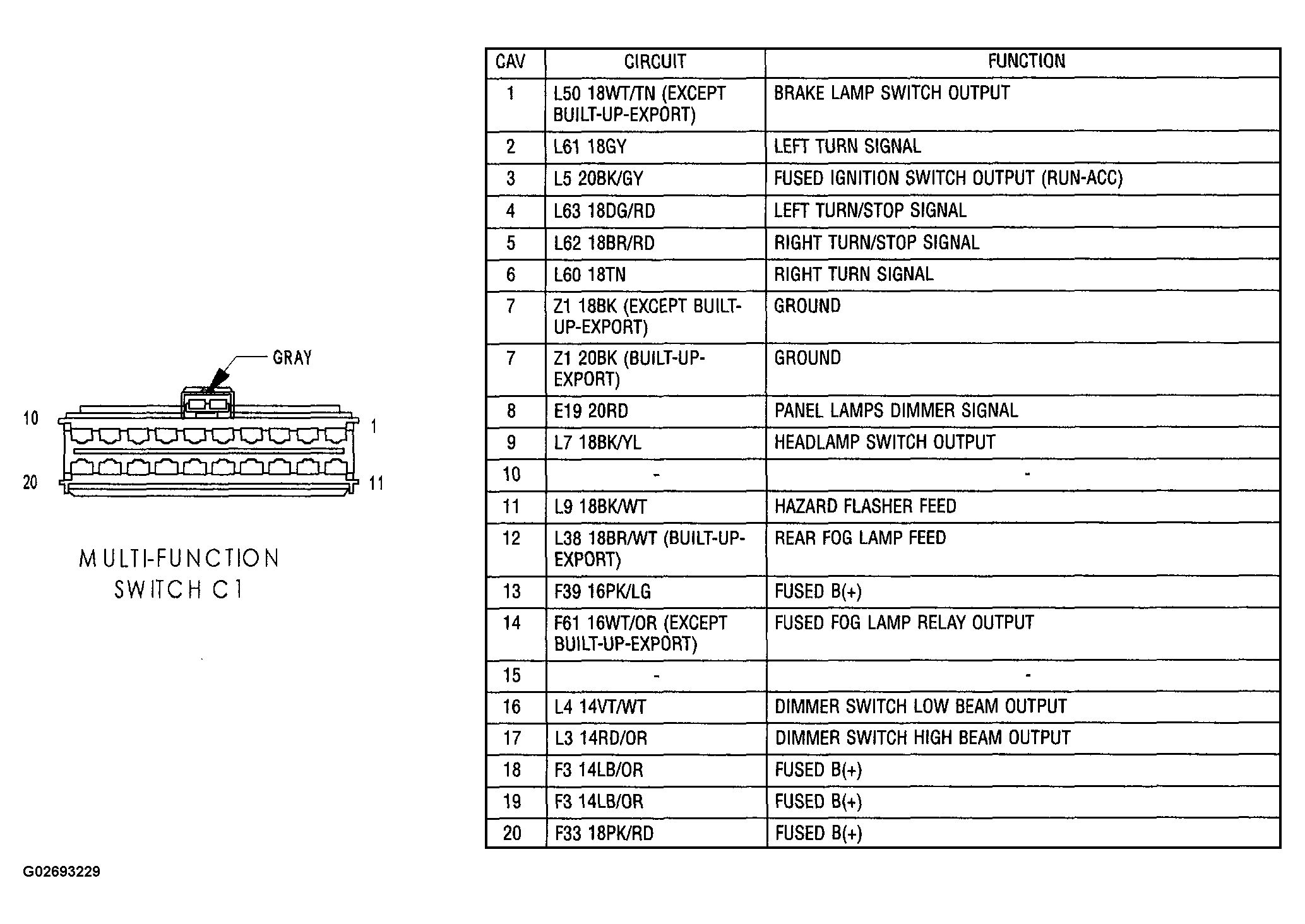

Fig 18: Identifying Connector Pinouts Of Multi-Function Switch C1

Courtesy of DAIMLERCHRYSLER CORP.

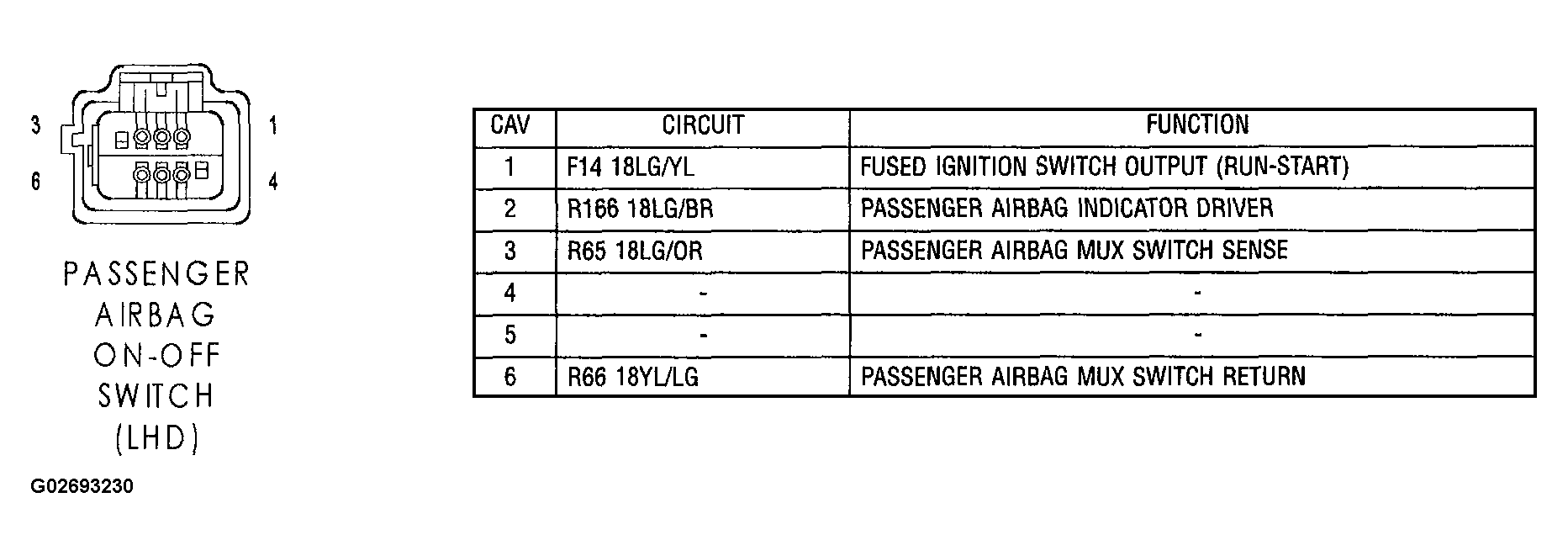

Fig 19: Identifying Connector Pinouts Of Passenger Airbag On/Off Switch

Courtesy of DAIMLERCHRYSLER CORP.

Fig 20: Identifying Connector Pinouts Of Passenger Airbag Squib 1

Courtesy of DAIMLERCHRYSLER CORP.

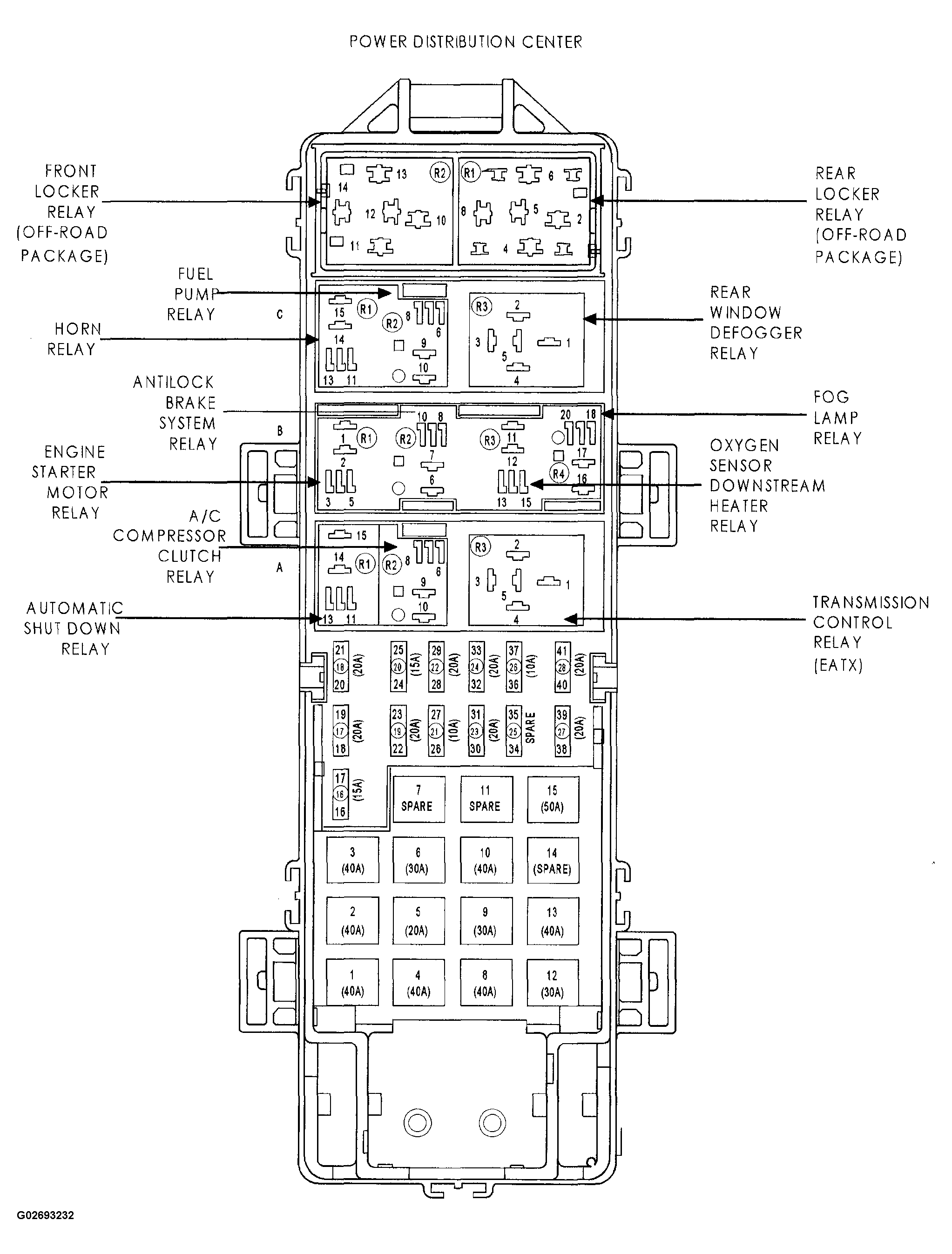

Fig 21: View Of Power Distribution Center

Courtesy of DAIMLERCHRYSLER CORP.

FUSES (PDC) FUNCTION

FUSE NO.	AMPS	FUSED CIRCUIT	FUNCTION
1	40A	A111 12RD/LB	FUSED B(+)
2	40A	A4 12BK/PK	FUSED B(+)
3	40A	A6 12RD/BK	FUSED B(+)
4	40A	C24 12DB/PK (2.4L)	FUSED B(+)
5	20A	A30 16RD/WT (A/T)	FUSED B(+)
6	30A	A2 14PK/BK	FUSED B(+)
7	-	-	-
8	40A	A10 12RD/DG (ABS)	FUSED B(+)
9	30A	A14 14RD/WT	FUSED B(+)
9	30A	A14 14RD/WT	FUSED B(+)
10	40A	A3 12RD/WT	FUSED B(+)
11	-	-	-
12	30A	A20 12RD/DB (ABS)	FUSED B(+)
13	40A	F30 12RD/PK	FUSED B(+)
14	-	-	-
15	50A	M1 16PK/WT (EXCEPT ABS/ABS CANADA)	FUSED B(+)
15	50A	M1 20PK/WT (ABS EXCEPT CANADA)	FUSED B(+)
16	15A	F142 18OR/DG	AUTOMATIC SHUT DOWN RELAY OUTPUT
17	20A	F70 16PK/BK	FUSED B(+)
18	20A	F31 18VT	FUSED B(+)
18	20A	F31 18VT	FUSED B(+)
19	20A	F39 16PK/LG (FRONT FOG LAMPS)	FUSED B(+)
20	15A	F60 16RD/WT	FUSED B(+)
21	10A	A17 20RD/GY	FUSED B(+)
22	20A	A1 18RD	FUSED B(+)
23	20A	A61 18DG/BK	FUSED B(+)
24	20A	M1 20PK/WT (OFF-ROAD PACKAGE)	FUSED B(+)
25	-	-	-
26	10A	M1 20PK/WT	FUSED B(+)
27	20A	L9 18BK/WT	FUSED B(+)
28	20A	F42 18DG/LG	AUTOMATIC SHUT DOWN RELAY OUTPUT

FRONT LOCKER RELAY (OFF-ROAD PACKAGE) CIRCUIT FUNCTION

CAV	CIRCUIT	FUNCTION
D10	A88 18RD/DB	FUSED B(+)
D11	G304 20VT/DB	FRONT LOCKER REQUEST
D12	-	-
D13	A88 18RD/DB	FUSED B(+)
D14	A750 18TN/RD	FRONT LOCKER RELAY OUTPUT

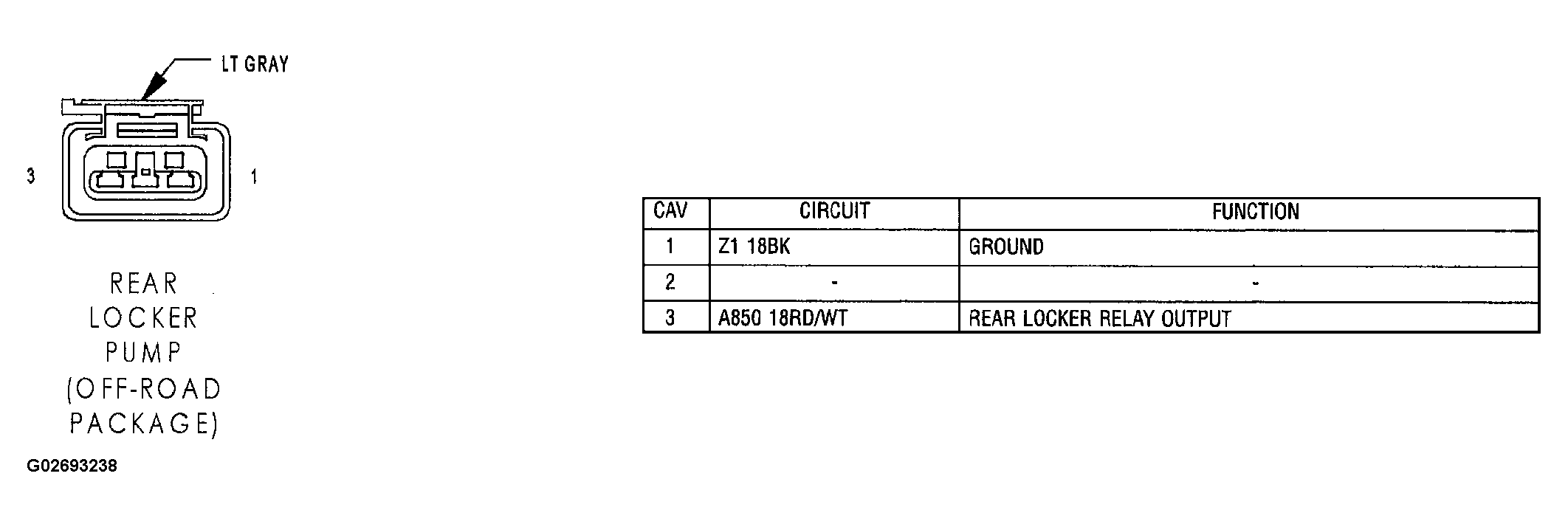

REAR LOCKER RELAY (OFF-ROAD PACKAGE) CIRCUIT FUNCTION

CAV	CIRCUIT	FUNCTION
D2	A88 18RD/DB	FUSED B(+)
D4	A88 18RD/DB	FUSED B(+)
D5	-	-
D6	G305 20VT/LG	REAR LOCKER REQUEST
D8	A850 18RD/WT	REAR LOCKER RELAY OUTPUT

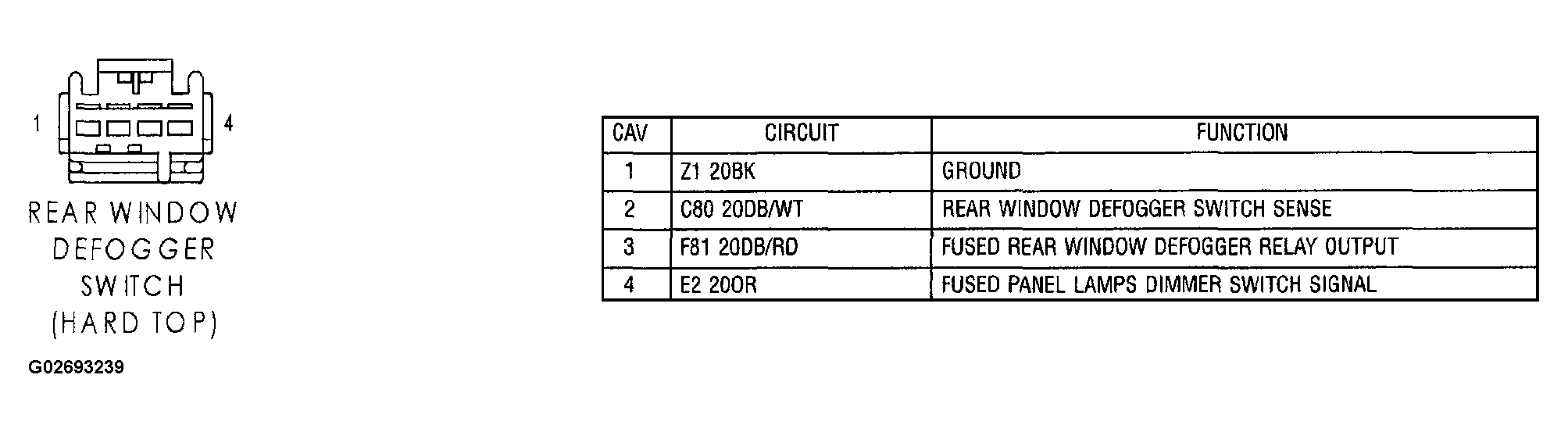

REAR WINDOW DEFOGGER RELAY CIRCUIT FUNCTION

CAV	CIRCUIT	FUNCTION
C1	A4 12BK/PK	FUSED B(+)
C2	C81 20LB/WT	REAR WINDOW DEFOGGER RELAY CONTROL
C3	C15 12BK/WT	REAR WINDOW DEFOGGER RELAY OUTPUT
C4	F20 20VT/WT	FUSED IGNITION SWITCH OUTPUT (RUN)

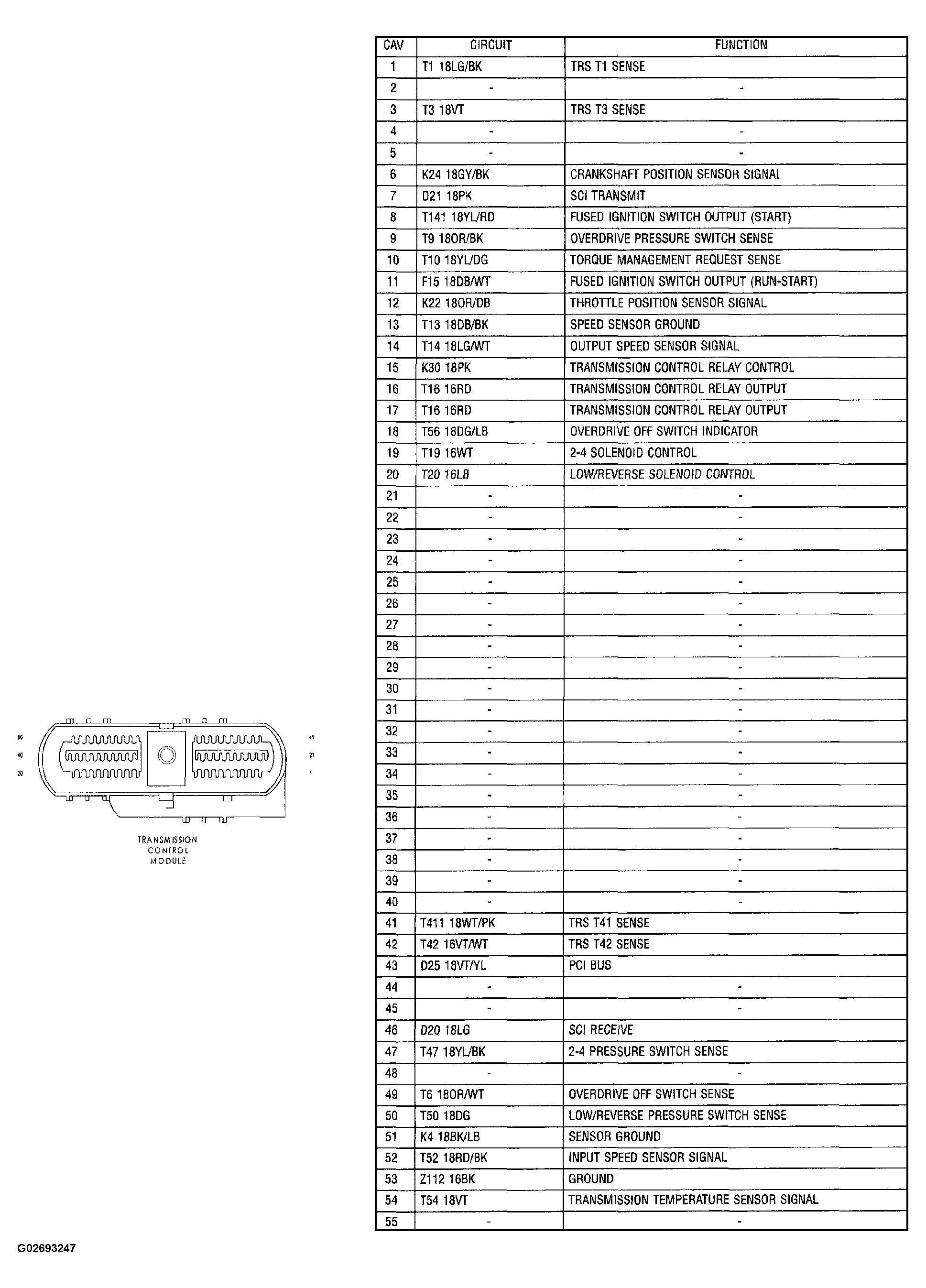

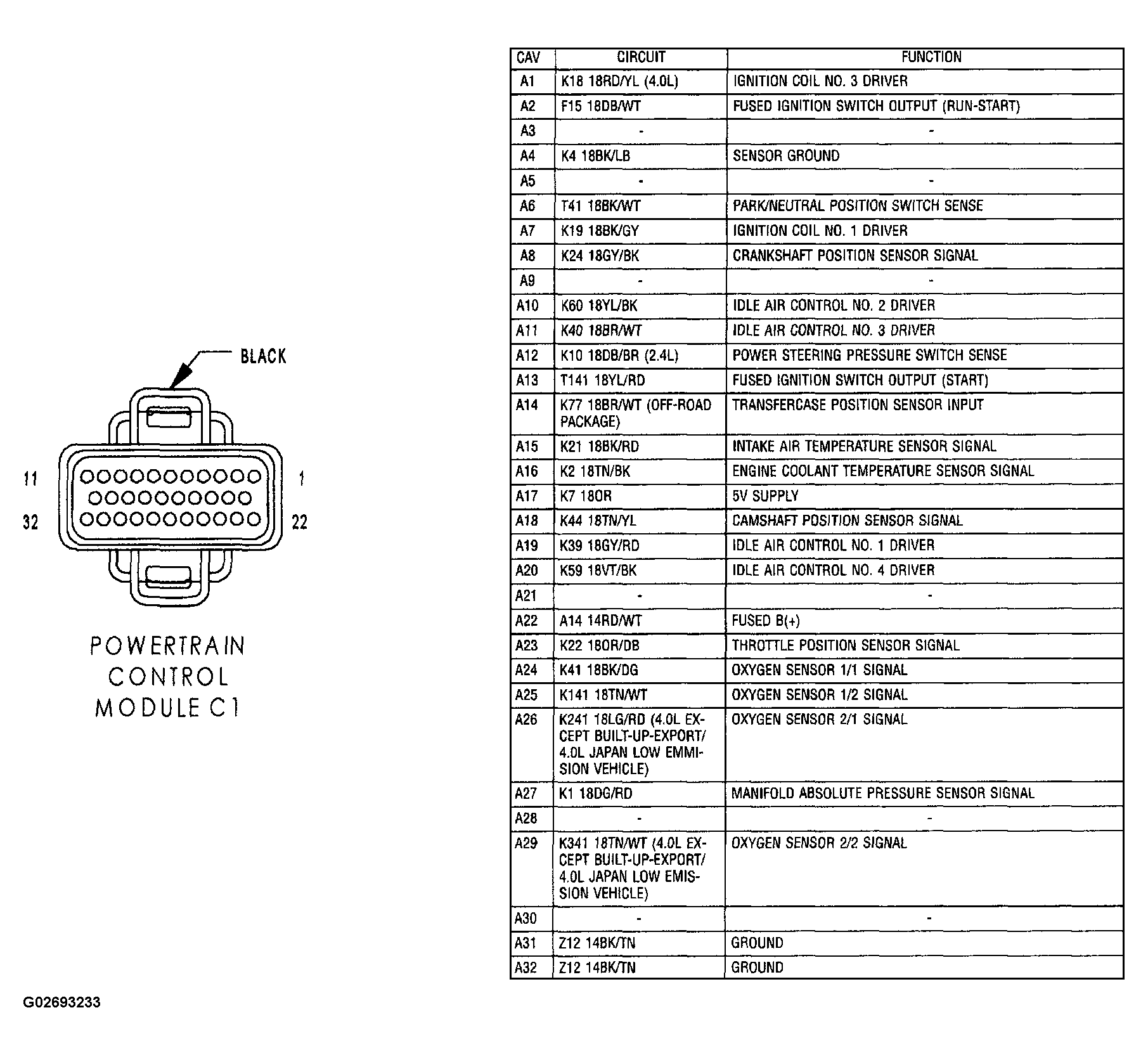

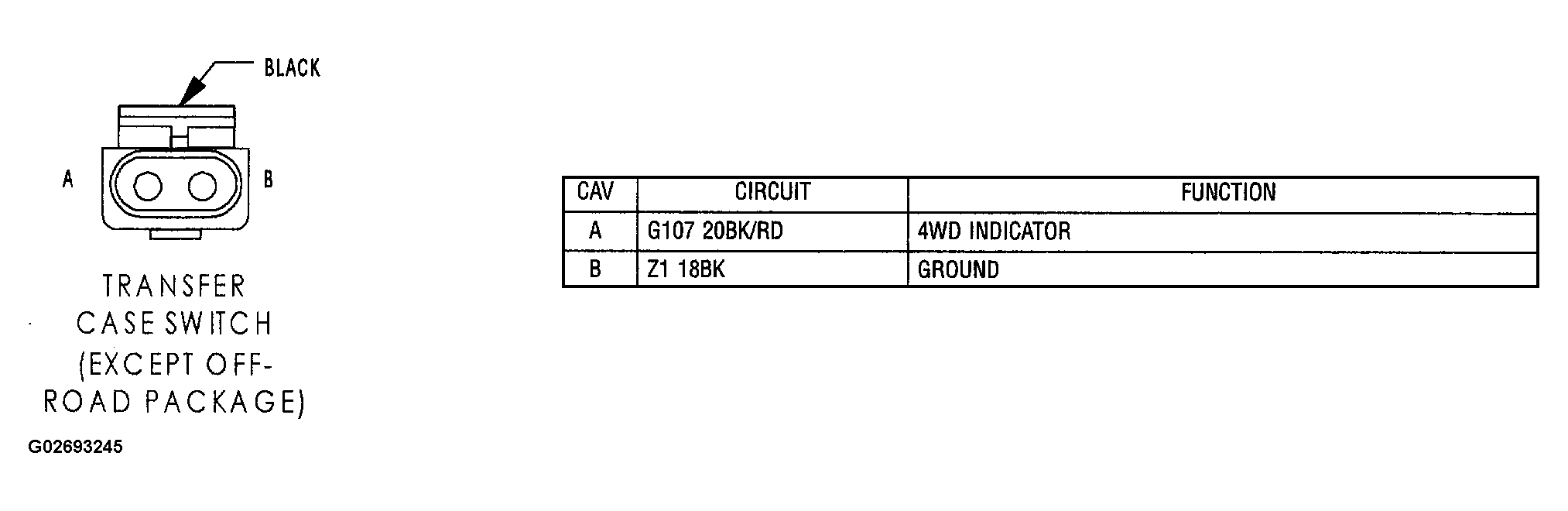

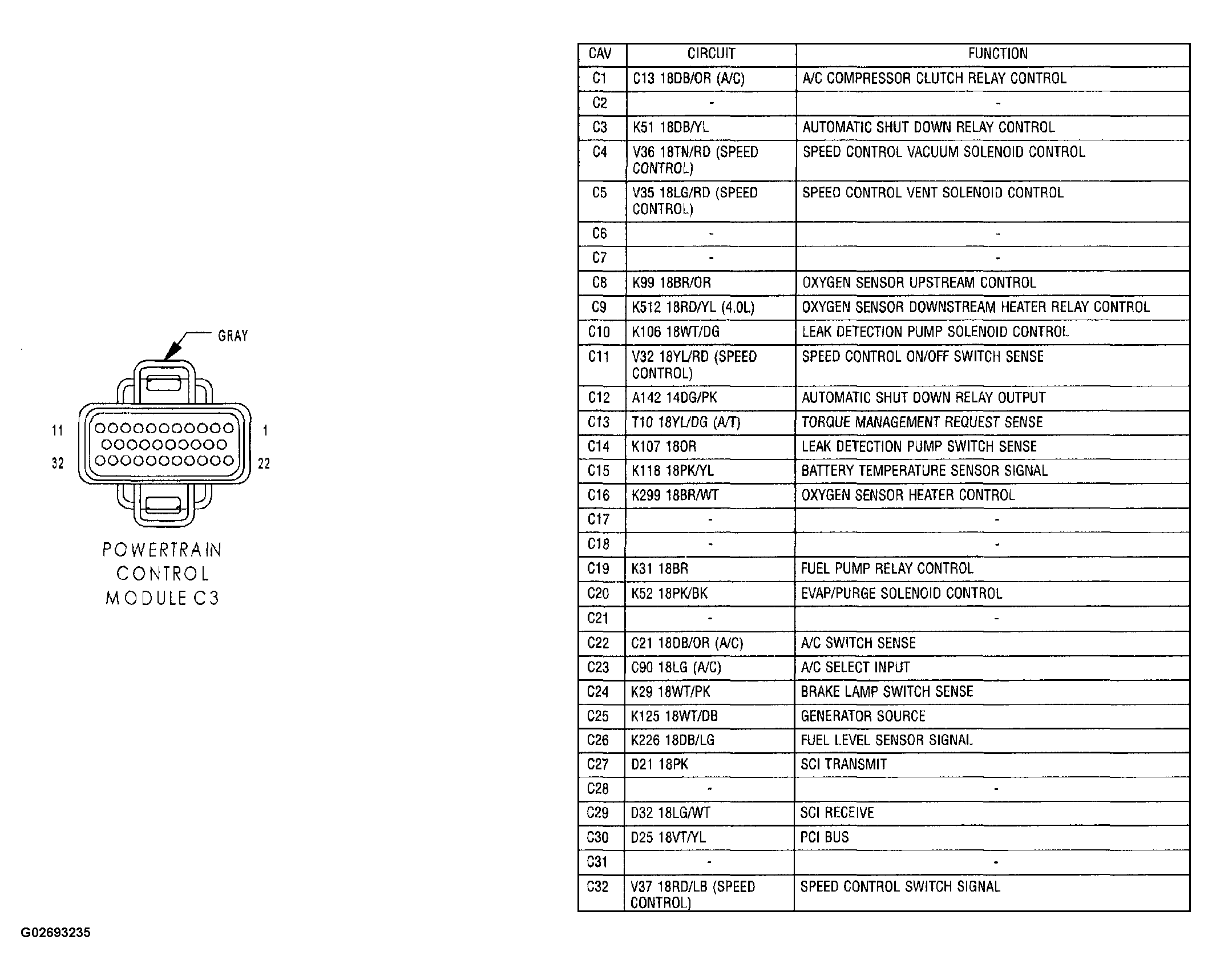

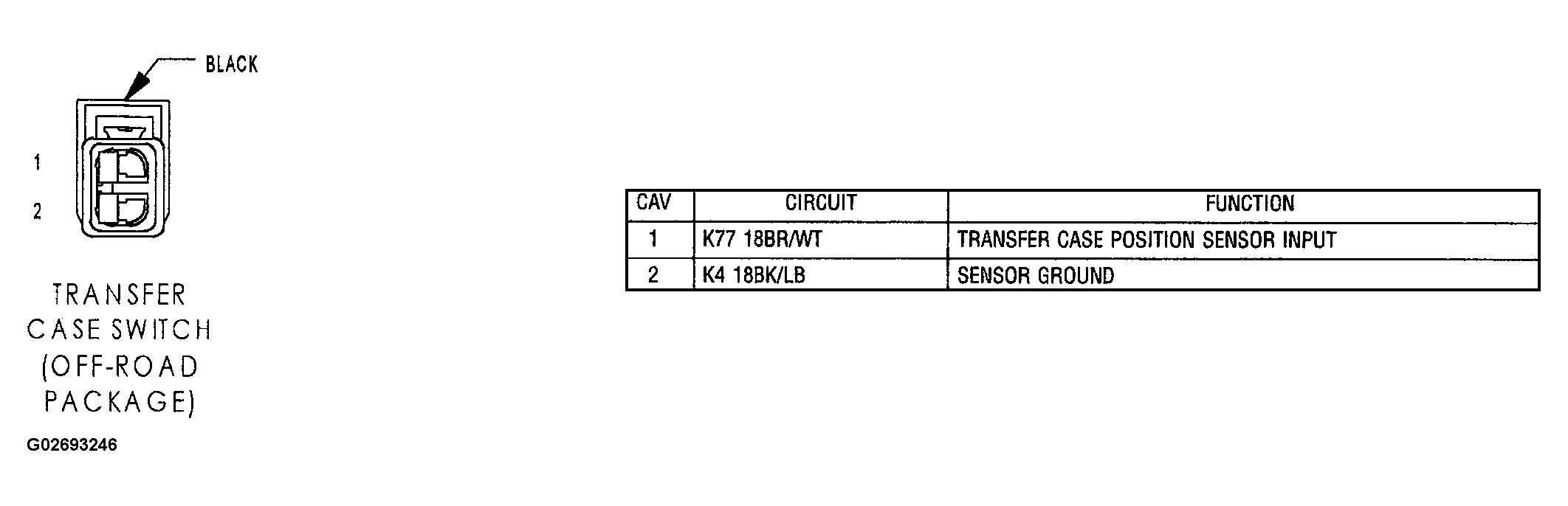

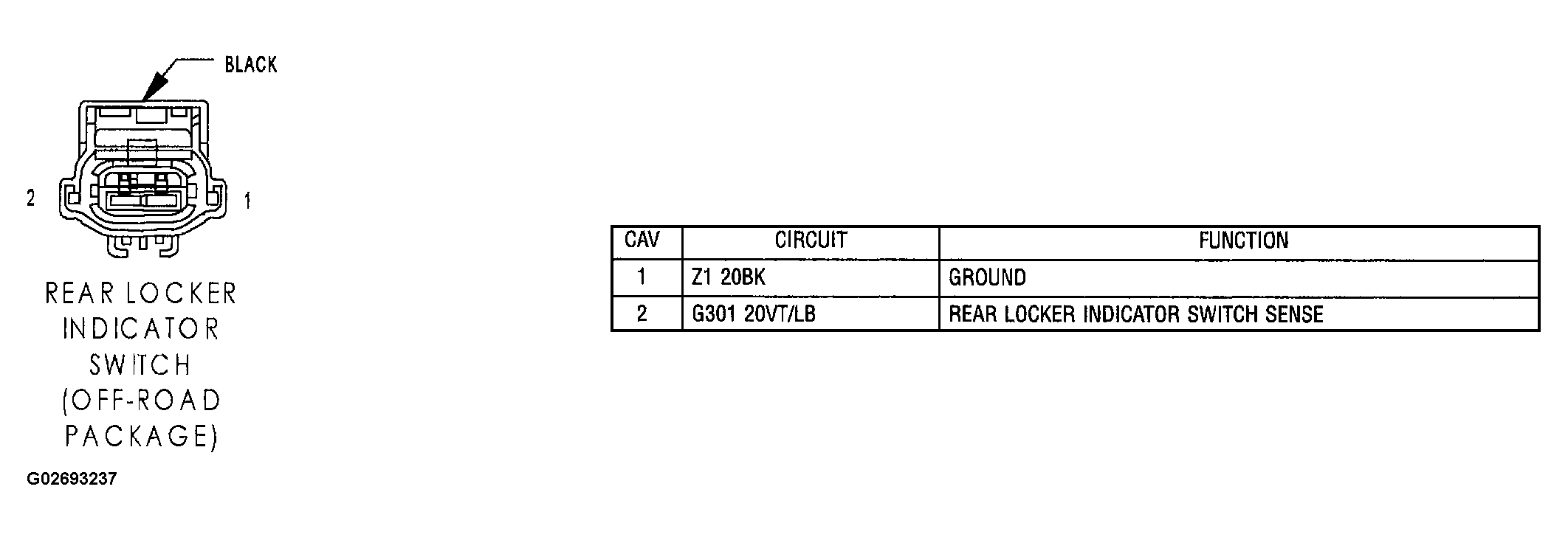

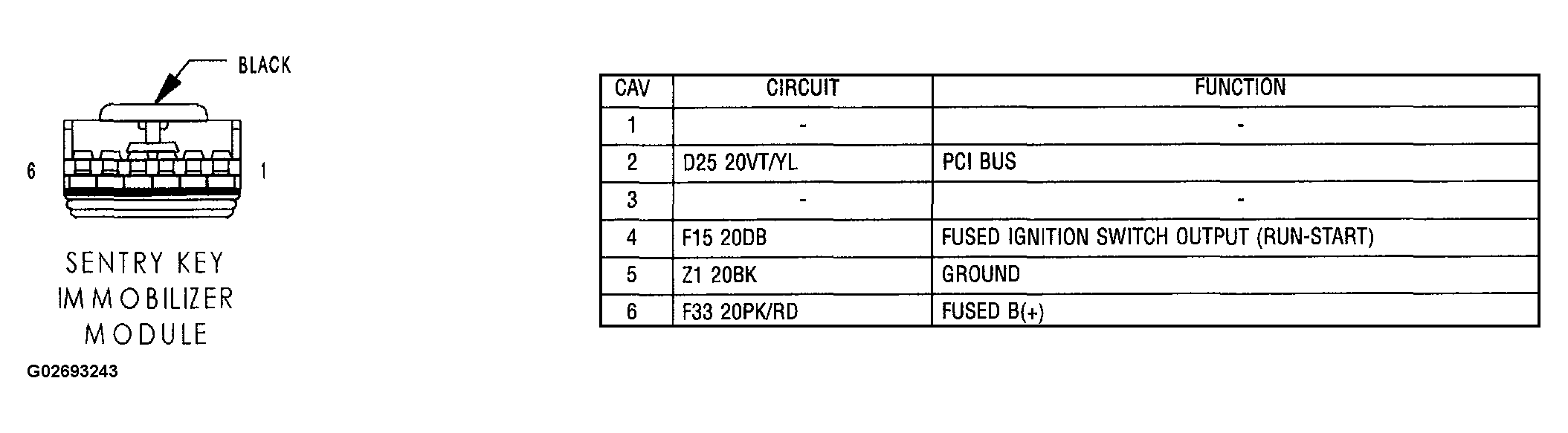

C5	-	-
