Heat Shields: Installation

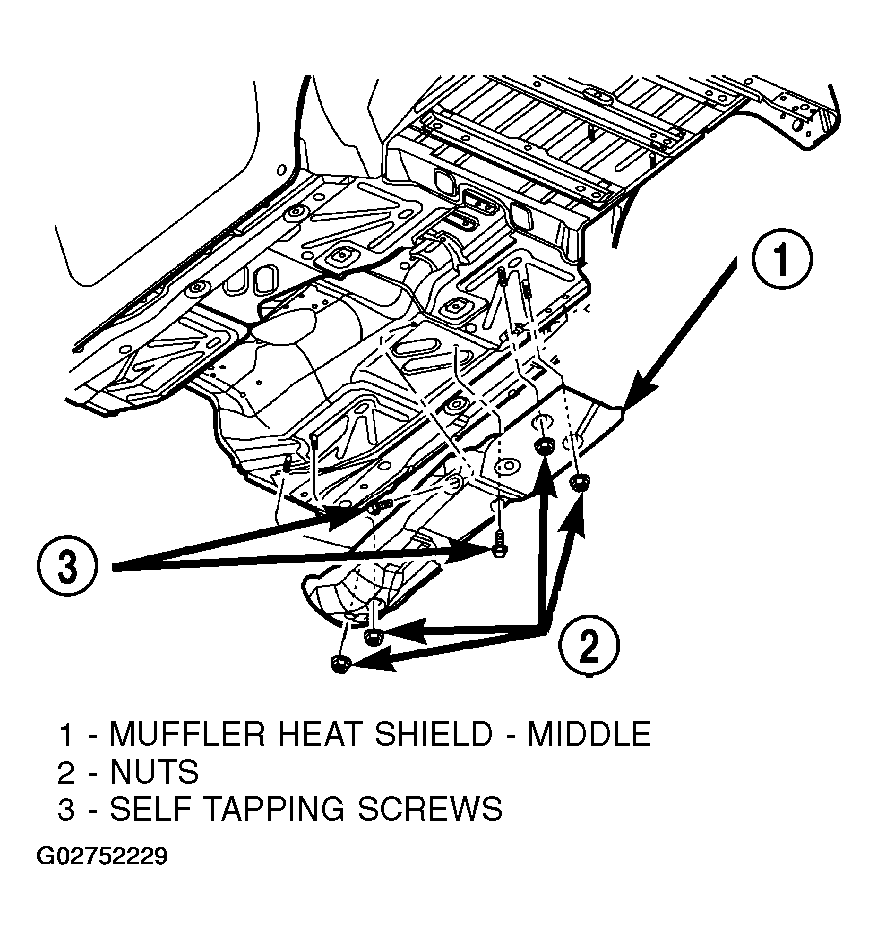

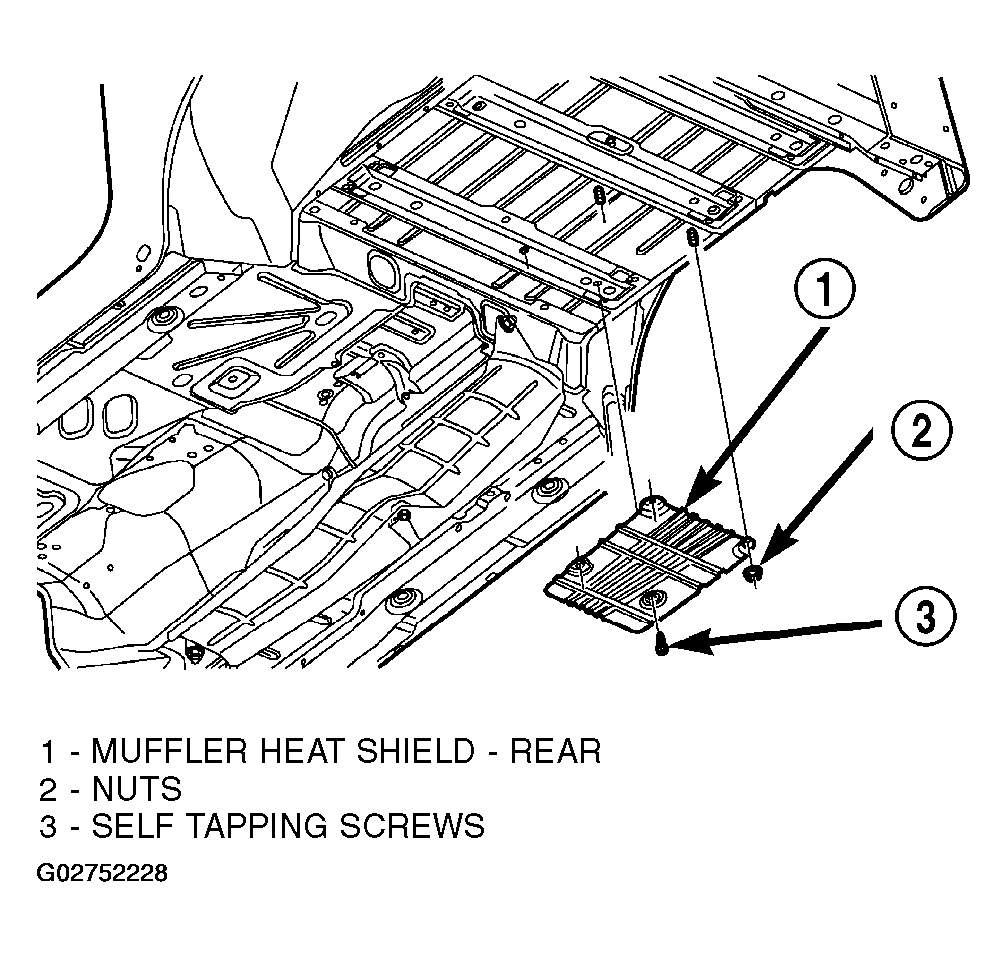

Position the heat shields to the floor pan or the frame and install the screws and/or nuts (Figure ) and (Figure ).
Tighten the nuts and/or screws to 45 N.m (33 ft. lbs.).
Lower the vehicle.
