Front Mount: Installation

The front mounts support the engine at each side. These supports are made of resilient rubber.

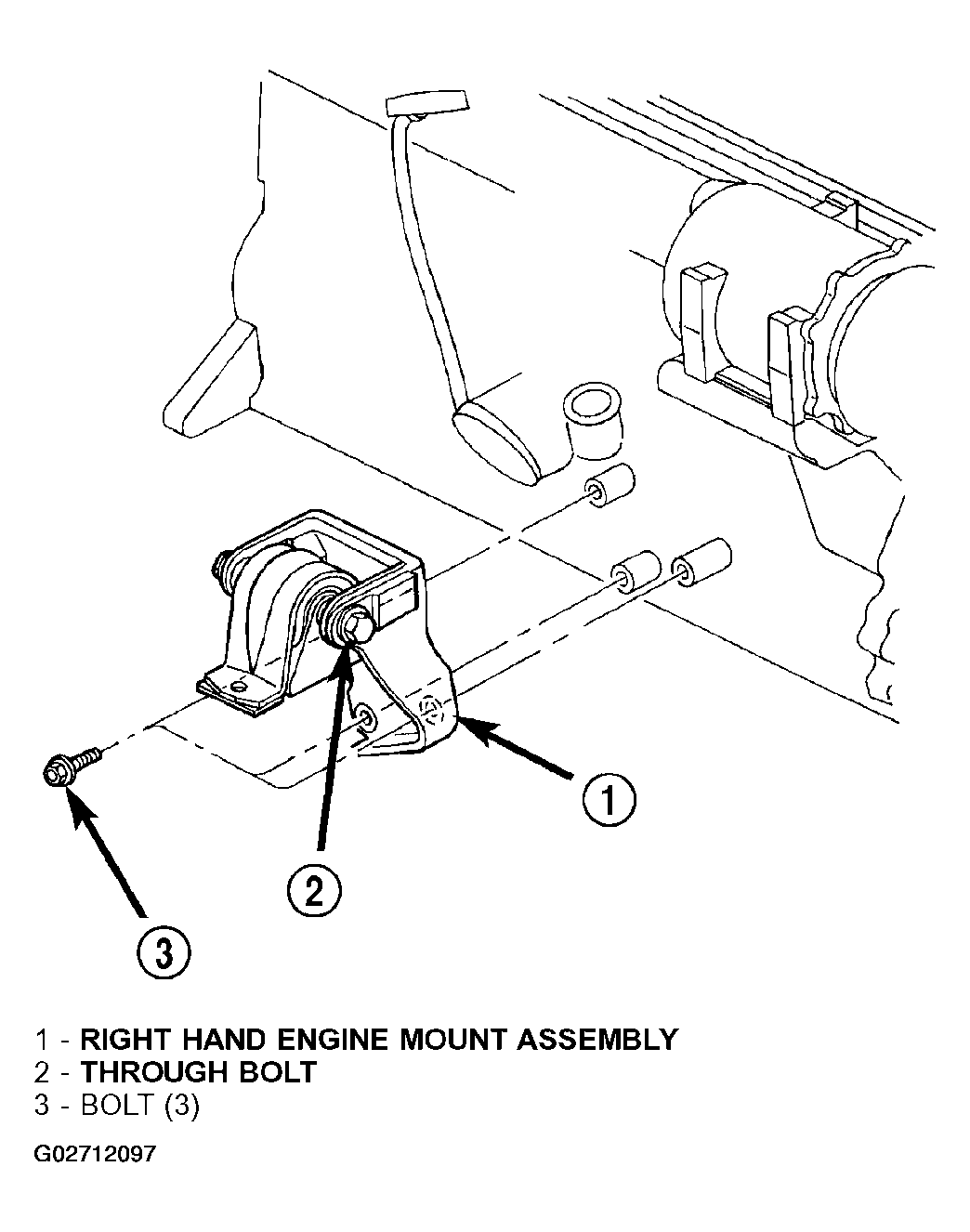

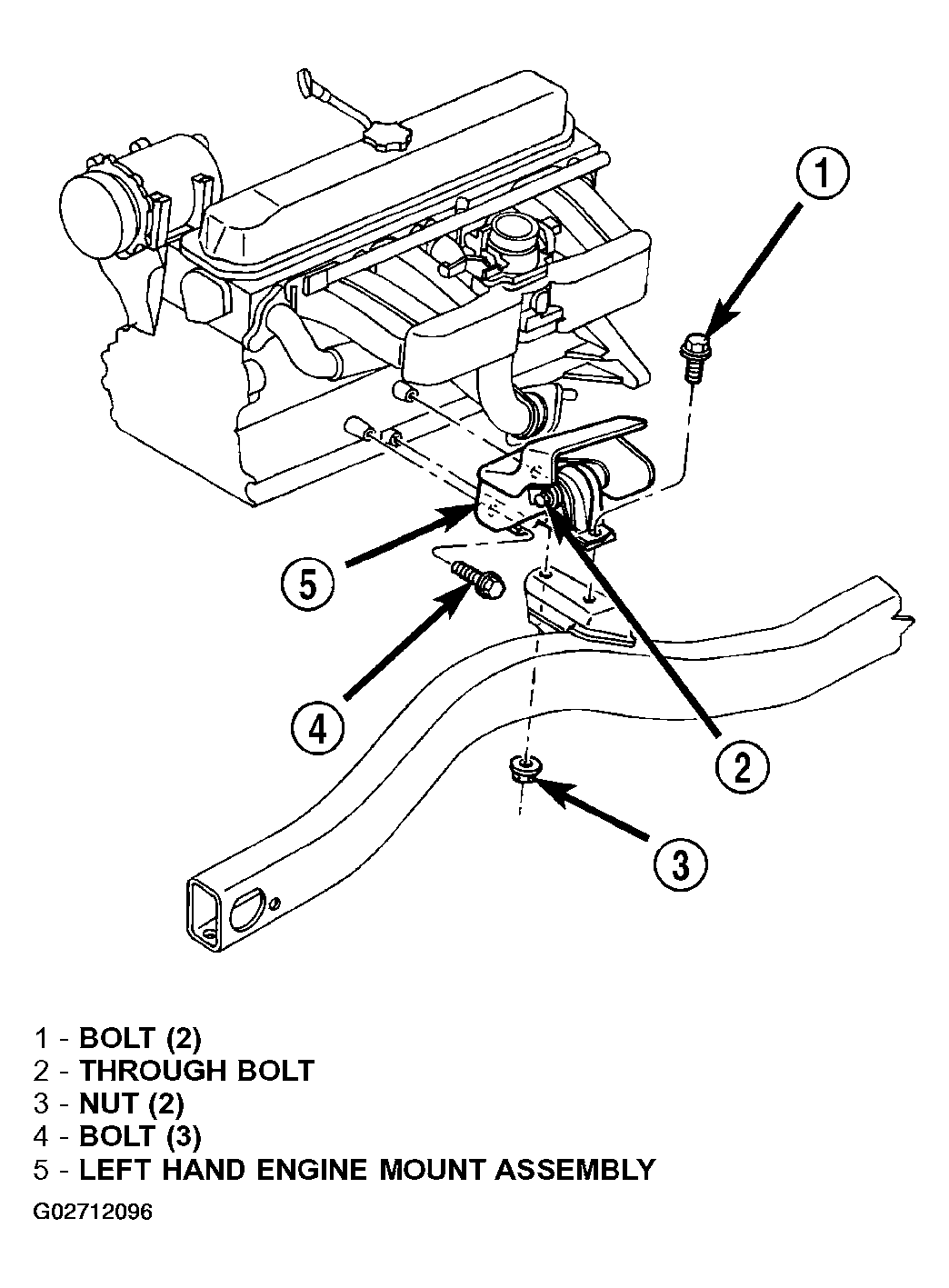

1. If the engine support bracket was removed, position the bracket onto the block and install the attaching bolts (Figure) (Figure). Tighten the bolts to 50 N.m (37 ft. lbs.) torque.
2. Place the insulator on the support bracket. Install the insulator retaining bolts and nuts. Tighten the bolts and nuts to 40 N.m (30 ft. lbs) torque.
3. Install the through bolt and the retaining nut. Tighten the through bolt nut to 48 N.m (35 ft. lbs.) torque.
4. Remove the engine support.
5. Lower the vehicle.
6. Connect negative cable to battery.
