Data Link Connector End View

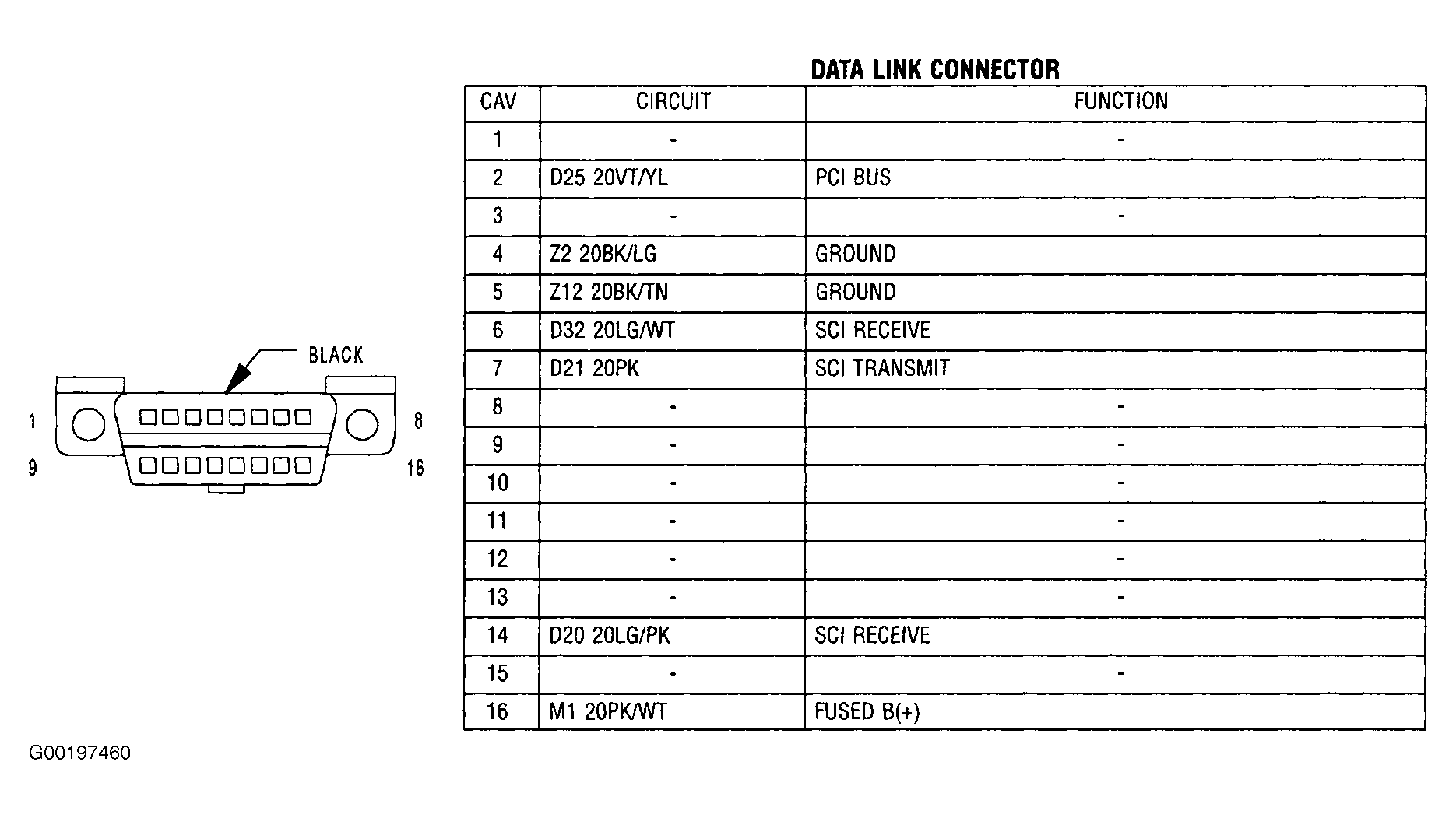

Fig 1: Identifying Data Link Connector
G00197460Courtesy of DAIMLERCHRYSLER CORPORATION
