Ignition Switch Harness Connector End View
Ignition Switch Harness Connector End View

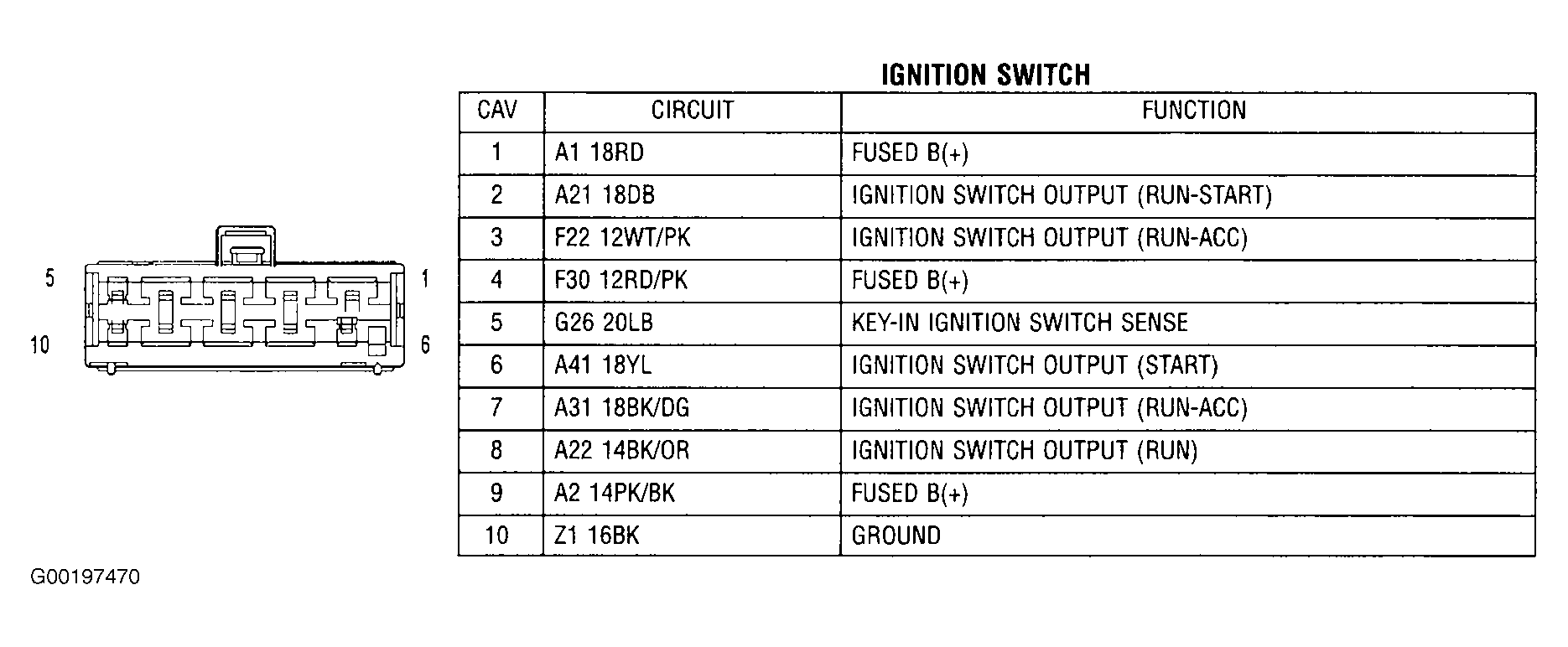

Fig 1: Identifying Ignition Switch Harness Connector
Courtesy of CHRYSLER CORP.
Courtesy of CHRYSLER CORP.
