Front Mount: Installation

WARNING: This page is about a different variant/trim than selected.

Install the insulator mount assembly (Fig 1) and (Fig 2).

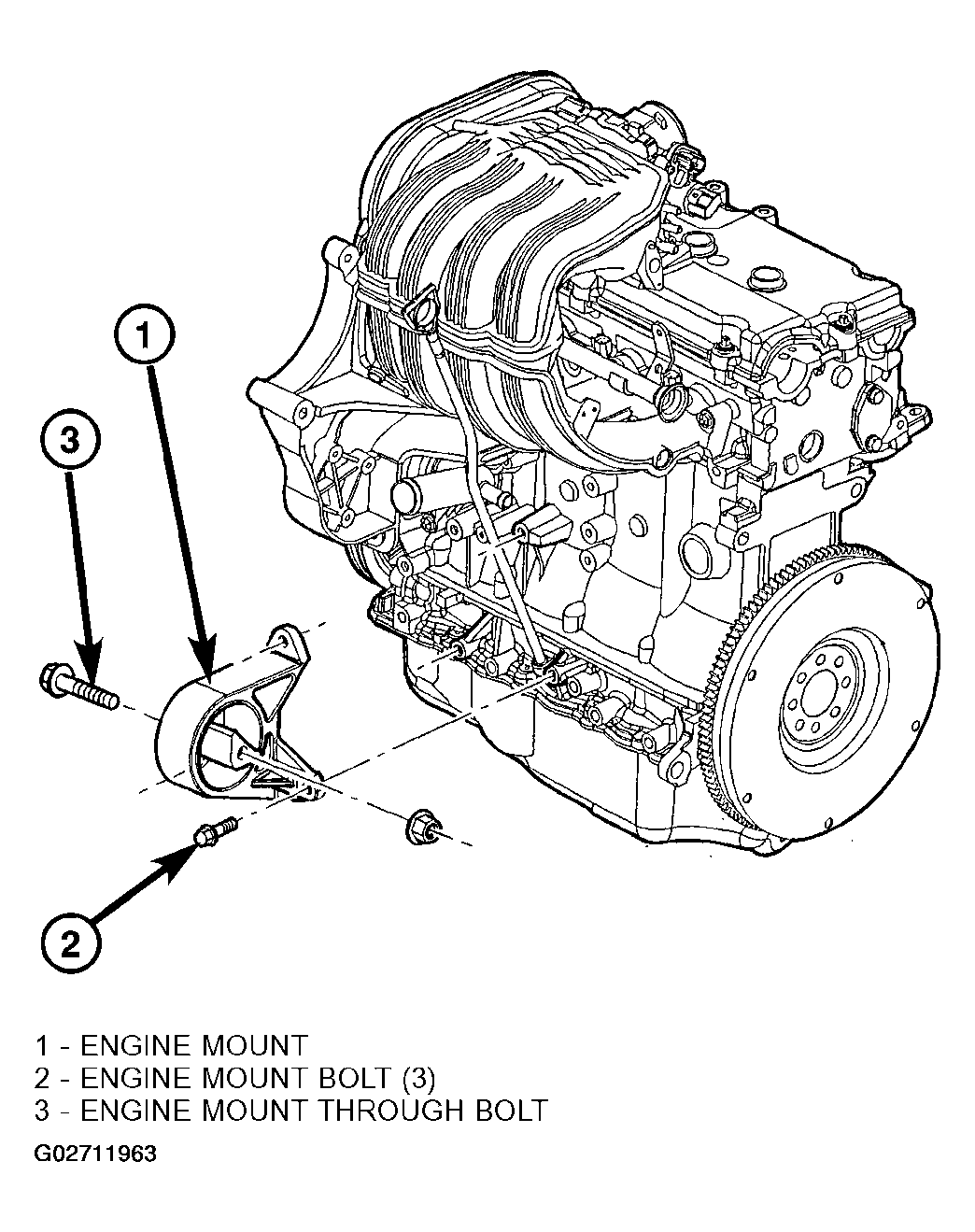

Fig 1: Installing LH Engine Mount Assembly
Courtesy of DAIMLERCHRYSLER CORP.

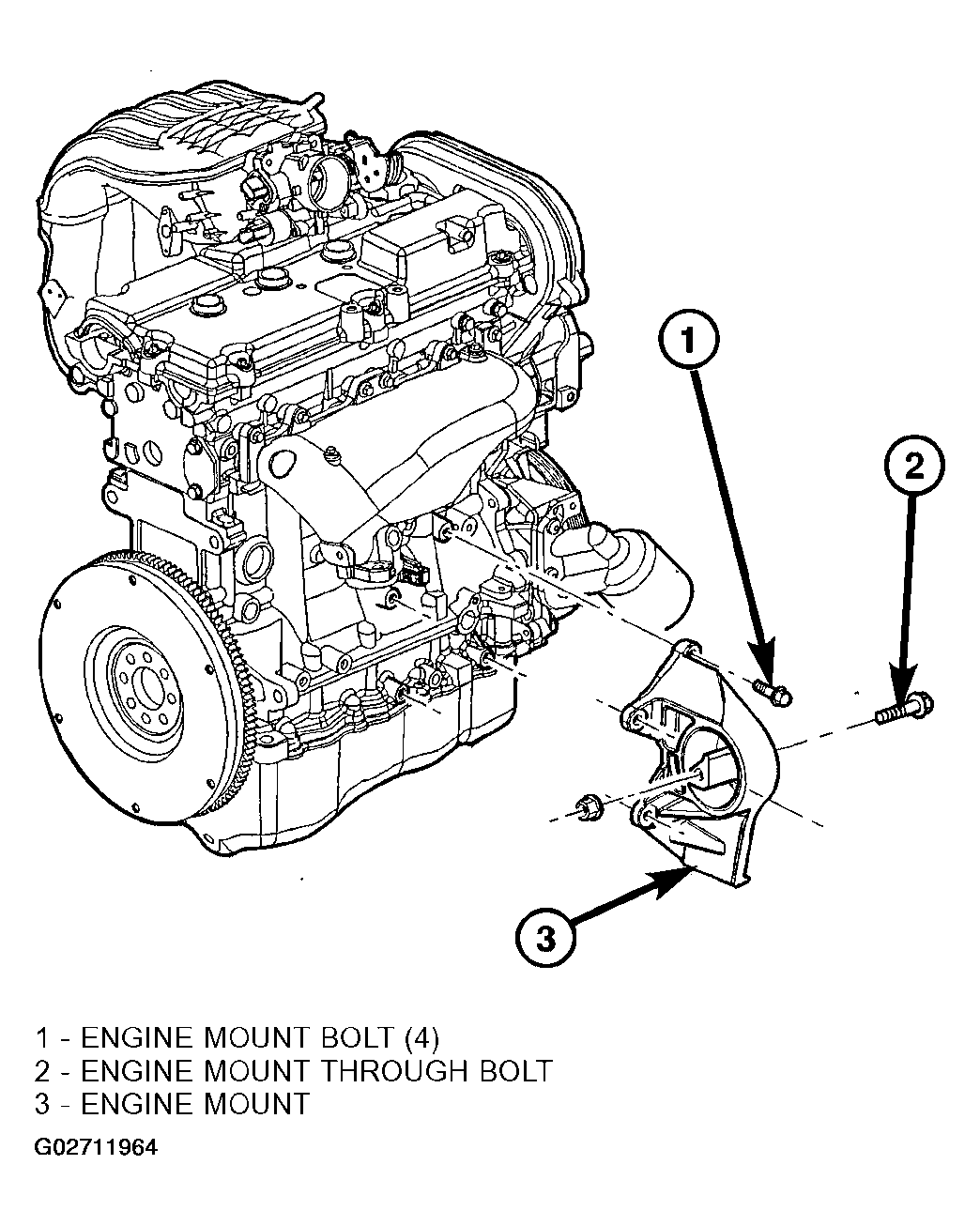

Fig 2: Installing RH Engine Mount Assembly
Courtesy of DAIMLERCHRYSLER CORP.
Tighten the mount to engine bolts.
Loosely install the front engine mount through bolt to the insulator.
Lower the engine.
Tighten the through bolt.
Lower the vehicle.
