Checking Fluid Levels

Transfer case has drain and fill plugs on rear of case. See Fig 1 and Fig 2 . Remove appropriate fill plug, and check fluid level. If fluid level is not even with bottom edge of fill hole when vehicle is in a level position, add appropriate fluid. See RECOMMENDED FLUIDS .

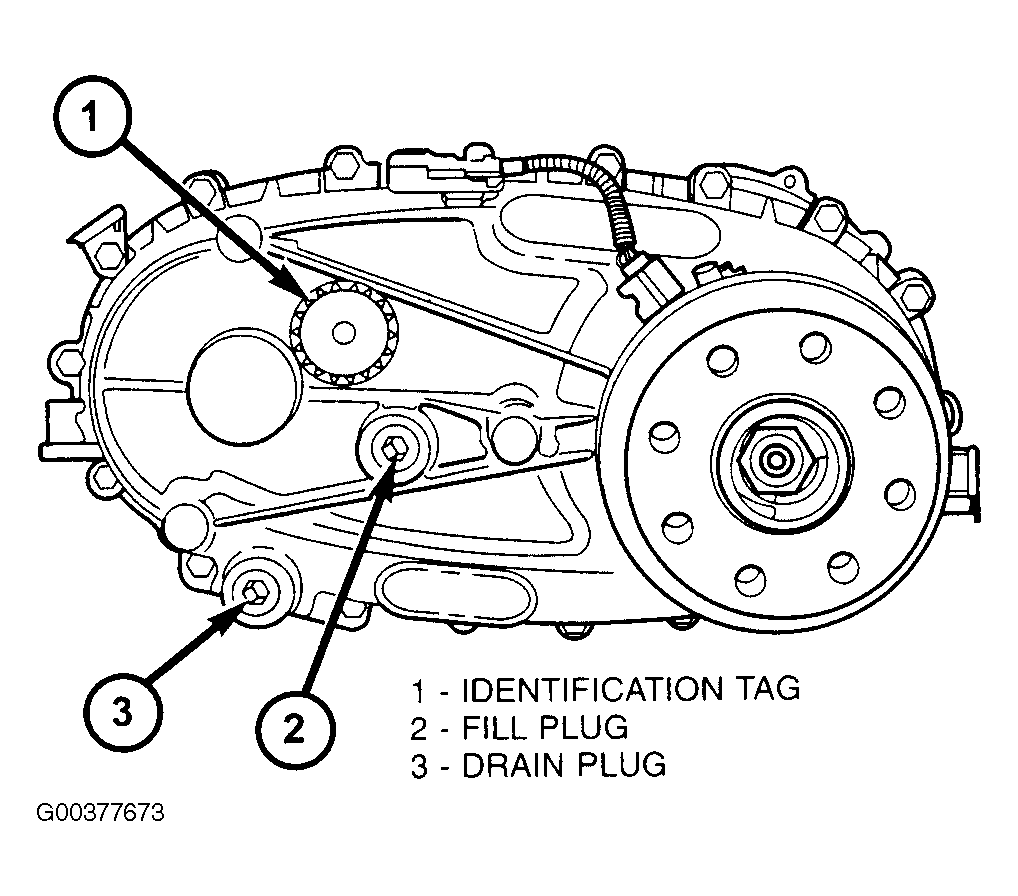

Fig 1: Identifying Transfer Case Drain & Fill Plugs (NV231 Transfer Case)

Courtesy of DAIMLERCHRYSLER CORPORATION

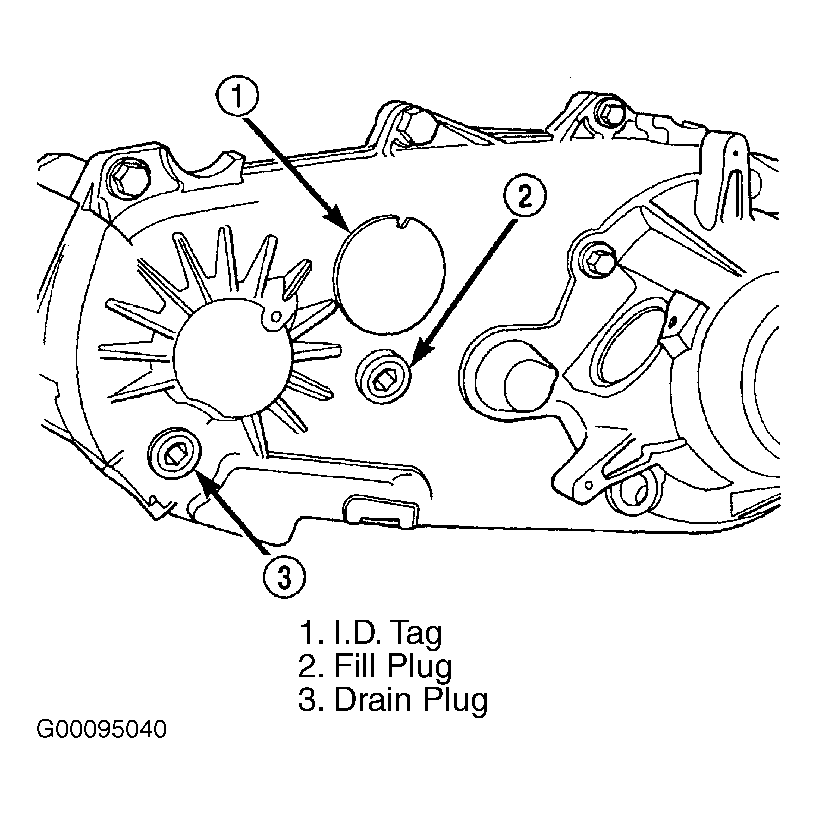

Fig 2: Identifying Transfer Case Drain & Fill Plugs (NV241 Transfer Case)

Courtesy of DAIMLERCHRYSLER CORPORATION
