Sunroof Control Module Connector End View
Sunroof Control Module Connector End View

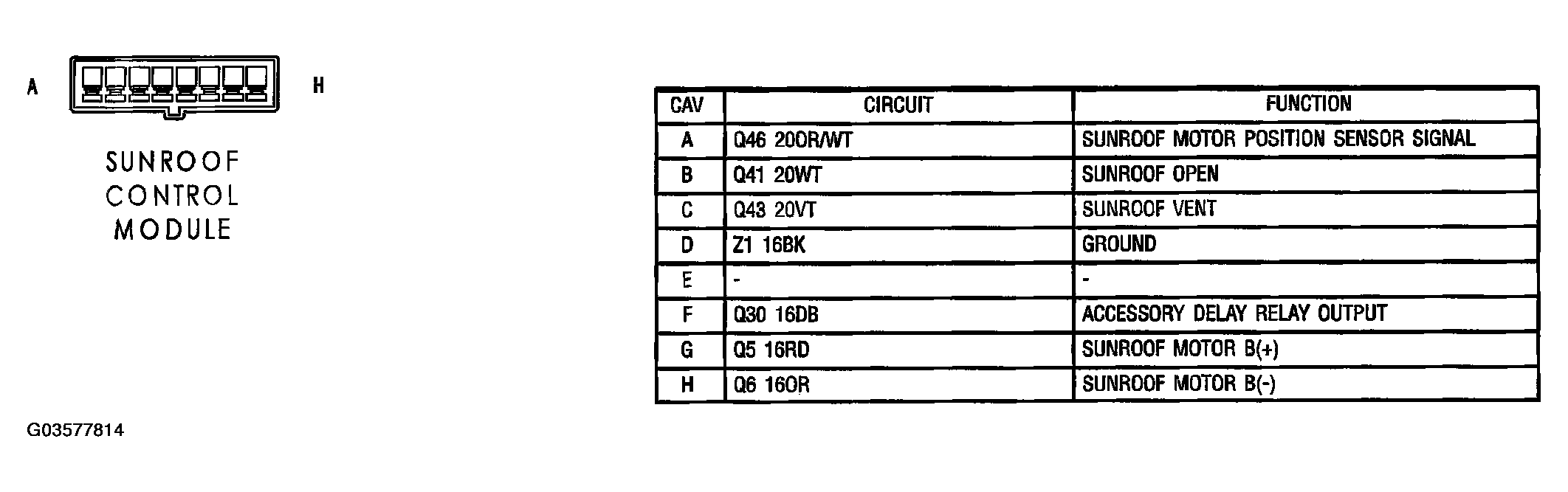

Fig 1: Sunroof Control Module Connector End View
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
