Transmission Control Module (4.7L) Connector End View
Transmission Control Module (4.7L) Connector End View

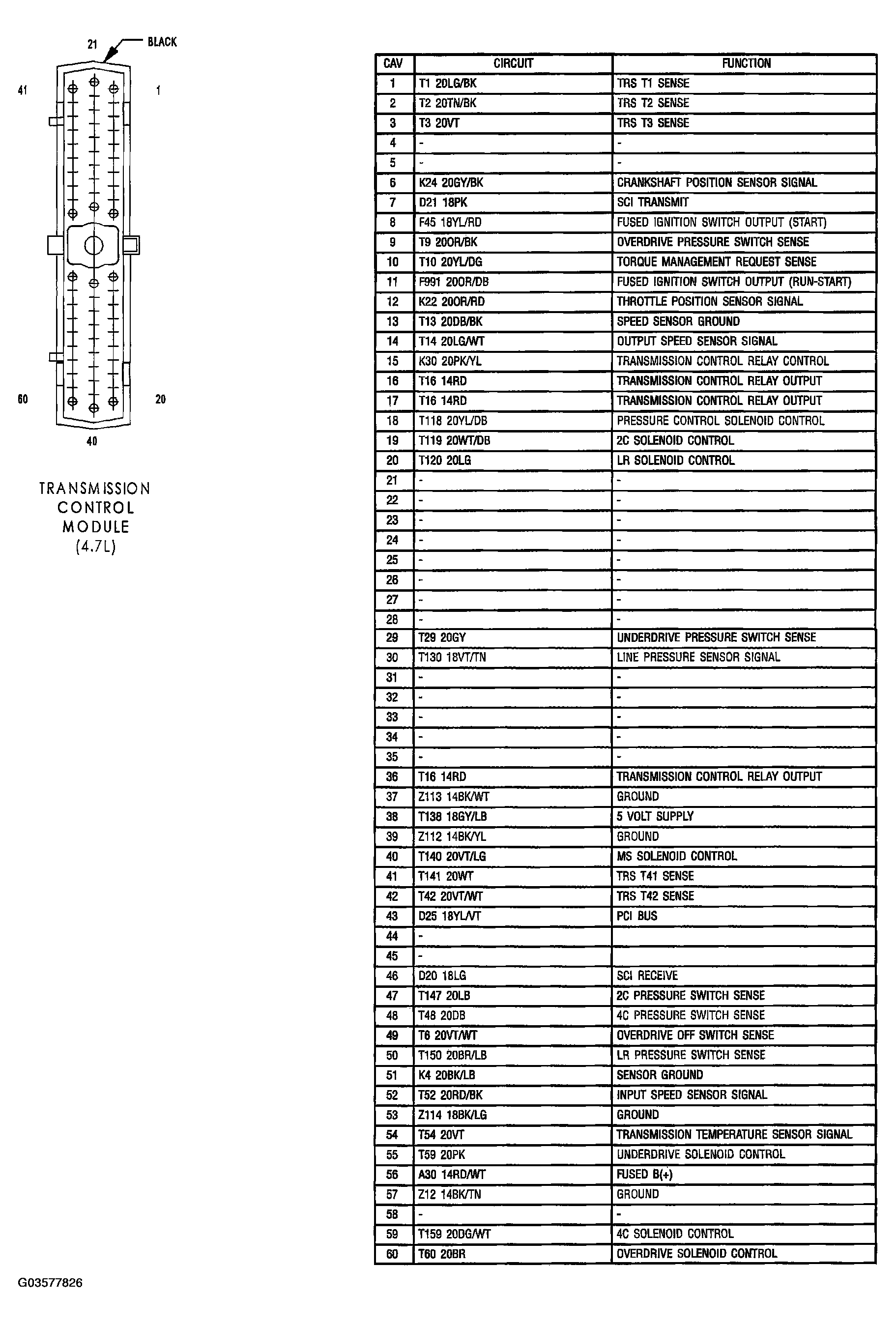

Fig 1: Transmission Control Module (4.7L) Connector End View
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
