Lumbar Control Switch: Removal

  1. Disconnect and isolate the battery negative cable.
  2. Remove the three screws that secure the outboard seat cushion side shield to the seat cushion frame.
  3. Pull the outboard seat cushion side shield away from the seat cushion frame far enough to access the power lumbar switch wire harness connector.
  4. Disconnect the power seat wire harness connector from the power lumbar switch connector receptacle (Fig 1 ).

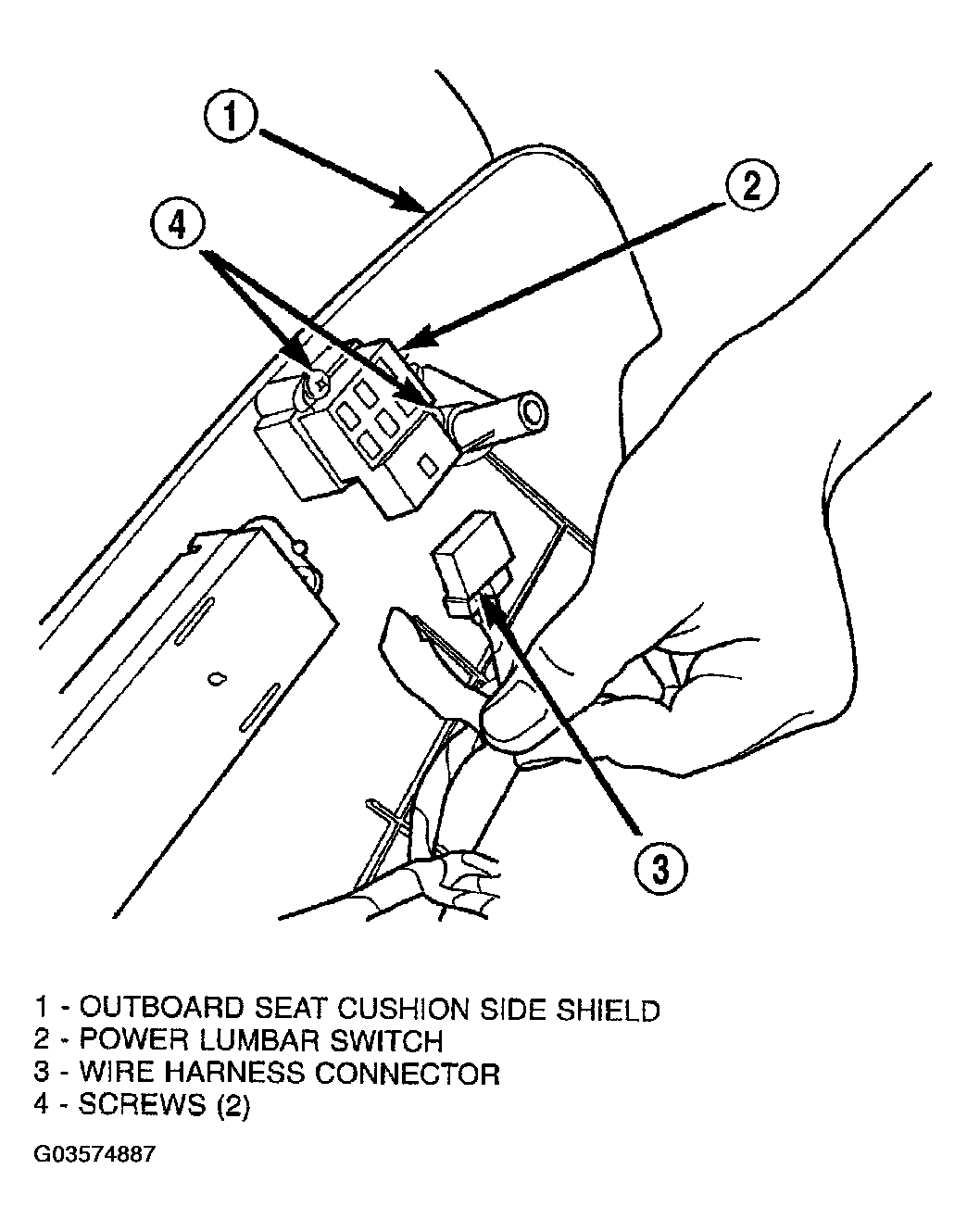

    Fig 1: Power Lumbar Switch Remove/Install
    G03574887Courtesy of DAIMLERCHRYSLER CORP.
  5. Remove the two screws that secure the power lumbar switch to the inside of the outboard seat cushion side shield.
  6. Remove the power lumbar switch from the outboard seat cushion side shield.
