Component Locations
›
Airbag System
Airbag System

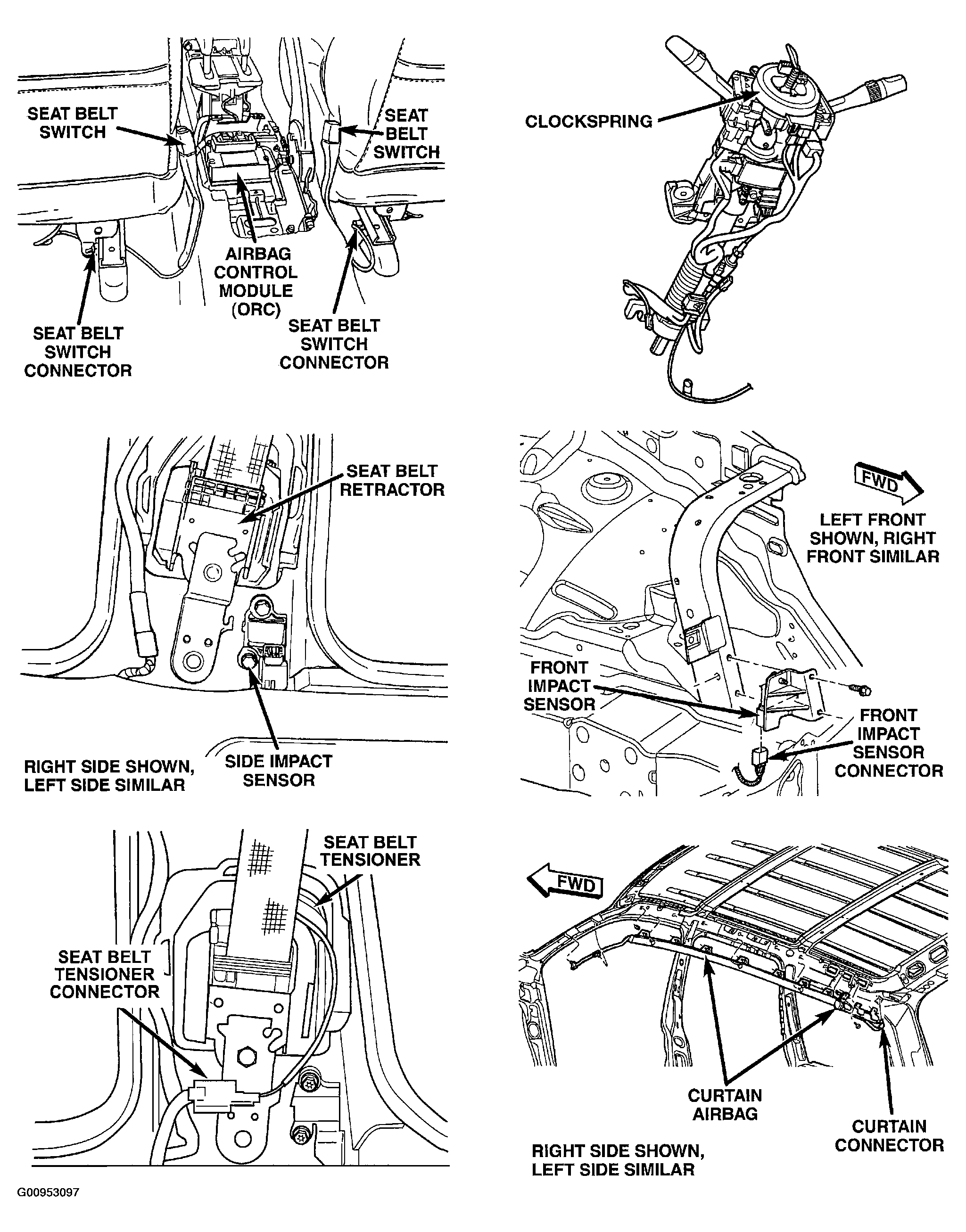

Fig 1: Identifying Airbag System Component Locations
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
