FixVault
Home
›
Jeep
›
2004
›
Grand Cherokee Overland, AWD
›
Repair and Diagnosis
›
Body & Frame
›
Windows
›
Body Diagnostic Procedures
›
Component Locations
›
Body Control Module & Junction Block
Body Control Module & Junction Block

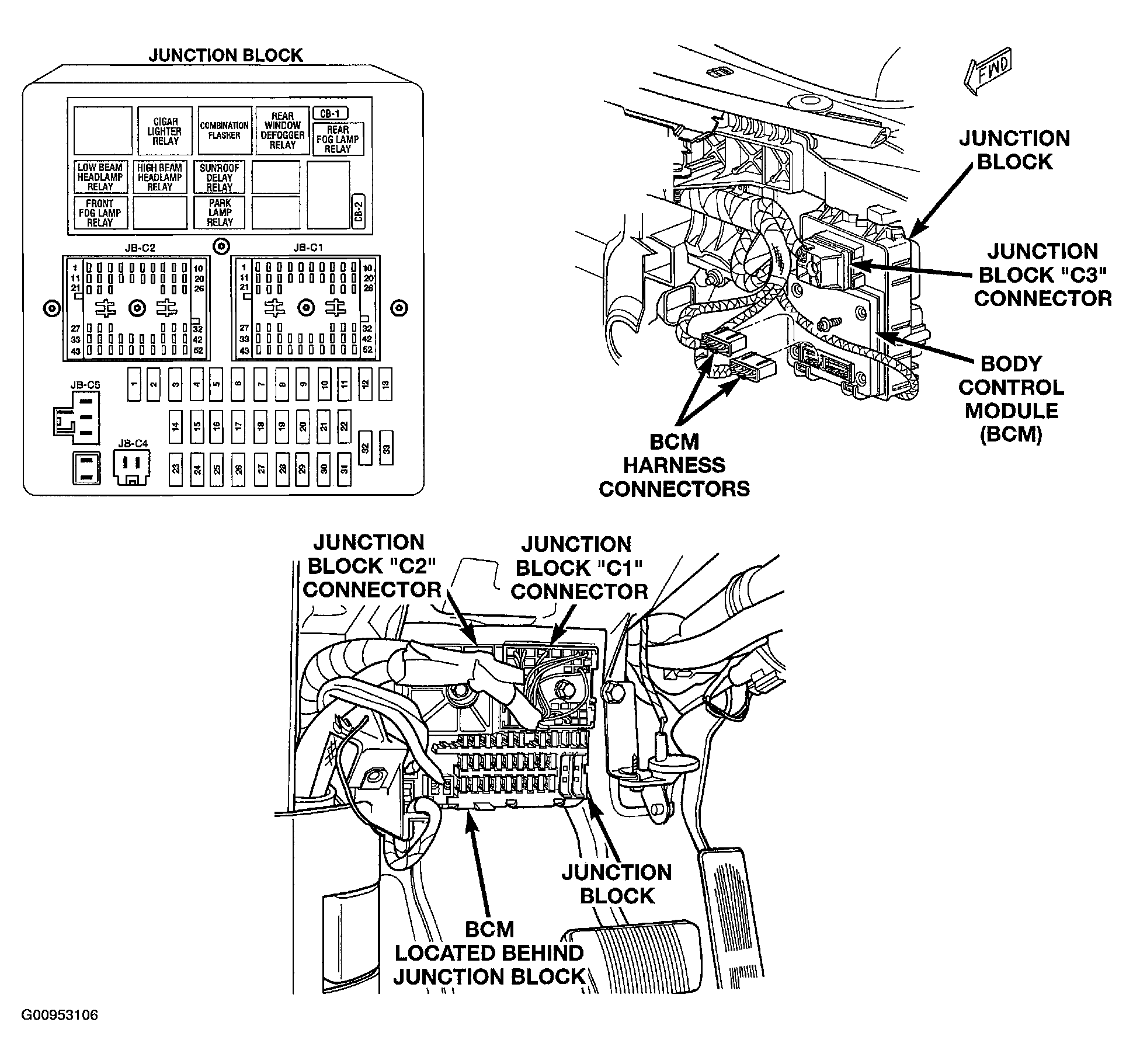

Fig 1: Identifying Body Control Module & Junction Block Component Locations
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
