Interior Lighting
Fig 1: Interior Lighting Schematic Diagram (1 Of 2)
Courtesy of DAIMLERCHRYSLER CORPORATION

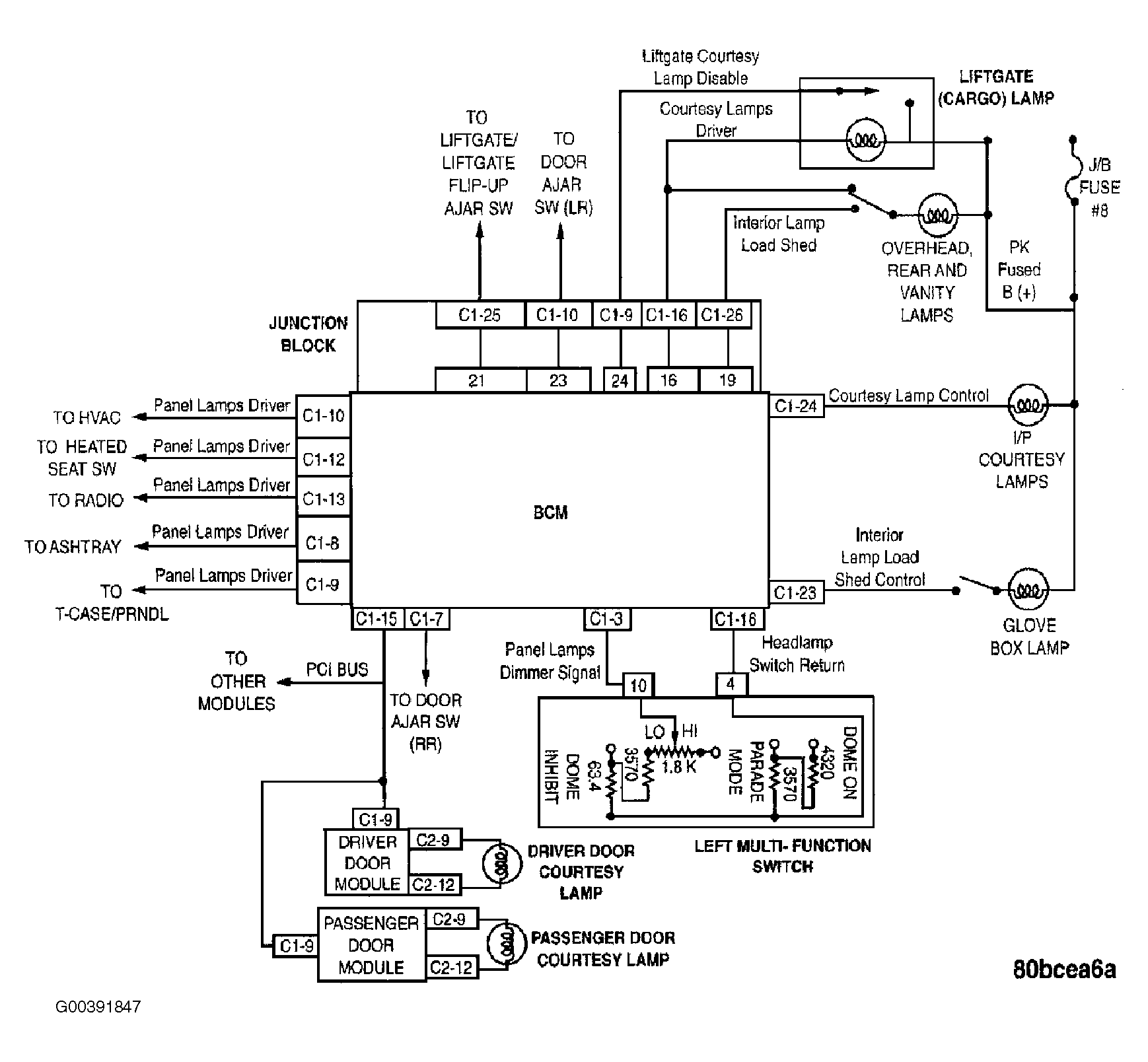

Fig 2: Interior Lighting Schematic Diagram (2 Of 2)
Courtesy of DAIMLERCHRYSLER CORPORATION
Courtesy of DAIMLERCHRYSLER CORPORATION
Courtesy of DAIMLERCHRYSLER CORPORATION
