Windshield Wiper System

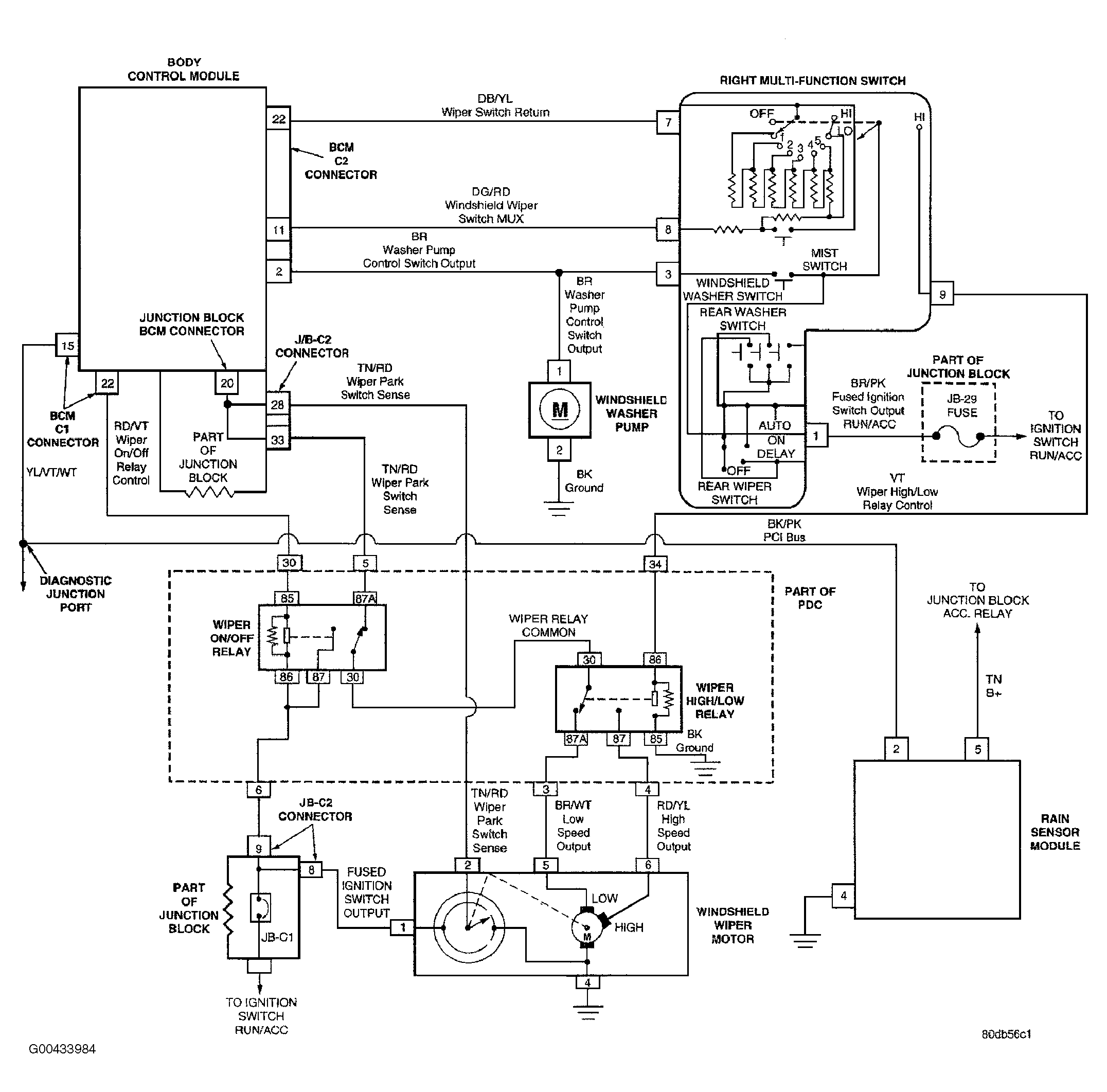

Fig 1: Front Wiper Schematic Diagram
G00433984Courtesy of DAIMLERCHRYSLER CORPORATION

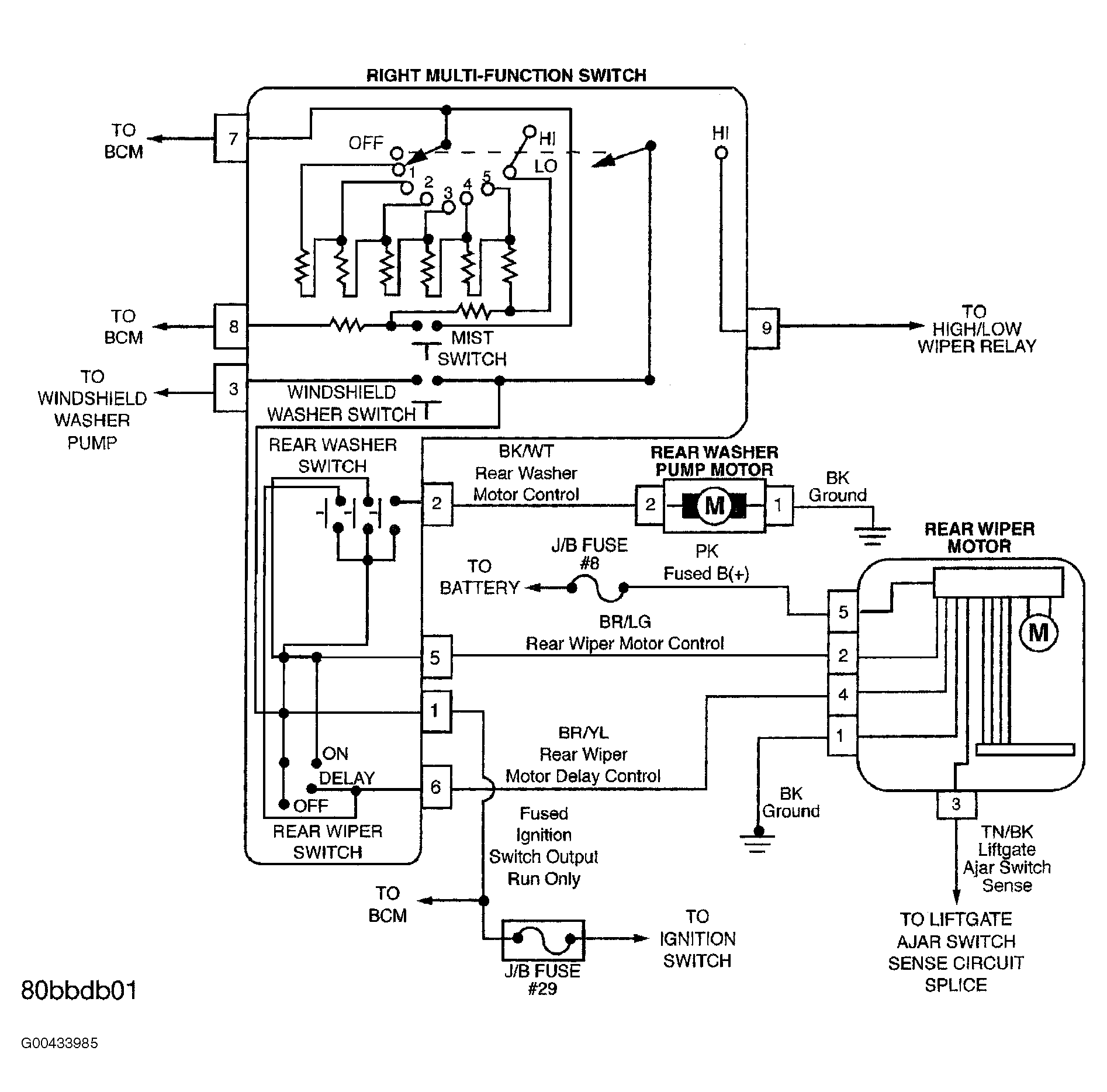

Fig 2: Rear Wiper System Schematic Diagram
G00433985Courtesy of DAIMLERCHRYSLER CORPORATION
