Electronic Speed Control Servo Connector End View
Electronic Speed Control Servo Connector End View

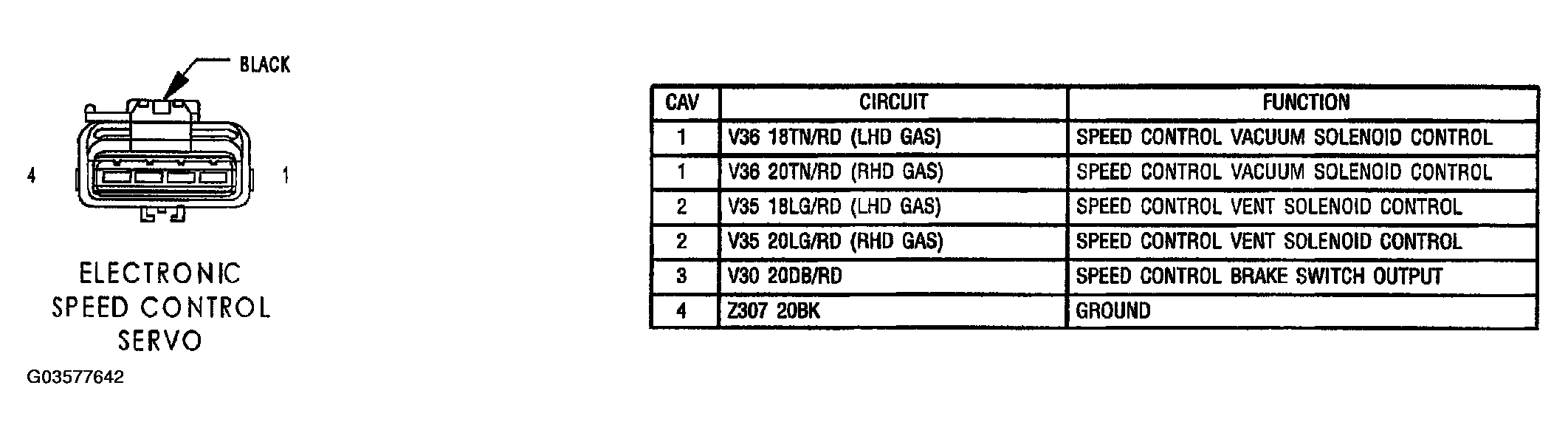

Fig 1: Electronic Speed Control Servo Connector End View
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
