Engine Control Module C2 (Diesel) Connector End View
Engine Control Module C2 (Diesel) Connector End View

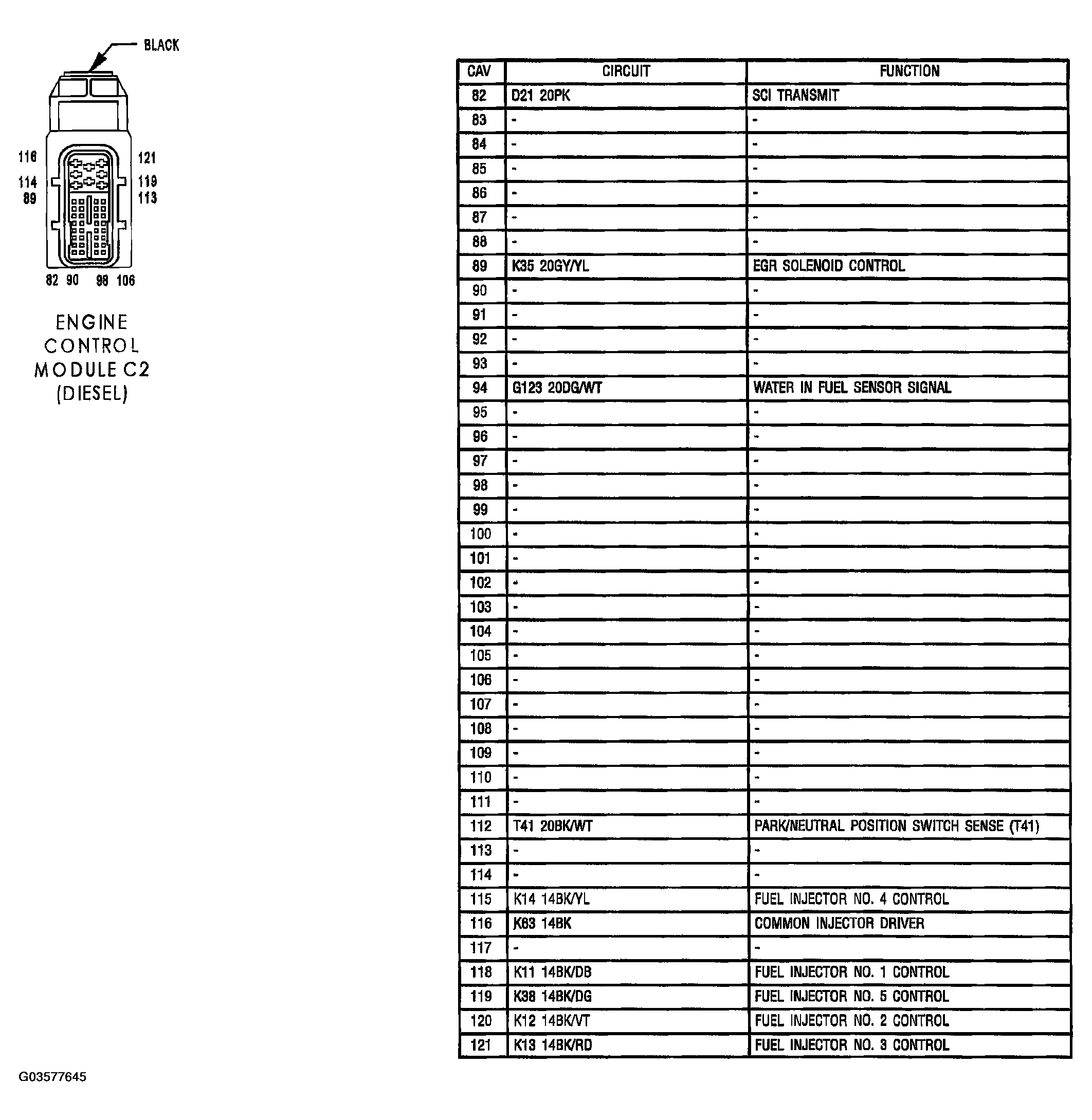

Fig 1: Engine Control Module (Diesel) Connector End View (C2)
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
