Engine Firing Order - 4.0L 6-Cylinder Engine

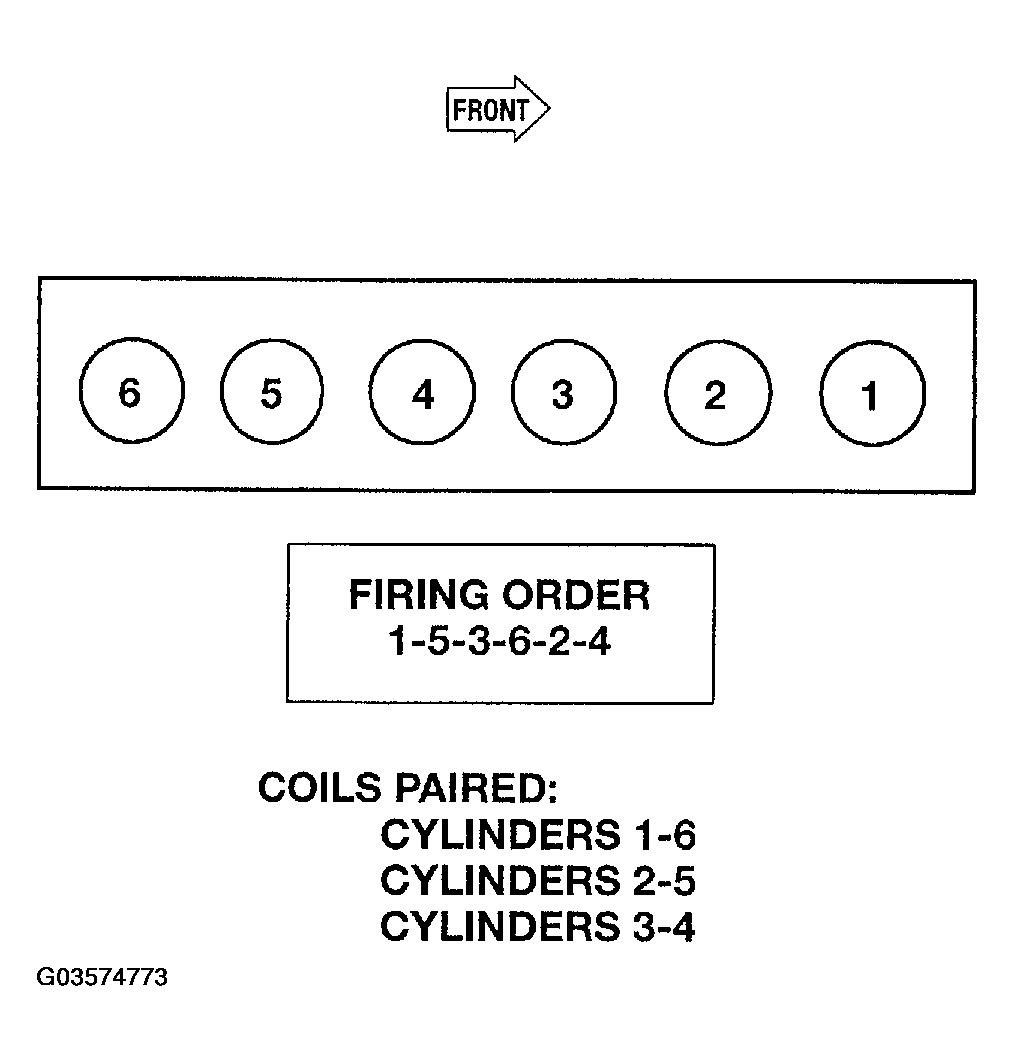

Fig 1: Firing Order - 4.0L
G03574773Courtesy of DAIMLERCHRYSLER CORP.
