Engine Firing Order-4.7L V-8 Engine

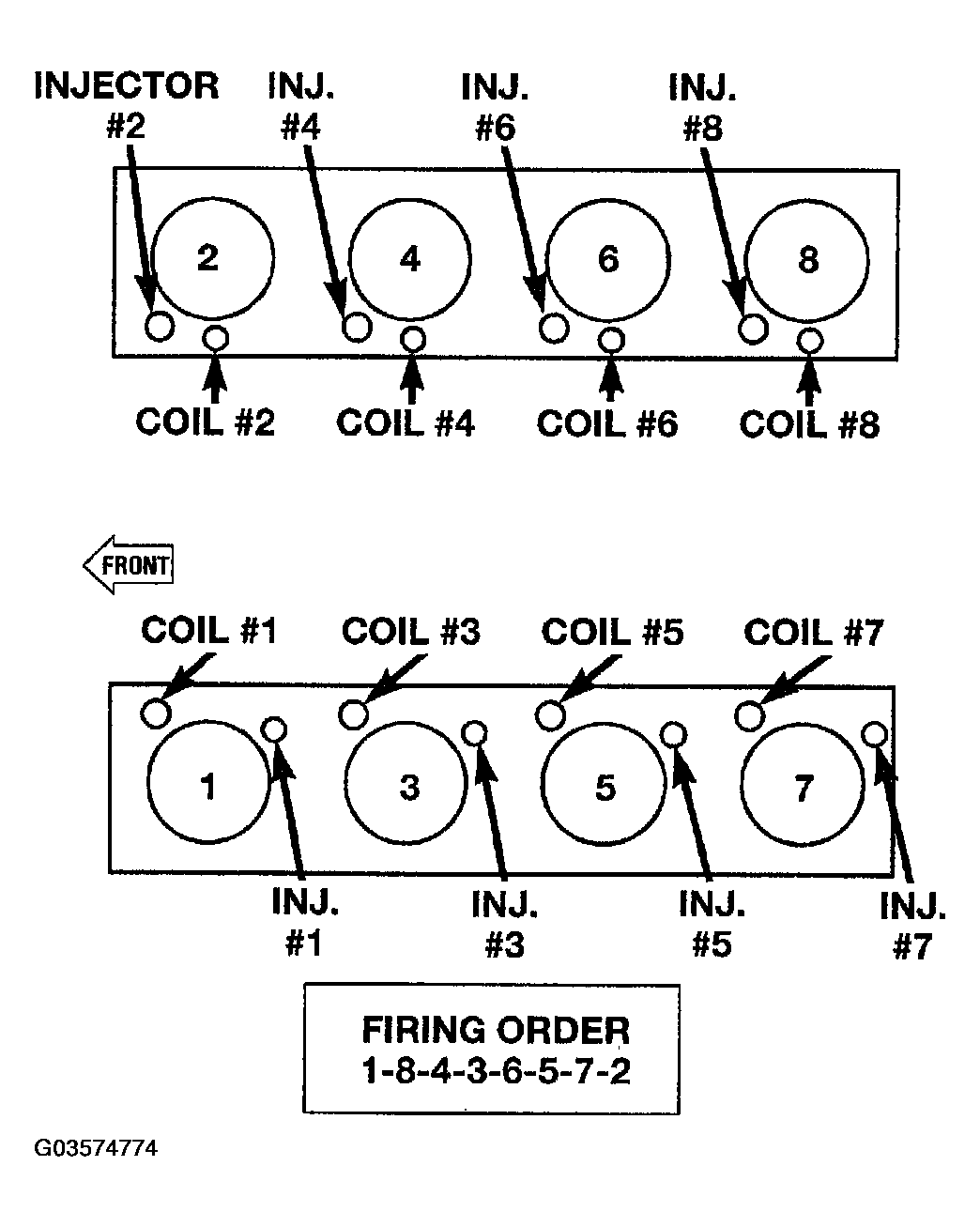

Fig 1: Firing Order - 4.7L V-8
G03574774Courtesy of DAIMLERCHRYSLER CORP.
