Diagnostic Procedure

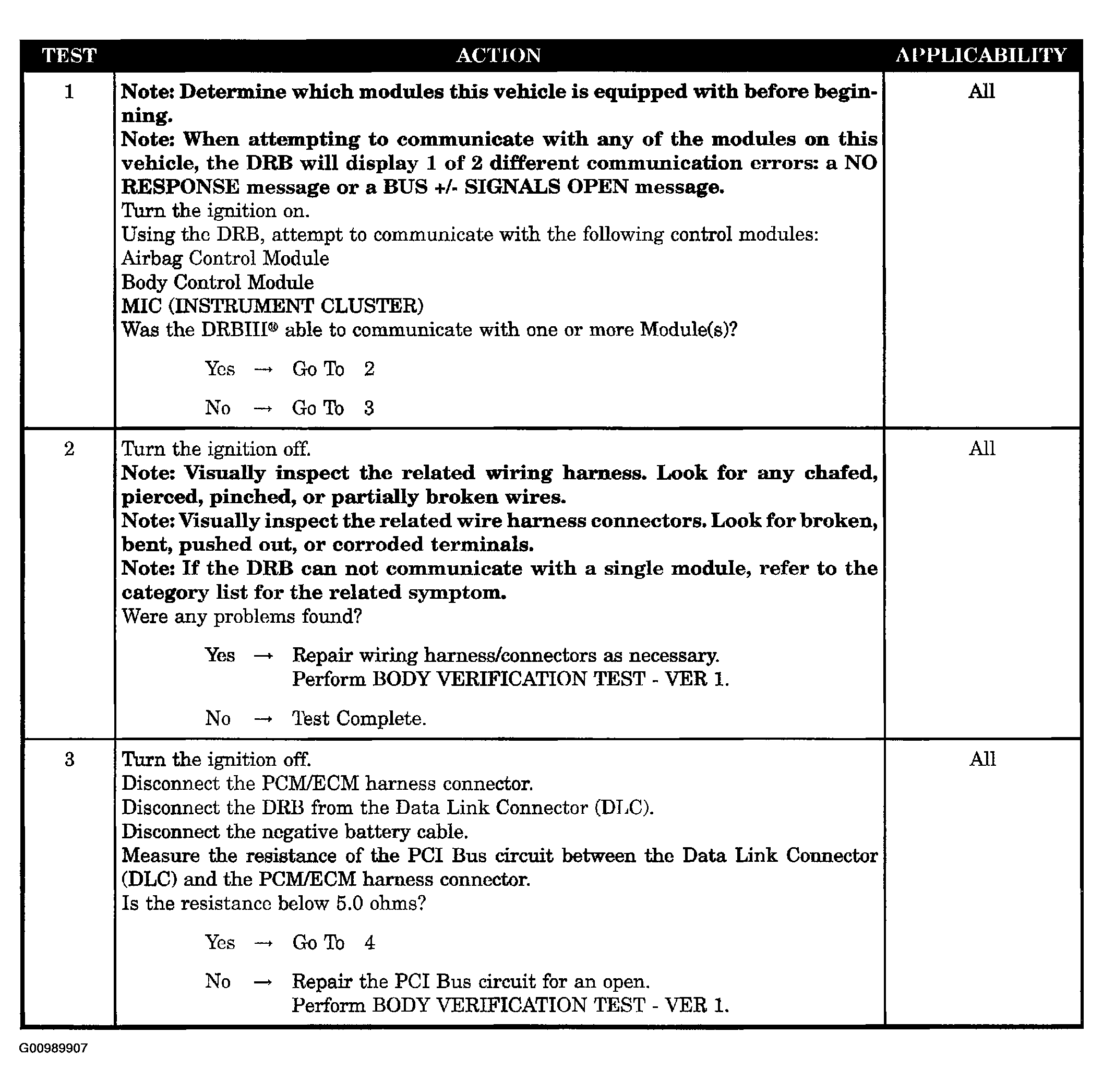

Fig 1: Diagnosis Procedure - PCI Bus Communication Failure (Test 1 To 3)

Courtesy of DAIMLERCHRYSLER CORP.

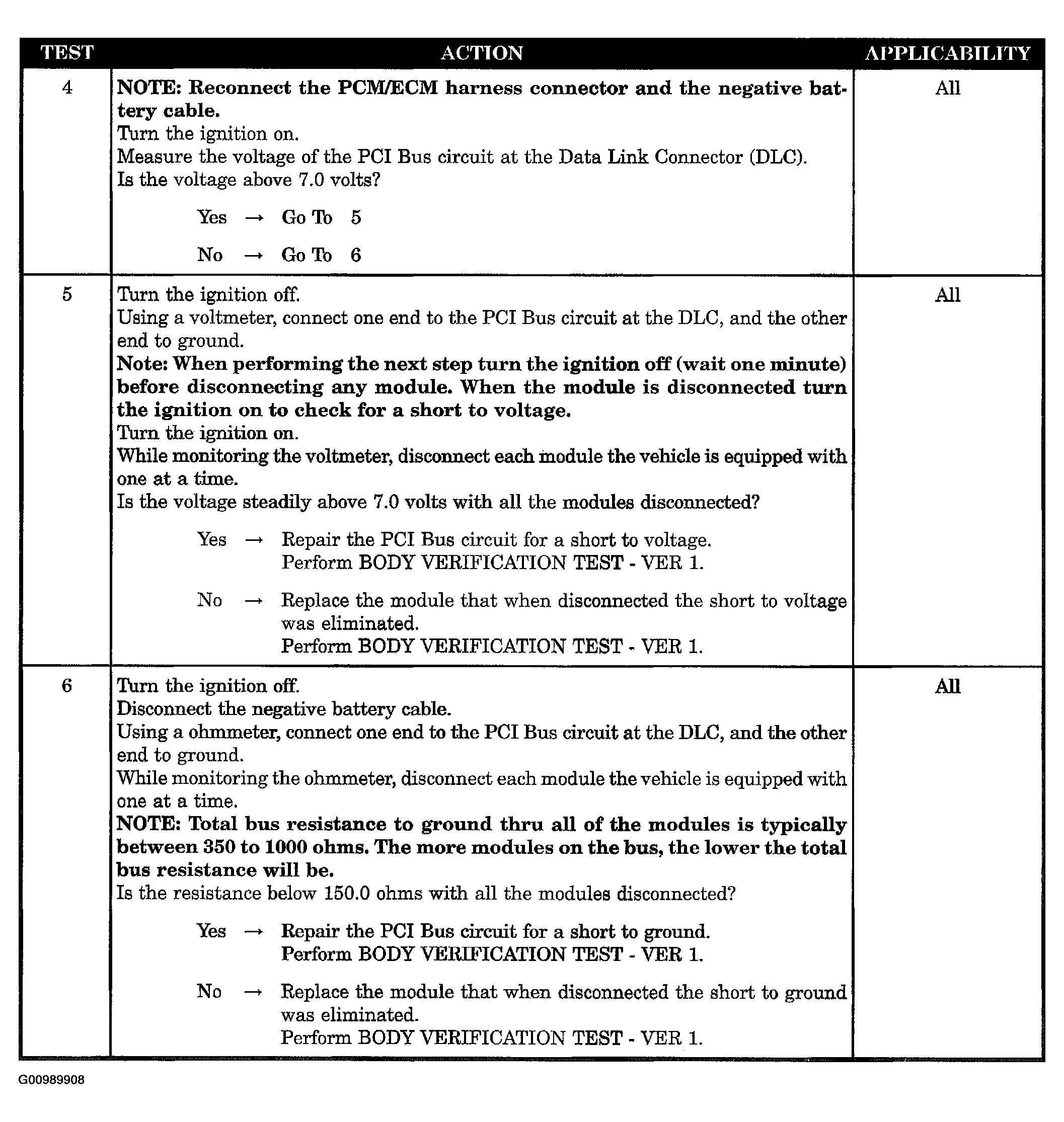

Fig 2: Diagnosis Procedure - PCI Bus Communication Failure (Test 4 To 6)

Courtesy of DAIMLERCHRYSLER CORP.
