Jeep
›
2004
›
Grand Cherokee Overland, AWD
›
Repair and Diagnosis
›
Engine Performance
›
System
›
Powertrain Diagnostic Procedures
›
Component Locations
›
Control Modules And PDC
Control Modules And PDC
Fig 1: Identifying Module
Courtesy of DAIMLERCHRYSLER CORP.

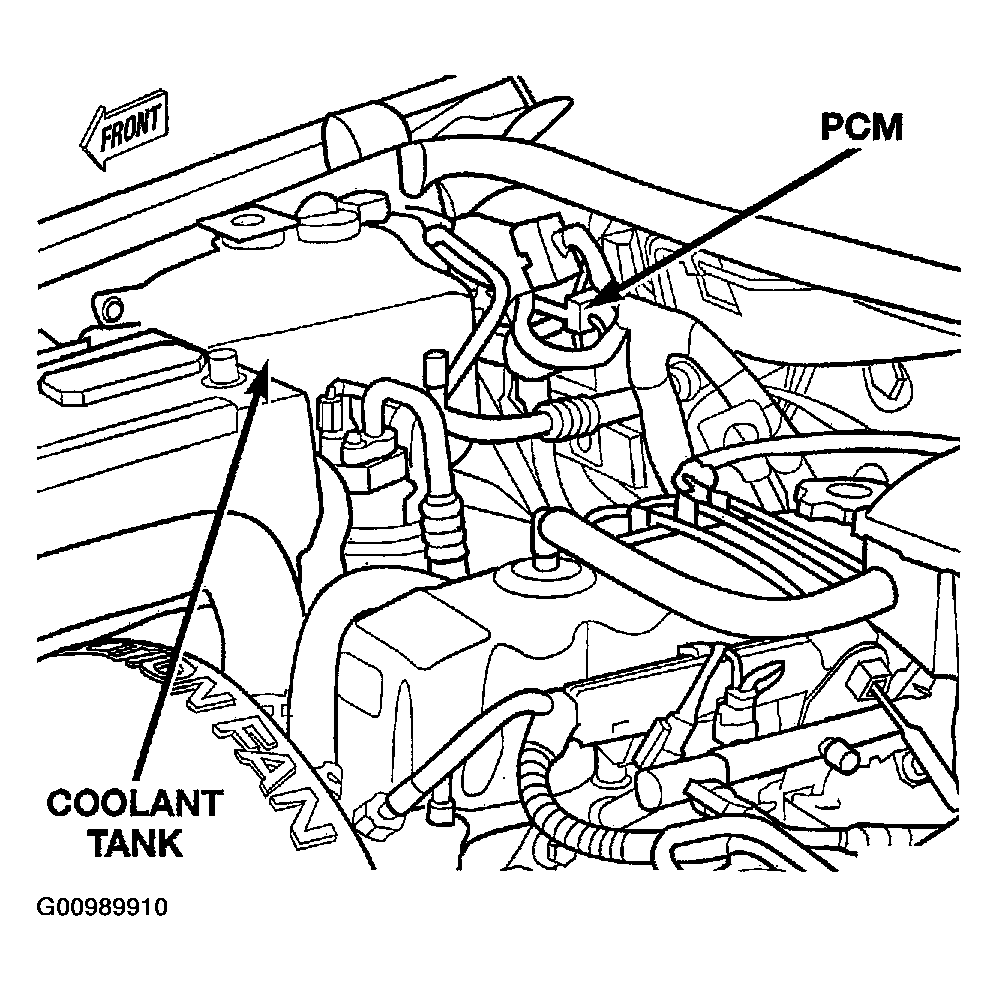

Fig 2: Locating PCM
Courtesy of DAIMLERCHRYSLER CORP.

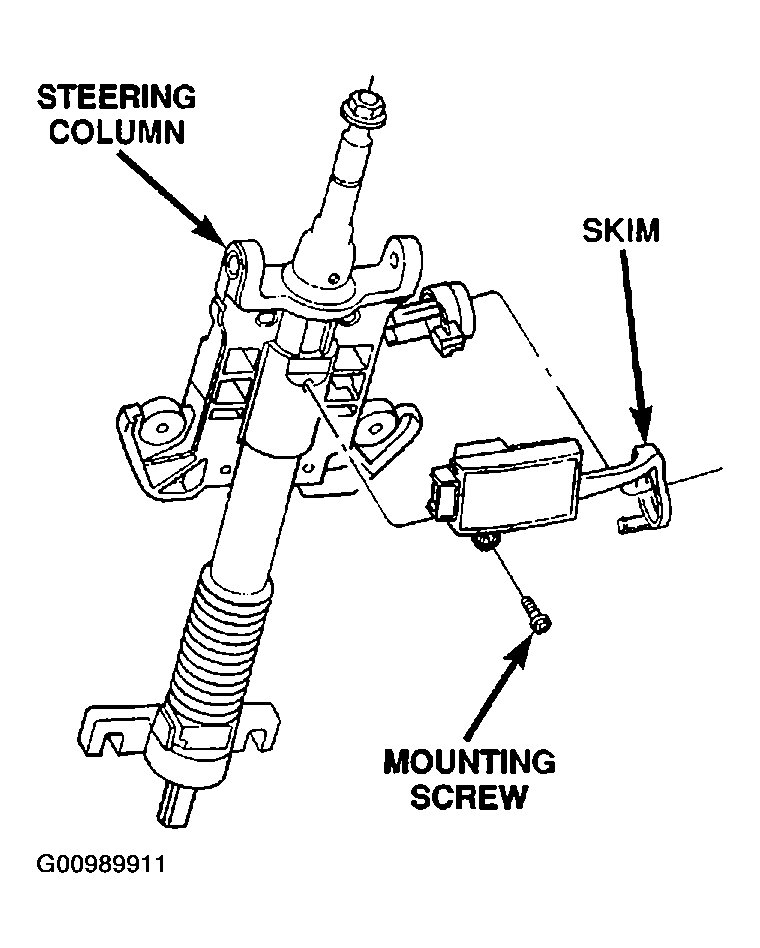

Fig 3: Locating SKIM
Courtesy of DAIMLERCHRYSLER CORP.

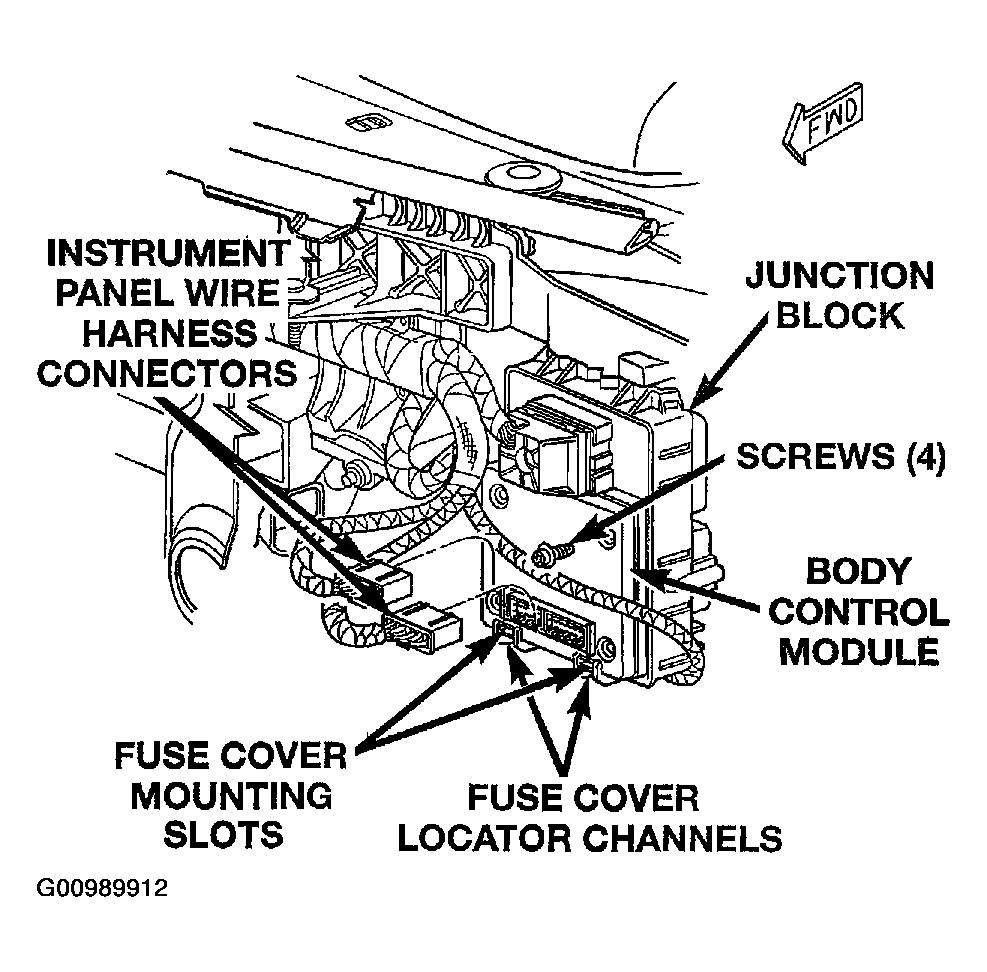

Fig 4: Locating Body Control Module
Courtesy of DAIMLERCHRYSLER CORP.

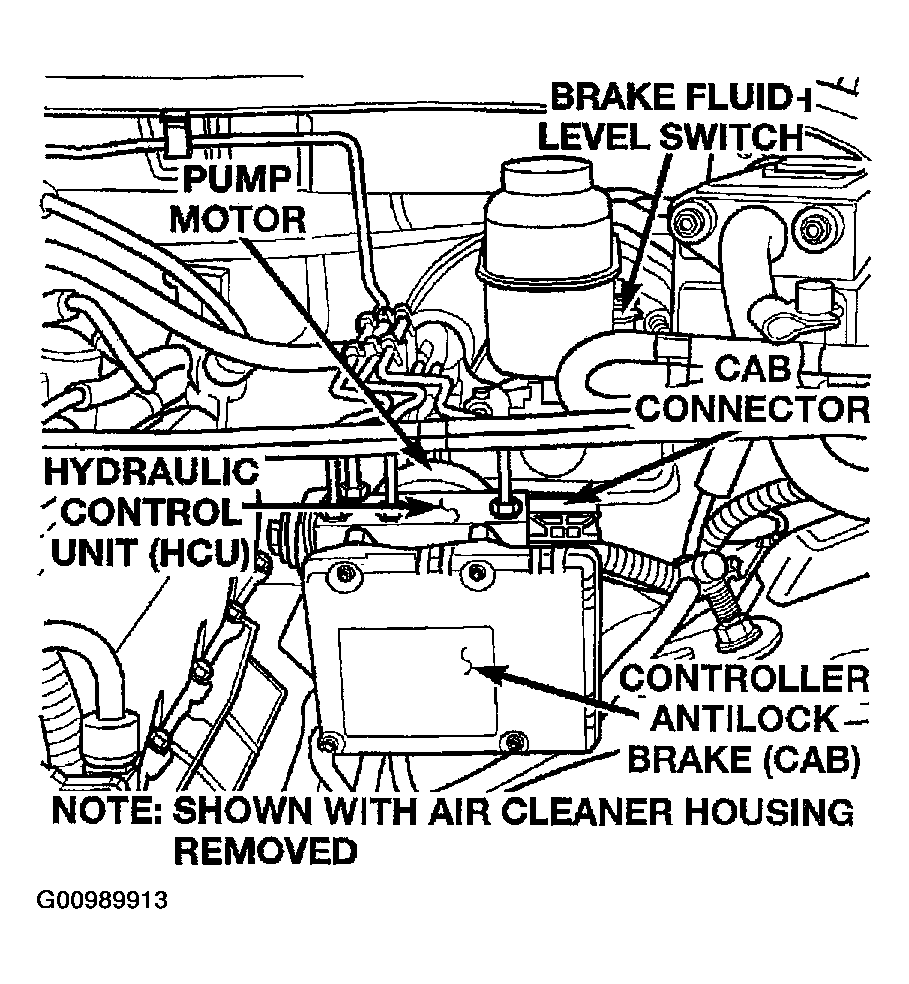

Fig 5: Locating Controller Antilock Brake Module and Hydraulic Control Unit
Courtesy of DAIMLERCHRYSLER CORP.

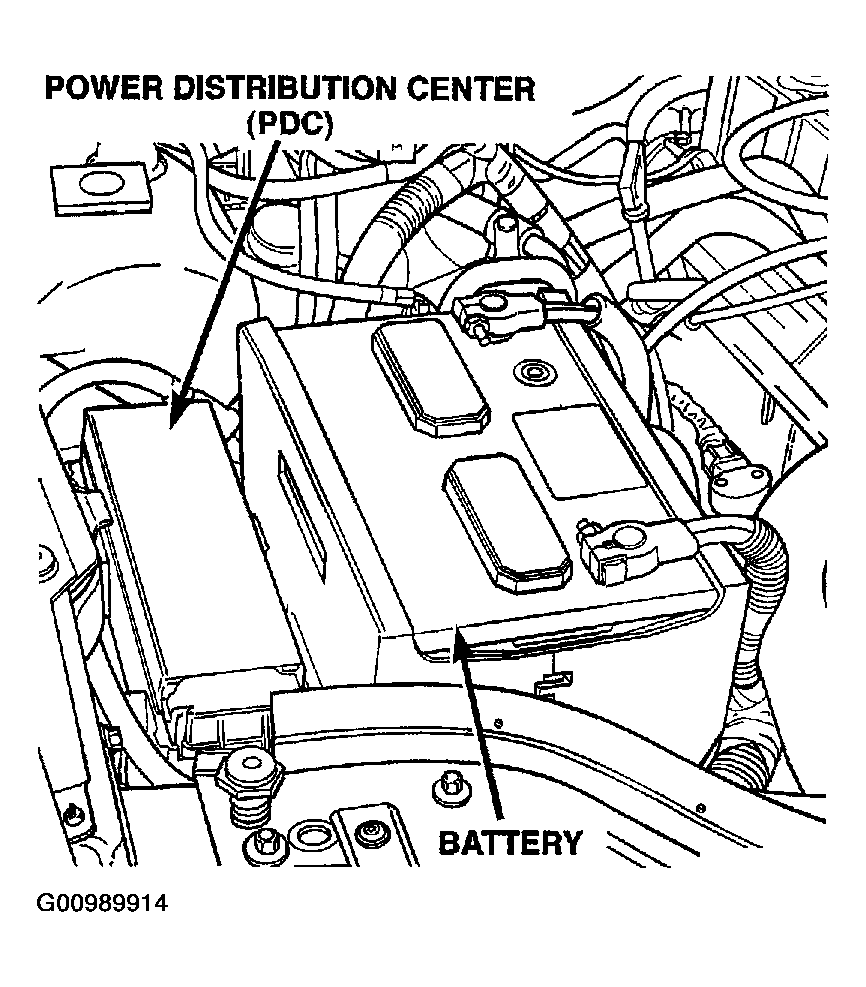

Fig 6: Locating Power Distribution Center
Courtesy of DAIMLERCHRYSLER CORP.
