Verification Tests: Powertrain

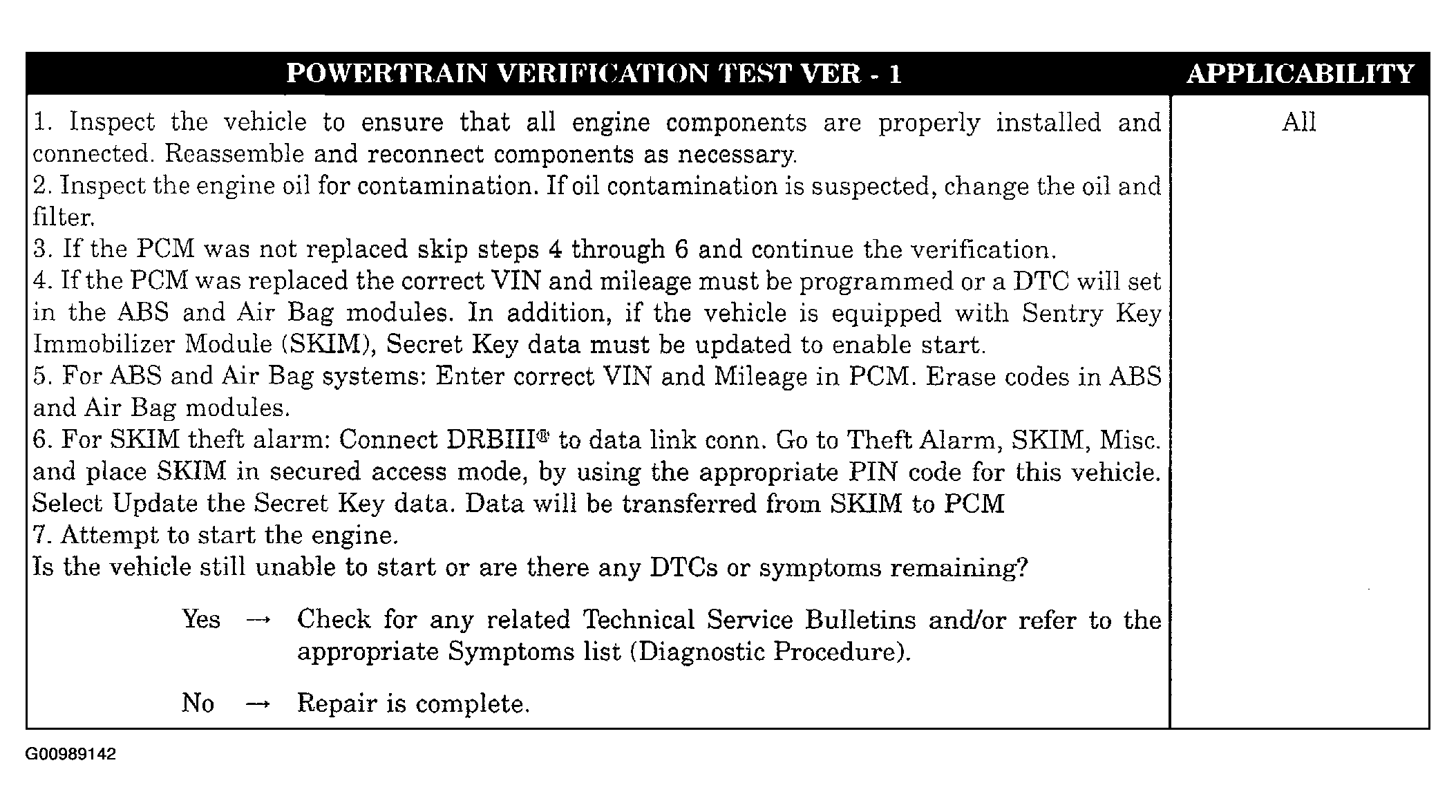

Fig 1: Identifying Powertrain Verification Test VER 1

Courtesy of DAIMLERCHRYSLER CORP.

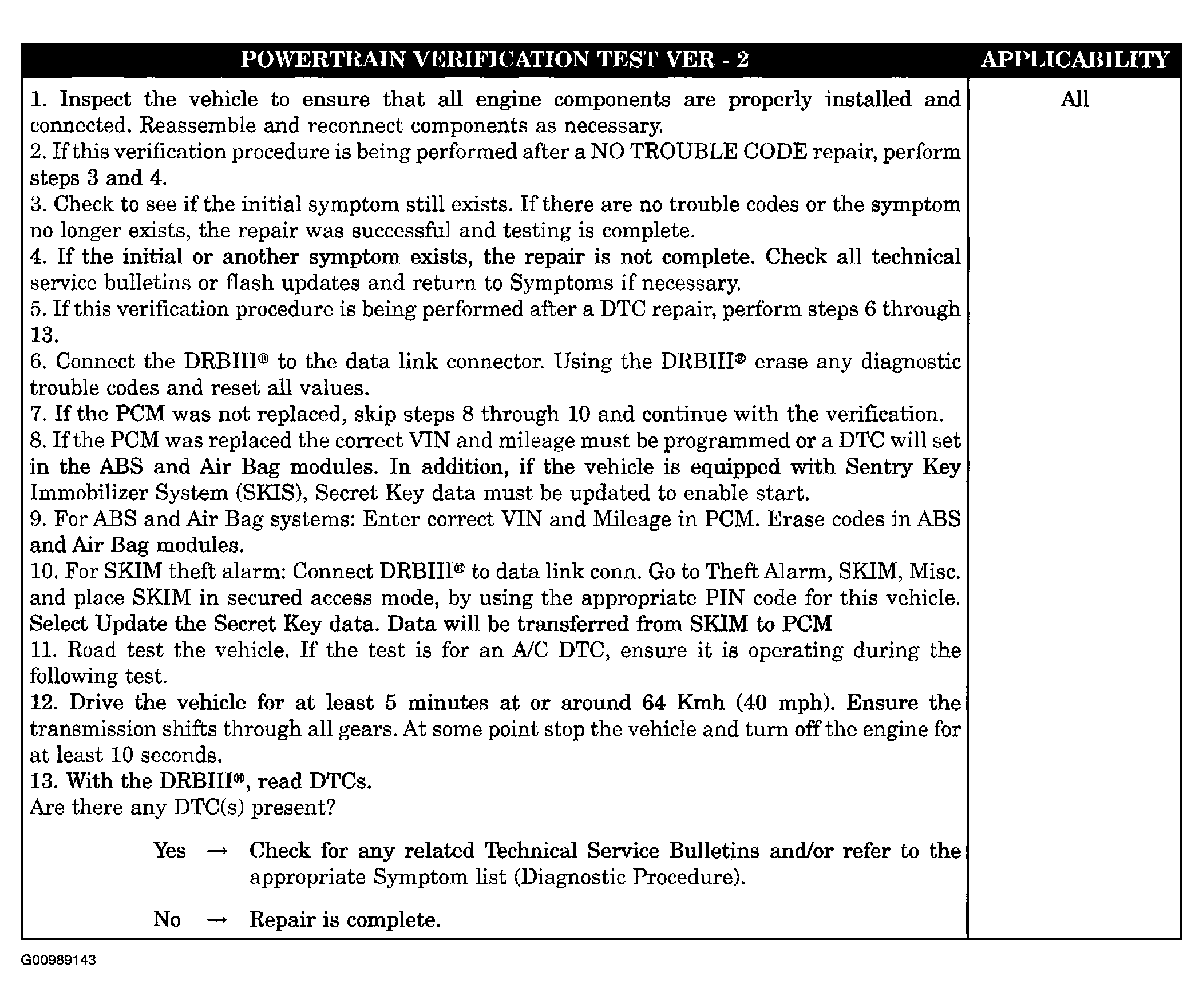

Fig 2: Identifying Powertrain Verification Test VER 2

Courtesy of DAIMLERCHRYSLER CORP.

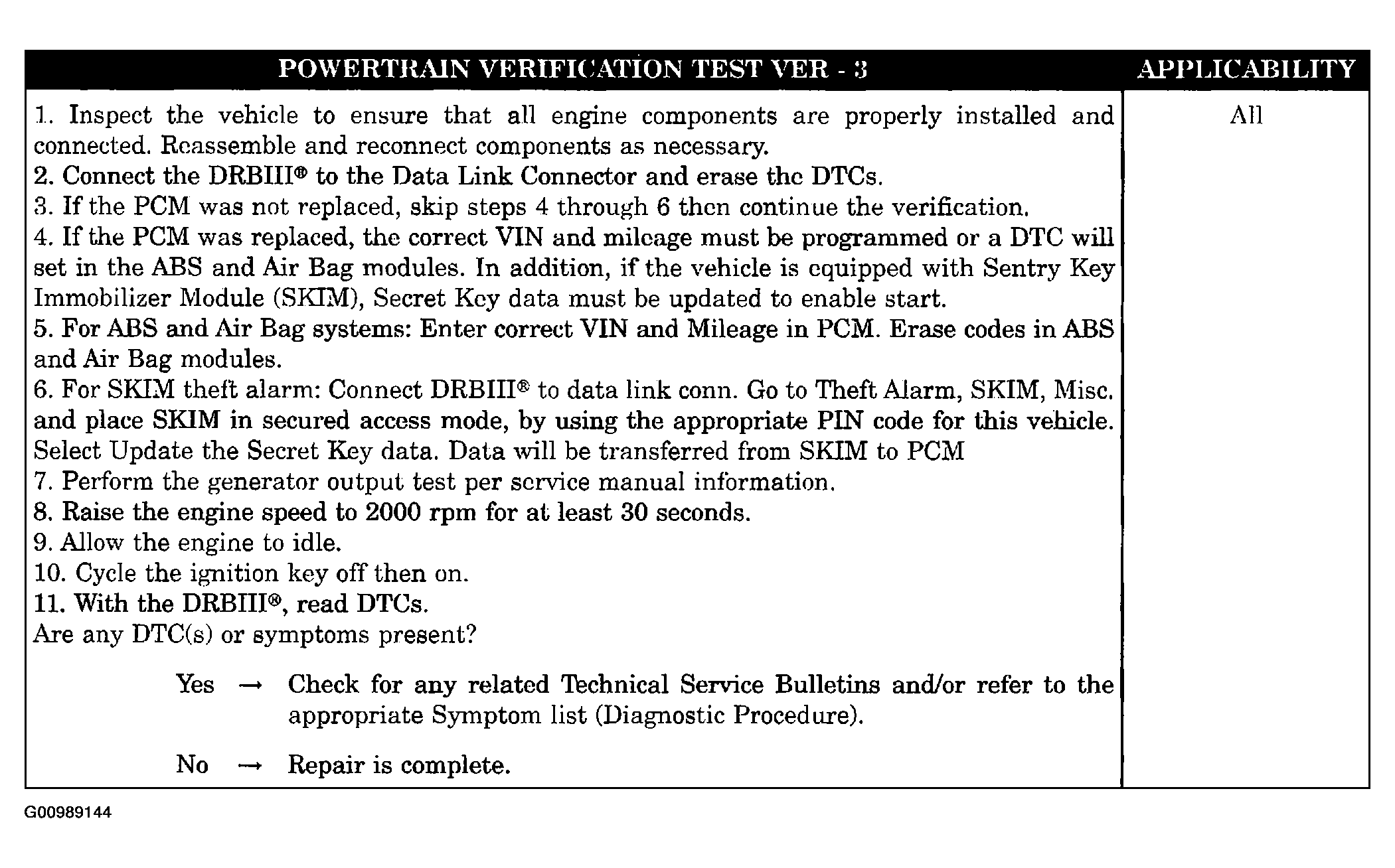

Fig 3: Identifying Powertrain Verification Test VER 3

Courtesy of DAIMLERCHRYSLER CORP.

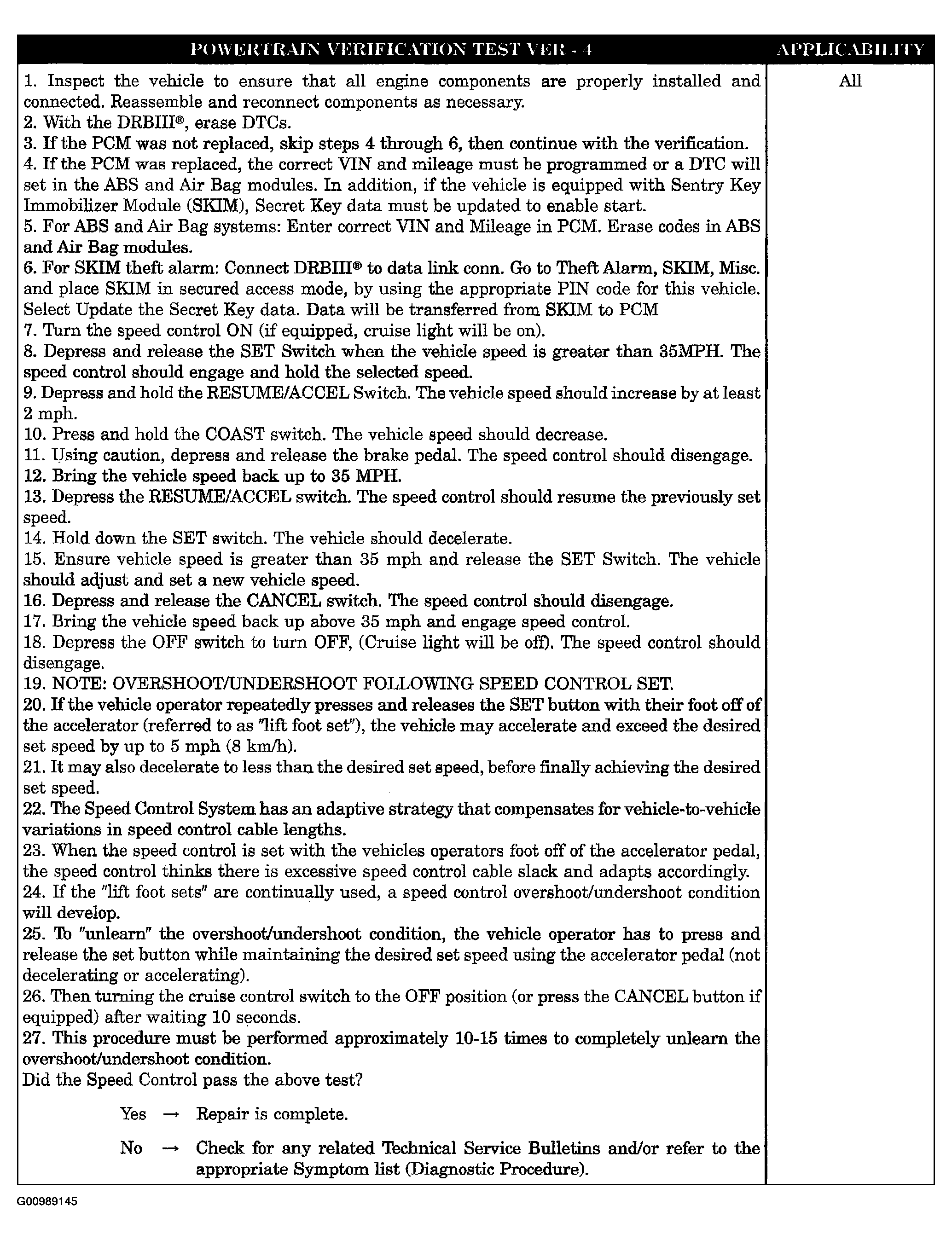

Fig 4: Identifying Powertrain Verification Test VER 4

Courtesy of DAIMLERCHRYSLER CORP.

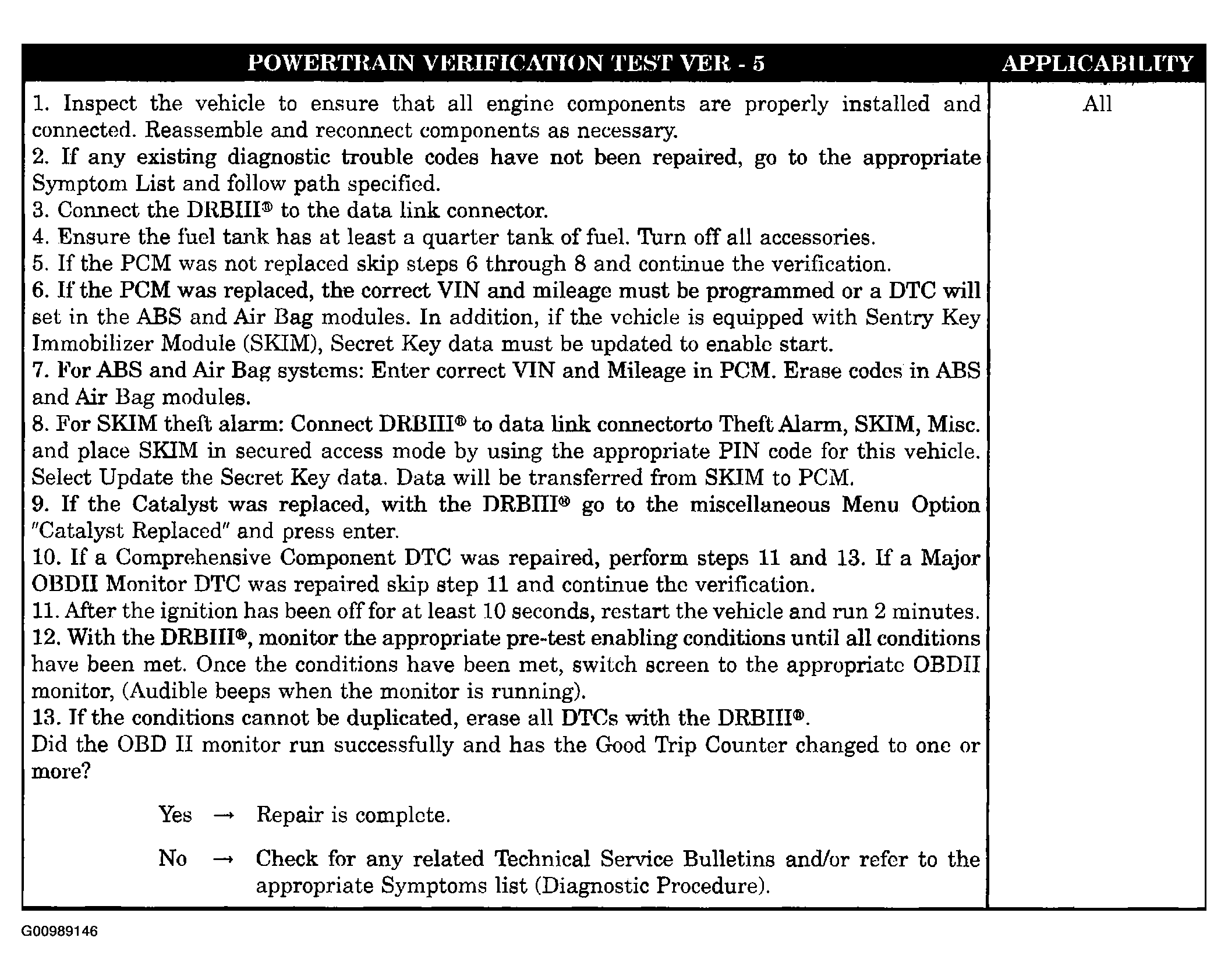

Fig 5: Identifying Powertrain Verification Test VER 5

Courtesy of DAIMLERCHRYSLER CORP.

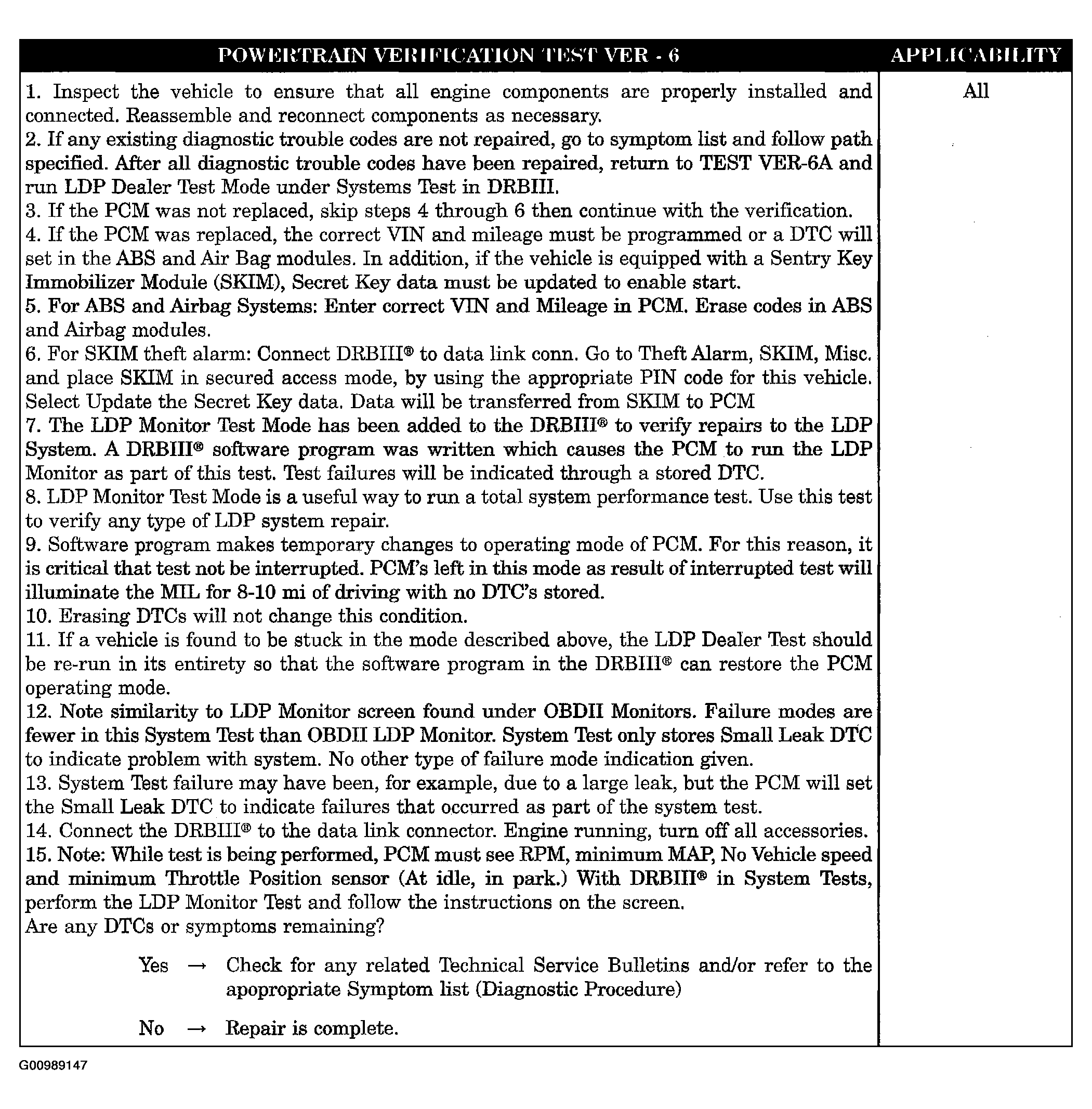

Fig 6: Identifying Powertrain Verification Test VER 6

Courtesy of DAIMLERCHRYSLER CORP.
