Ignition Switch Installation

The ignition key must be in the key cylinder for cylinder removal. The key cylinder must be removed first before removing ignition switch.

1. Before installing ignition switch, rotate the slot in the switch to the ON position (Fig 1 ).

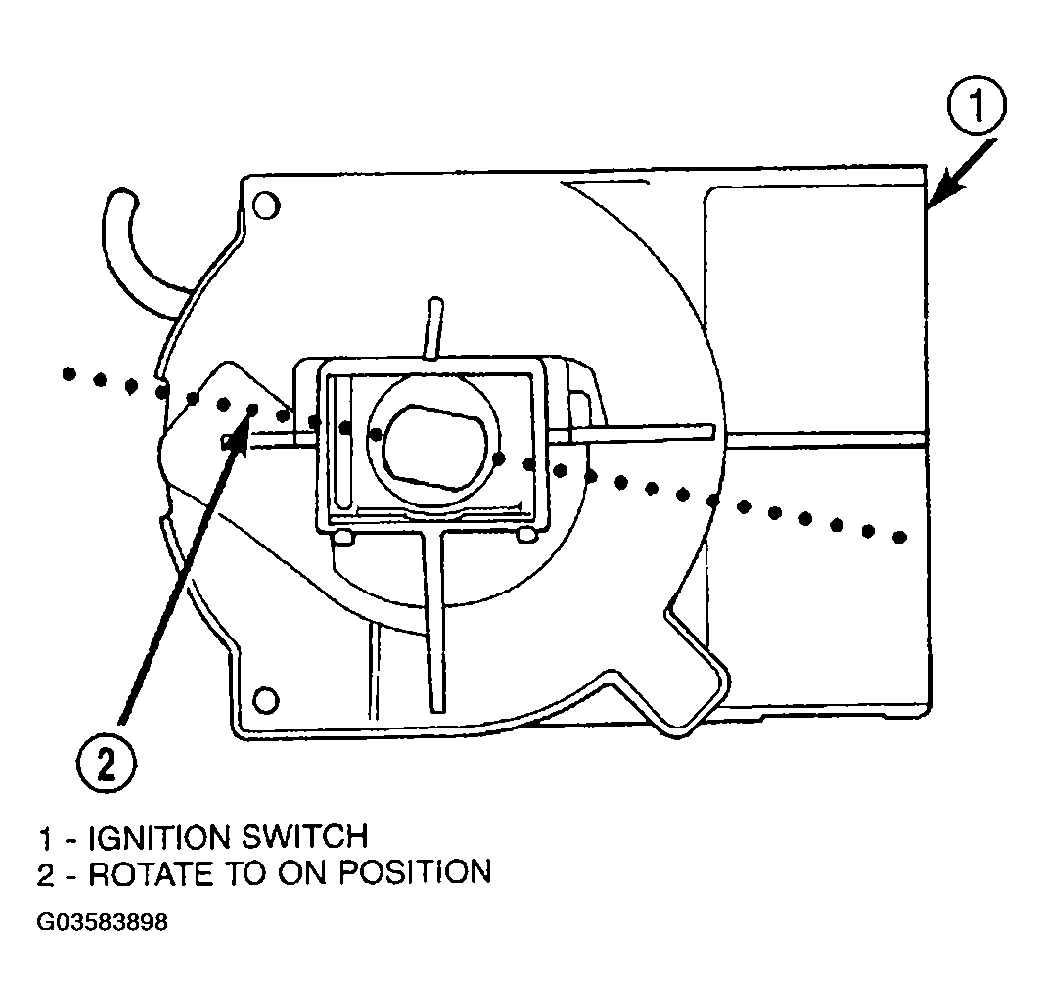

   Fig 1: Switch In ON Position

   Courtesy of DAIMLERCHRYSLER CORP.
2. Connect two electrical connectors to rear of ignition switch. Make sure that locking tabs are fully seated into wiring connectors.
3. Position switch to column and install tamper proof screw. Tighten screw to 3 N.m (26 in. lbs.).
4. Install steering column lower cover.
