Body Control Module C2 - Gray 22 Way Connector End View
Body Control Module C2 - Gray 22 Way Connector End View

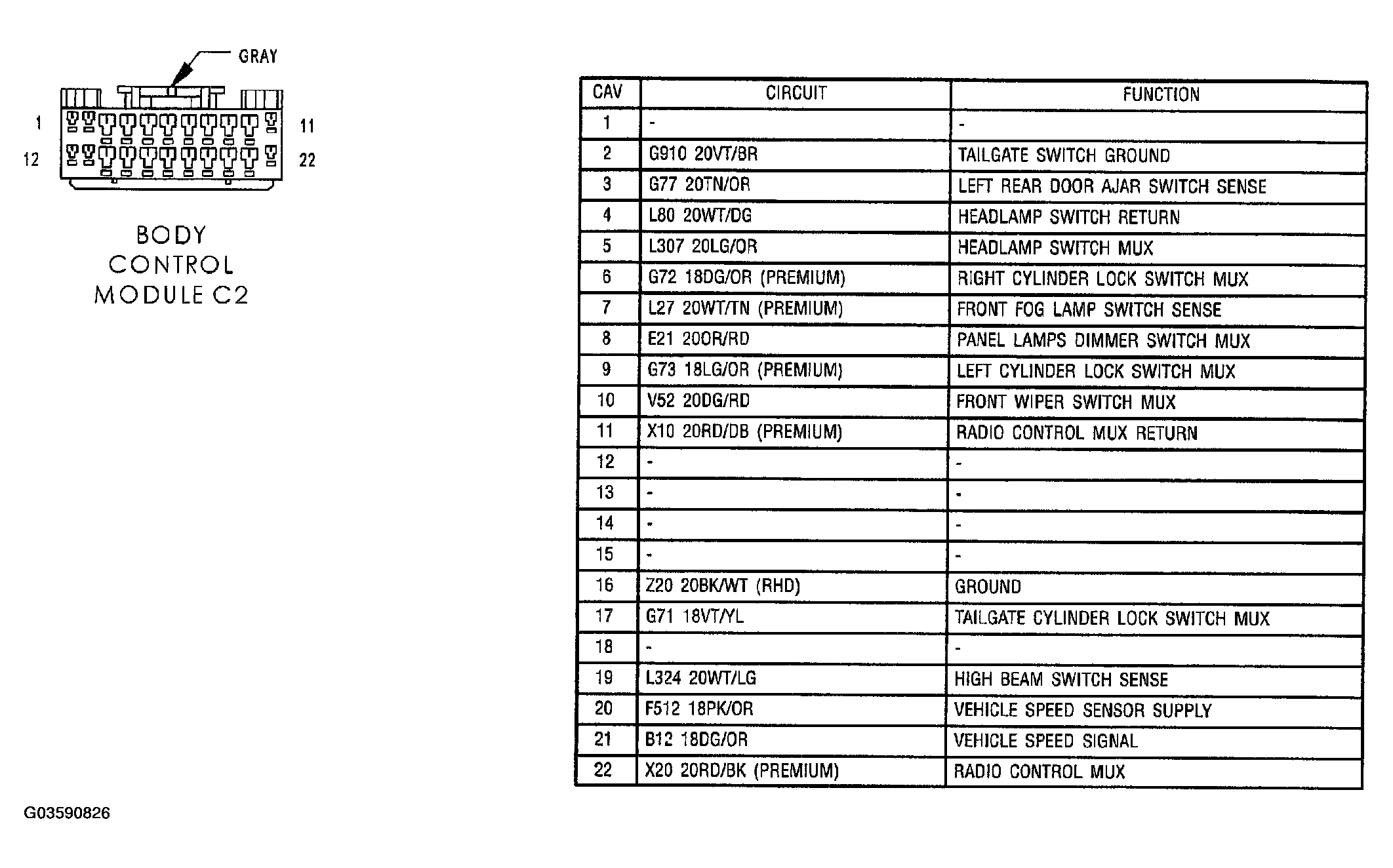

Fig 1: Body Control Module Connector End View (C2)
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
