Ignition Coil: Removal: 2.4L

  1. Disconnect electrical connector at rear of coil.
  2. Remove all secondary cables from coil.
  3. Remove 4 coil mounting bolts.

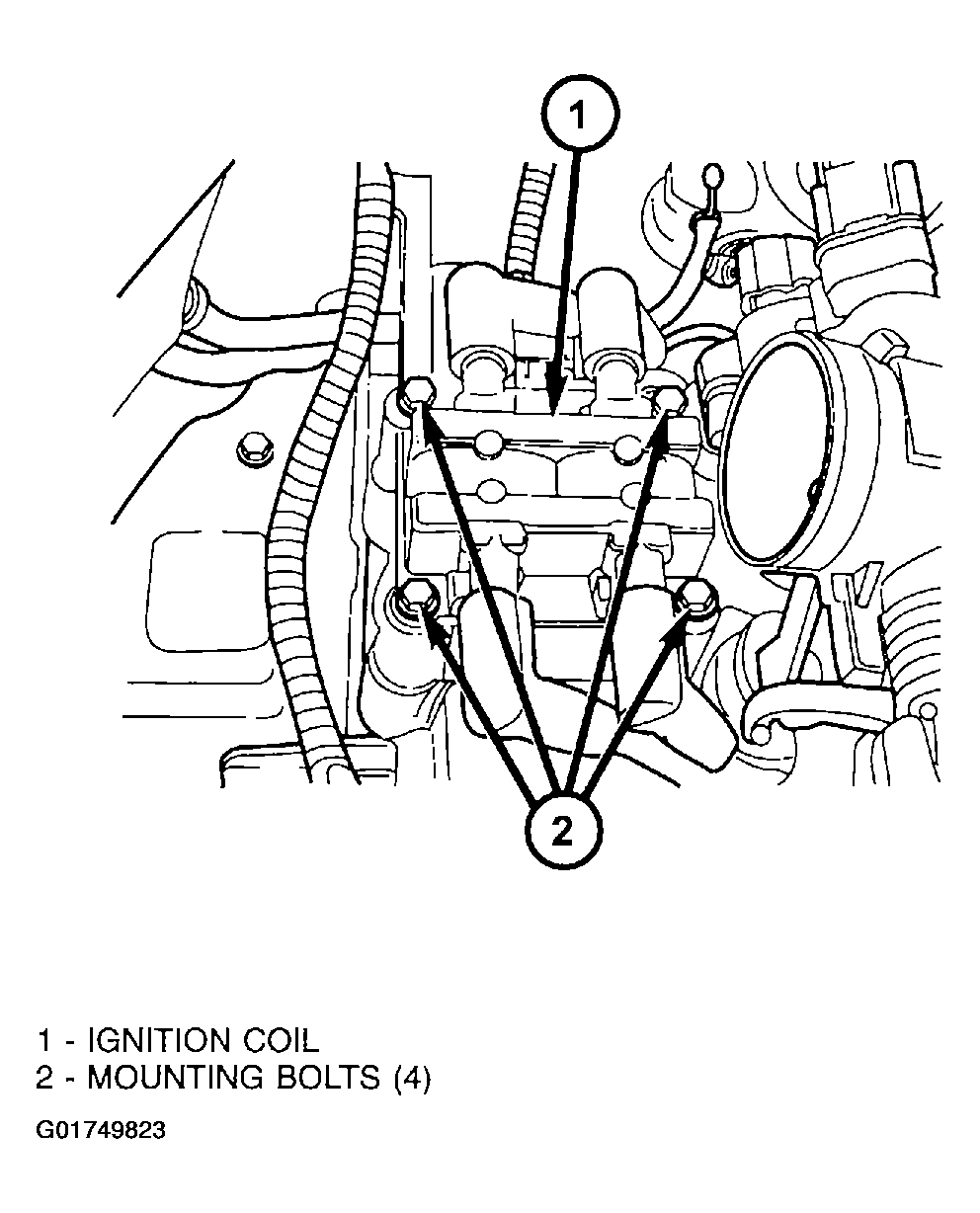

    Fig 1: Removing Ignition Coil - 2.4L
    G01749823Courtesy of DAIMLERCHRYSLER CORP.
  4. Remove coil from vehicle.
